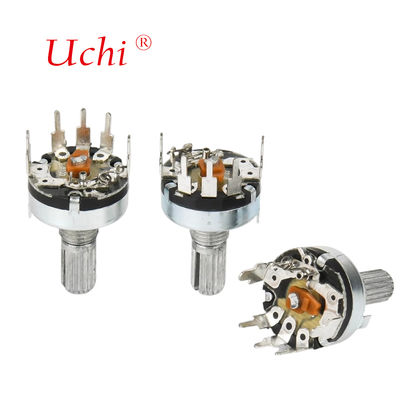

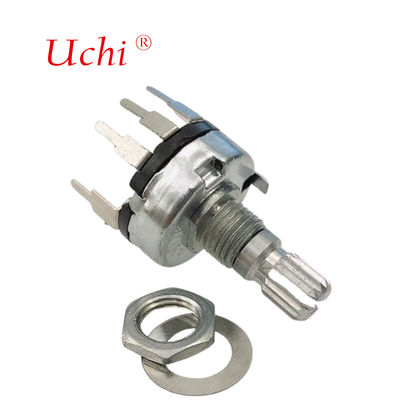

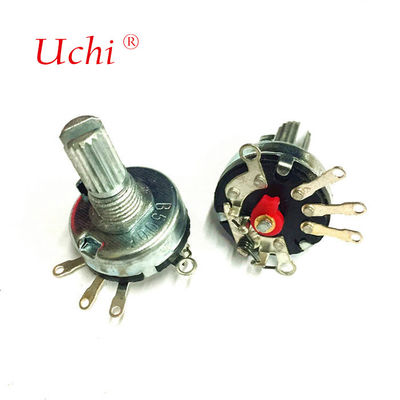

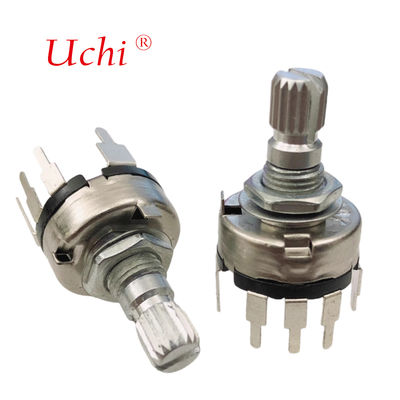

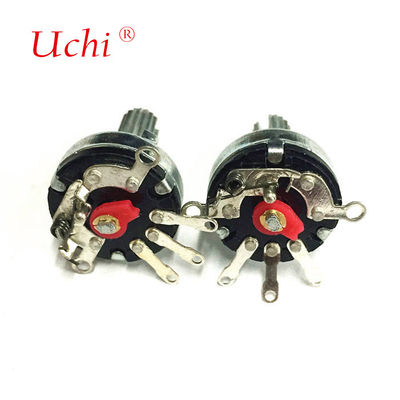

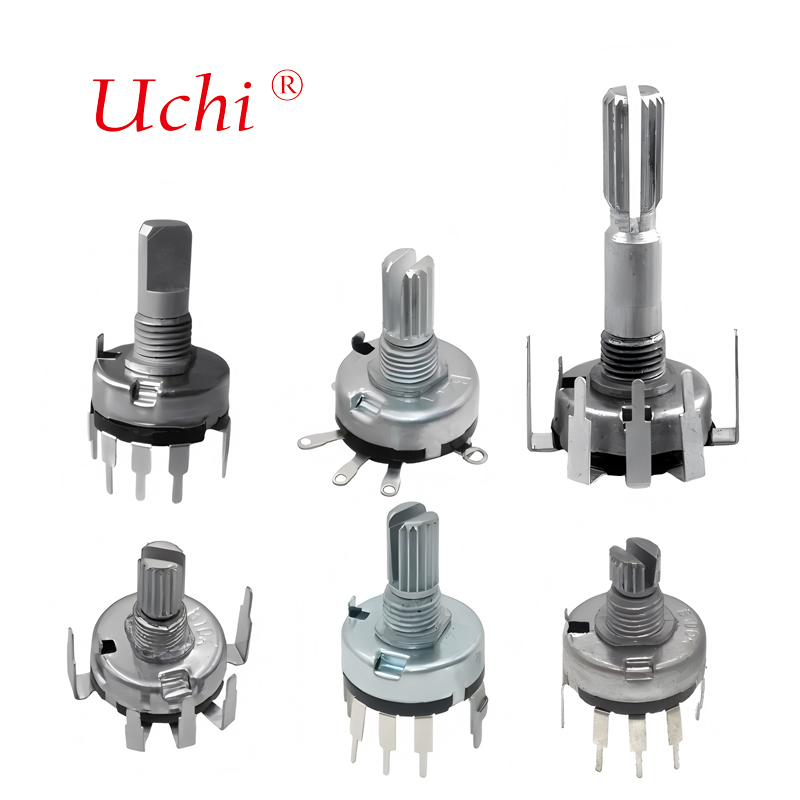

RV17 With Switch Metal Shaft 10K, 100K, 500K Carbon Film Single Group 3-pin 17mm Volume Control Rotary Potentiometer
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | RV17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Features: | Rotary Carbon Film Potentiometer | Resistance Tolerance: | ±20% |
|---|---|---|---|
| Temp Range: | -10℃~100℃ | Total RotationalAngle: | 260°±5° |
| Rotational Noise: | ≤47mV | Resistance: | 1kΩ~2MΩ |
| Rated Power: | Curve B:0.1W Other Curve B:0.05WV | Shaft Type: | Plum Blossom Shaft/D-shaped Shaft |
| Resistance Law: | A,B,C | Rotary Life: | 10,000 Cycles |
| Highlight: | 17mm volume control potentiometer with switch,carbon film rotary potentiometer 10K 100K 500K,metal shaft precision potentiometer 3-pin |
||
Product Description
RV17 With Switch Metal Shaft 10K, 100K, 500K Carbon Film Single Group 3-pin 17mm Volume Control Rotary Potentiometer
The V17 carbon film potentiometer with switch is a high-performance component offering reliability and long service life. Widely used in various electronic equipment including audio systems, communication devices, instruments, and home appliances.
Technical Specifications
- Total resistance value: 500 Ω -1M Ω
- Total resistance tolerance: ± 20%
- Impedance characteristic types: A, B, C, D
- Noise: Less than 100mV at 20 mmc
- Insulation impedance: More than 10M Ω at DC 250V
- Voltage withstand: 1 minute at AC 250V
- Residual resistance value: Term. 1-2: Less than 10 Ω Term. 2-3: Less than 10 Ω
- Synchronous error (dual connection): -40dB~0dB ± 3dB
Detailed Specifications
| ITEM | SPECIFICATION |
|---|---|
| Electrical Characteristics | |
| Temp Range | -10℃~100℃ |
| Rated Power | Curve B:0.1W Other curve B:0.05W |
| Max Operation Voltage | Curve B:AC 200V Other than B:AC 150V |
| Resistance Range | 1KΩ~2MΩ |
| Allow Desistance Tolerance | ±20% |
| Rotational Noise | ≤47mV |
| Terminal Resistance | R≥250KΩ 0.1%R max 250KΩ>R>10KΩ 20Ωmax 10KΩ≥R 100max |
| Resistance Law | A,B,C |
| Switch Contact Resistance | Less than 20mΩ |
| Dielectric | AC500V,1minute |
| Insulation resistance | More than 50MΩ at DC500V |
| Rated switching power | DC12V 1A |
| Welding tin temperature | 235°℃±5℃;≤3s |
| Mechanical Characteristics | |
| Rotational Torque | 7~40 mN.m(70~400gf.cm) |
| Total Rotational Angle | 260°±5° |
| Switch life | 10,000 times |
| Rotary life | 10,000 cycles |
| Shaft Stopper Strength | 3Kgf.cm/min |
| Push Pull Strength | 70 N |
| Switch working force/torque | 50~300gf.cm |
| Switch working angle | 30°±10° |
Product Dimensions
Applications
The RV17 carbon film potentiometer with switch is widely used in various electronic equipment including:
- Audio equipment
- Communication devices
- Instruments
- Home appliances
