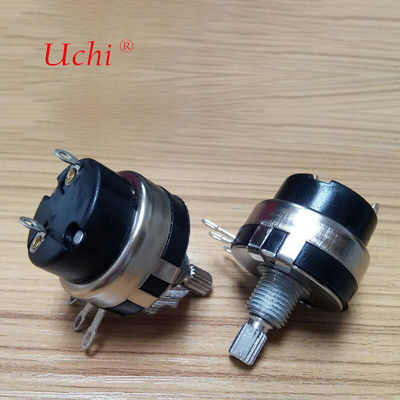

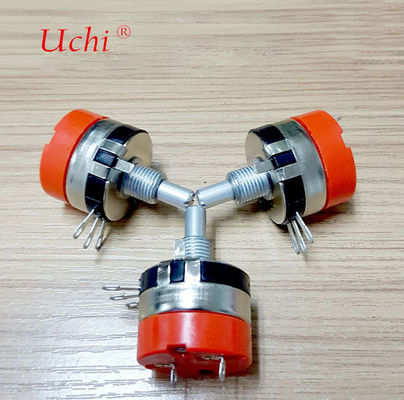

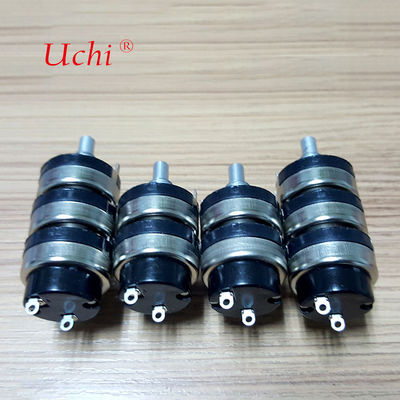

WTH118 Waterproof Improved Precision Potentiometer With Switch
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | Uchi |
| Certification: | SMC |
| Model Number: | WTH118 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T，paypal， Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
|
Detail Information |
|||
| Overall Resistance Range: | 50Ω - 2MΩ (Error ±20%) | Power Rating: | B Taper 0.5W, Others 0.25W |
|---|---|---|---|
| Residual Resistance: | Terminal 1-2/2-3 ≤20Ω MAX | Max Operation Voltage: | Linear Taper BAC 500V, Other Tapers AC 250V |
| Slider Noise (Refer To JIS): | ≤47mV MAX | Insulation Resistance: | ≥100MΩ MIN At D.C 500 Volts |
| Withstanding Voltage (Terminal-case): | 500V, AC (one Minute) | Power: | 0.05W |
| Overall Rotational Angle: | 300°±10° | Effective Electrical Travel: | 230°±3° |
| Switch Angle: | 50°±10° | Waterproof Grade: | IP67 |
| Highlight: | waterproof precision potentiometer with switch,improved precision potentiometer waterproof,potentiometer with switch waterproof |
||
Product Description
- Overall resistance range: 50Ω - 2MΩ (Error ±20%)
- Power rating: B Taper 0.5W, Others 0.25W
- Residual resistance: Terminal 1-2/2-3 ≤20Ω MAX
- Max operation voltage: Linear taper BAC 500V, other tapers AC 250V
- Slider noise (Refer to JIS): ≤47mV MAX
- Insulation resistance: ≥100MΩ MIN at D.C 500 volts
- Withstanding voltage (Terminal-case): 500V, AC (one minute)
| Taper | Test point position | V1-2/V1-3 (%) | V2-3/V1-3 (%) |
|---|---|---|---|
| A | 180° | 10-30% | |
| B | 150° | 40-60% | |
| C | *180° | 10-30% | |
| D | 150° | 2-15% | |
| W | 90±5° | 5-15% | |
| 150° | 40-60% | ||
| 210±5° | 85-95% |
- Overall rotational angle: 300°±10°
- Effective electrical travel: 230°±3°
- Switch angle: 50°±10°
- Waterproof grade: IP67
- Operation torque: 100gf.cm-200gf.cm (rotational speed 60°/1 sec)
- Rotational life: More than 100,000 cycles
- All items meet or exceed JIS C6443 standards
- Operating temperature: -10℃ to +60℃
- Storage temperature: -30℃ to +70℃
We offer multiple shipping methods including express mail service, DHL Express, UPS, and FedEx to ensure safe and efficient delivery of your products.
We are a factory offering direct factory pricing without middlemen. We provide professional technical support and accept customized OEM & ODM orders.
Samples are available upon request. Contact us to arrange sample delivery after placing your order.
We accept OEM and ODM orders with varying customization requirements. Contact our customer service for specific details regarding minimum order quantities and pricing.
Delivery times vary based on product quantity, production process, and model. We have multiple factories to handle simultaneous production and can accommodate urgent requests.
All products come with comprehensive after-sales support. Our team provides 24-hour assistance for any technical or quality issues.
