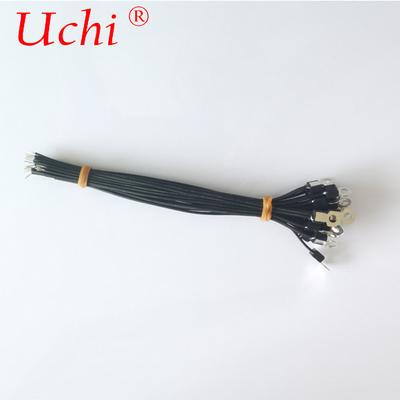

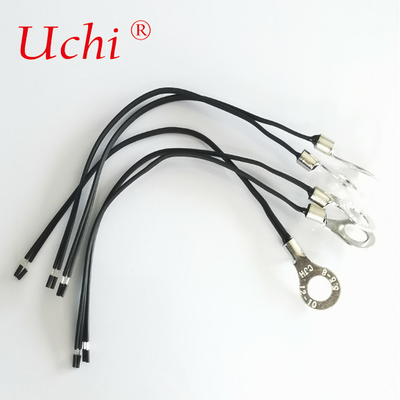

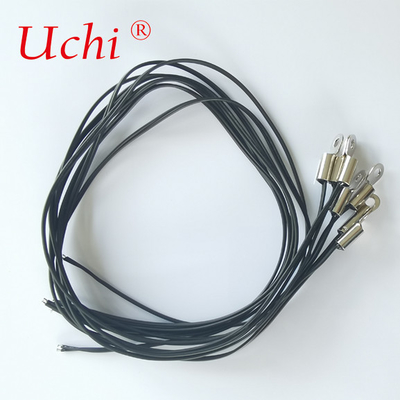

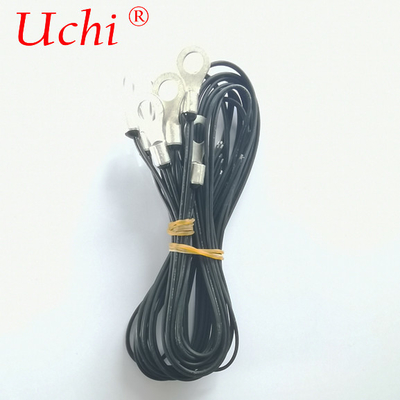

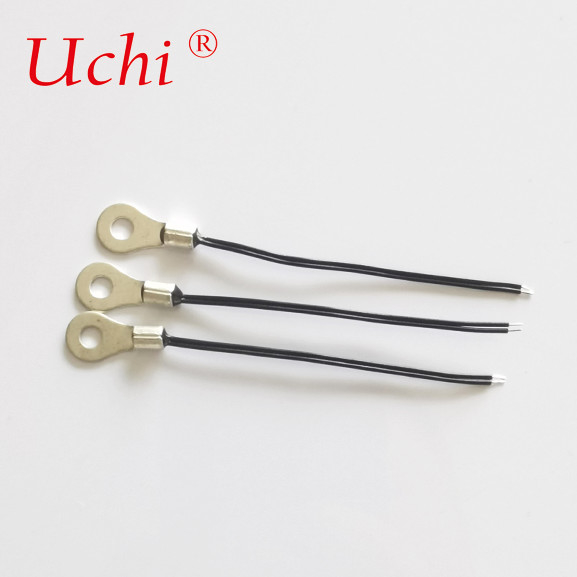

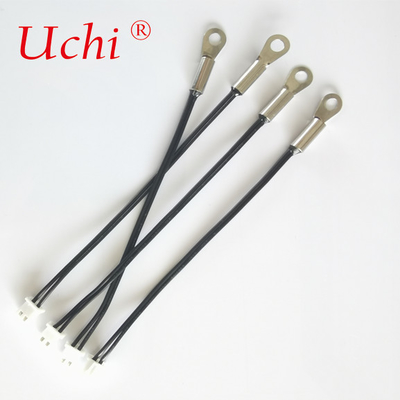

Customization O Ring Lug NTC Thermistor Surface Temperature Probes 10k 50k 100k
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | Customization Ring Lug NTC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| Handles: | Silica Gel Set | Casing: | Teflon Spaghetti Sleeving |
|---|---|---|---|
| Terminals: | Brass Tin Plated | Band: | UCHI |
| High Light: | 10k NTC Thermistor Surface Temperature Probes,100k NTC Thermistor Surface Temperature Probes,50k NTC Thermistor Surface Temperature Probes |
||
Product Description
Customization O ring lug Teminal sensor ntc 10k 50k 100k new energy thermistor temperature sensor
|
Parameters
|
|||
|
Specific Drawings & dimensions & specifications & parameters can be custom-made; feel free to contact us!
|
|||
|
Rated Resistance (25DegC)
|
0.5k, 1k, 5k, 8k, 10k, 15k, 20k, 30k, 50k, 100k, 200k, 500k,
|
||
|
B Value (25/50, 25/85)
|
3380k, 3435k, 3450k, 3360k, 3950k, 4050k, 4100k, 4200k, 4300k,
|
||
|
Operating Temperature
|
-30 ~ 125 Deg C Various
|
||
|
Withstand Voltage
|
1500V/3mA/5s
|
||
|
Rated Power
|
10mW
|
||
|
Response Time
|
3 ~ 20s
|
||
|
Material Specifications
|
|||
|
Shell/Case
|
Aluminum, Brass, Ceramic, Nickel plated copper, Stainless steel
|
||
|
Connector Type
|
TJC1255, ZH, PH, SAN, EH, SMR, SMP, XHB, JC25, TJC8, JST-XAP-02V
|
||
|
Wire / Cable
|
PVC, XL-PE, PTEF, Silicone, Silicone rubber (Single, Doubling)
|
||
Reliability Test
|
NO |
Item |
Technical requirements |
Test conditions and method |
|
5-1. |
High temp. Storage |
R/R25±3% B/B±3% No change with withstand voltage, |
150°C±5°C,1000±24H, 200°C±5°C,150±2H |
|
5-2. |
Low temp. Storage |
-40°C±5°C,500±24H |
|
|
5-3. |
Endure moisture test |
Storeinenvironment40±5°C,90%-95%RH for1000±24hrs (With reference to the IEC60068-2-3/GB2423.1 test) |
|
|
5-4. |
Temp. cycle test |
–40±2°C×30min→ 25±2°C×5min→ in 180±5°C×30min→25±2°C×5min ×5 cycles |
|
|
5-5 |
Tensile tests |
Applying 1 kg force lasts 1 min. |
|
|
5-6 |
Drop test |
Free fall into wood floor from height 1M ,3 cycle. |
Storage Method
1 In the process of storage and transportation, per stack height is not more than 4 CTN products.
2 Available with all transport method, but avoid the rain, snow of direct or indirect leaching and mechanical damage.
3 Products should be stored in the temperature of environment - 10 °C / + 40 °C, relative humidity is not more than 75%, environment should not have acid, alkali and corrosion gas or radioactive source.
4 Storage Time: 1 Year
