Li-MnO2 Button Cell Lithium Battery , 3V CR2032 Button Cell Battery
Product Details:
| Place of Origin: | DONGGUAN,GUANGDONG,CHINA |
| Brand Name: | UCHI |
| Certification: | SGS.ISO. |
| Model Number: | CR2032 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 4000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500000pcs |
|
Detail Information |
|||
| Application: | Toys, Home Appliances, Consumer Electronics, Calculator Watch Toy Laptop | Warranty: | 3years |
|---|---|---|---|
| Model Number: | CR2032 | Shape: | Button, Cylindrical |

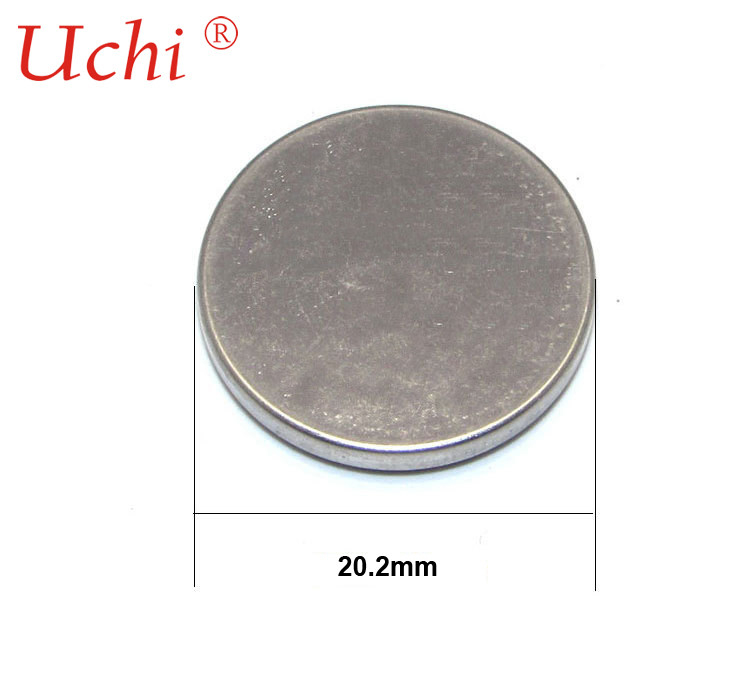

| Type: | Lithium Manganese Battery | Battery Size: | 20.2*3.8mm |
| High Light: | SGS Button Cell Lithium Battery,Lithium CR2032 Button Cell Battery,3V CR2032 Button Cell Battery |
||
Product Description
R2032 3V Li-MnO2 button cell Lithium Battery Type 3V button cell CR2032 battery
Specification sheet
| Customer | |
| Product | 3V Li-MnO2 button cell |
| Model | CR2032 |
| P/N | |
| Approval |
| Manufacturer | UCHI | Origin | Dongguan |
| Design by | ZJY | Check by | Jack Chen |
| Design date | 2019-06-04 | Version | V2.0 |
Contents
| S/N | Document | Page NO. |
| 1 | Product name and applicable range | P3 |
| 2 | Dimensions | P3 |
| 3 | Nominal specification and characteristics | P3 |
| 4 | Performance test | P4 |
| 5 | Safety test | P5 |
| 6 | Discharge characteristic | P6 |
| 7 | Material description and MSDS | P7 |
| 8 |
Environmental management and safety reports |
P7 |
| 9 | Packaging specification | P8 |
| 10 | Battery holder | P9 |
| 11 | Battery with pins | P9 |
| 12 | Safety practices and cautions | P9 |
| 13 | Handling instruction for emergency | P10 |
| 14 | Others | P10 |
1. Product name and applicable range
This specification is applicable to the following product: 3V Li-MnO2 button cell CR2032.
The applicable range of CR2032 are mainly used in: RTC clock circuit, Led products and etc.
2. Dimensions
| diameter(mm) |
20.0 (-0.2) |
| height(mm) | 3.2(-0.3) |
| weight(g) | 3.0±0.1 |
3. Nominal specification and Characteristics
| Item | technicalparameters | Conditions | |
| Nominal voltage | 3.0 V | apply to all CR batteries | |
|
Nominal capacity |
230mAh |
Continuous discharge with lo ad 15kΩ, till 2.0v end-voltag e at 20~25℃ | |
| Instantaneous short–circ uit current | ≥250mA | Time≤0.5′ | |
| open-circuitvoltage | ≥3.20V | No load test | |
| Storage temperature | 0~35C | apply to all CR batteries | |
| Operate temperature | -20-60C | apply to all CR batteries | |
| Self-discharge rate | ≤5% / year | annual mean | |
|
Test life |
Fresh cell | ≥230hrs | load 3kΩ, till 2.0v end-voltag e at 20~25℃ , humidity≤75% |
| 12 Month. | ≥220hrs | ||
|
Comments 1:the product standard on electrical chemistry system and dimension is set accordin g to IEC6008-1:2007(i .e .GB/T8897 .1-2008 Primary cell, Chapter 1, Profile) .. |
|||
4. Performance test
| Item | Test method | Standard |
|
1. dimension |
With vernier caliper(tolerance≤0.02 ㎜) test, paste on the surface of the caliper contact insulation materials, don’t short circuit. |
Diameter (㎜):20.0 (-0.2) height (㎜):3.2 (-0.3) |
| 2. open-circuit voltage | With multimeter or voltmeter |
≥3.20V |
|
3. Short-circuit current |
With multimeter or amperemeter, ,test time not more than 0.5 second, must avoid repeating test, test interval shall be more than 0.5 hours. |
≥250mA |
|
4. appearance |
visual inspection |
Clean, clear and correct mark, no rusting, no leakage |
|
5. Test capacity |
at 20~25C, humidity≤75%,with load 3kΩ ,till 2.0v end-voltage |
≥230 hrs |
|
6. vibration test |
vibration 1 hours on a vibration mac hine,with frequency is 100 to 150 ti mes/min |
stable performance |
| 7. high temperat ure test |
Store 30days at 45±2C |
No leakage |
|
8. overdischarge test |
Continuously discharge with 1K load for 5 hours while the voltage get to 2.0V |
No leakage |
| Comments 2: The dimension and performance standard is set according to IEC 60086-2:2007 (i .e GB/T8897 .2-2008, Primary cell, Chapter 2: Dimension and technical requirement) | ||
5. safety test
| Experimental project |
Project name |
Test condition |
Standard |
|
| The test of the the | A |
Altitude simulati on |
battery under the condition of pressure is less than 11.6 kPa at least 6 hours. | According to the (i . |
| expected use | B | heat Shock | Battery under the change condition from – 40 to +75 C for 12 hours,and repeated 10 cycles | According to IE/GB/T 8897.4-20 08, Primar y cell, Cha pter 4: Saf ety require ment on lit hium cell) |
|
C |
vibration |
Test the battery in accordance with the re quirements of standard sine wave of vibrat ion.In three perpendicular fixed bearing for 12 cycles each azimuth, the cycle time of each bearing a total of 3 hours. |
||
|
D |
shock |
Tested the battery in three perpendicular fi xed position of each azimuth through three times, a total of 18 times. |
||
|
The expe cted error use test |
E |
short circuit |
When the battery in 55 C environment an d reaching the temperature balance.The tot al resistance should be less than 0.1 / Ω for short circuit to the shell temperature dr opped to 55 C for at least another short circuit after 1 hour.Continue to observe 6 hours. | |
|
F |
strike | Put a 9.1 ㎏ weight object free fall to stri ke the battery on a steel rod (diameter 1 5.8mm) from 610 + 25 ㎜ altitude | ||
|
G |
extrusion |
Make pressure on the battery, with the initi al speed until 1.5 ㎝ / SEC,and power to 13 kn,then release pressure immediately | ||
|
H |
forced discharg e |
Connect the battery with 12 v DC power s upply series,make the battery orced discha rged after the discharge current reached th e maximum | ||
|
I |
abnormally cha rge | Connect the battery with a DC power sup ply with the cells reversed, withstand 3C(r egulated by manufacturer) charging current | ||
|
J |
naturaldrop |
The battery from 1m and drop to concrete surface,continue 6 times, placed observati on in an hour. |
||
|
K |
hightemperatur e |
put the battery in oven, control the temper ature rose to 130 C at a speed of 5 C / min, and heat preservation 10 mins. |
||
|
L |
improper install ation | A reverse connection with three battery.Cir cuit resistance is less than 0.1 Ω . | ||
|
M |
overdischarge |
discharge a battery with 50% depth and in series connection with three qualifie d batteries. |
| Comments 3 :The safety performance standard is set according to IEC 60086-4:2007(i .e GB/ T8897 .4-2008, Primary cell, Chapter 4: Safety requirement on lithium cell) |
6. Discharge characteristic
7. Material description and MSDS
| ITEM | ELEMENT |
|
Anode |
Manganese Dioxide Powder |
| Colloid Graphite Powder | |
| Cathode | Lithium slice |
| Ethylene Glycol Dimethyl Ether |
|
Electrolyte |
Propylene Carbonate |
| Lithium Perchloride | |
| Rind | Stainless steel shell |
| others | Fiberglass Septum,Acetylene Black |
Attchment 1 :LIDEV CR batteries MSDS
8. Environmental management and safety reports
This product comply with the EU RoHS directive and international/national related la ws and regulations, has passed RoHS testing from SGS,and also pass CE and UL safety test.
Attchment 2 :CR batteries ROHS test report .
Attchment 3 : CE and UL certification .
9. Packaging specification
|
PAR T N AME |
3V Li-MnO2 but ton cell |
MODEL |
CR2032 |
|||
| 1. packing diagram |
|
|||||
|
|
|||||
|
|
|
|||||
|
2.packing SOP:
1)20PCS batteries in a tray. 2)400PCS in a hyaline PE bag. 3).10 bags(4000pcs) in a carton. 4). 3.carton packing details. |
||||||
| Unit weight:3g /PC | Quantity :4000PCS | |||||
|
Size: 34.5*28.5*21.0 cm ；； |
G.W.: 14.8 KG/Ctn |
|||||
10. Battery holder
Please download the . specification of battery holder on our
website:www.uchidg.com
11. Battery with pins
We supply the battery with tin-plated solder pins ,we can produce kinds of pins acc
ording to your design,please download the drawing of tagged battery with pins on o
ur website: http://www.uchidg.com
12. Cautions
1),Read the instructions on your device before installing batteries. Only use the size and type of battery specified in the instructions.
2),Keep the contact point or surface clean .Check the contact point or surface to pr event the short circuit of the battery
3),Insert the batteries properly. Follow the symbols showing the correct way to posi tion the positive (+) and negative (-) ends of the batteries.
4),Don’t mix old and new batteries, or mix different types or makes of batteries. 5),Don’t heat,charge,crush, puncture, or otherwise damage batteries, This can result in leakage or rupture.
6),Don’t dispose of batteries in a fire — they may leak or rupture
7),Don’t dispose of batteries in water.
8),Don’t stack batteries.
9),Don’t disassemble the battery.
10),Keep in a dry and cool place. Storage at place with high temperature( over +6 0’C )or low temperature( under -20’C) or place with humidity over 75% will lead to the capacity loss , derated electric performance and also safety problem.
11),Keep away from the strong acid, alkali, oxide, and other corrosive materials. 12),Keep batteries out of reach of children.
13),Pay attention to the expire date of the battery.
14),Do not dispose of used battery in natural environment ,like river ,lake, sea and land .Do not bury the used in battery the soil .
13. Handling instruction for emergency
1),If short circuit, disconnect the wire or other conductor with the battery
2),If installed battery with wrong direction, take out battery and follow the symbols s howing the correct way to position the positive (+) and negative (-) ends of the batt eries.
3),If your skin get contact with the electrolyte, wash with water immediately.
4),If bare batteries stacked (especially with very large quantity), which may generat e heat, or even explosion, please separate them immediately.
5),If swallowed, contact a physician immediately.
6),If fire or explosion happened, cover them with sand or soil to put out the fire . Dry powder fire extinguisher can be used to put out the fire. Do not use water . 7),Avoid inhaling the irritative gas, which generated by the fire or explosion of batte
ry .Clothes, towel or cotton material can be used to prevent inhaling, wet clothes or towel will be better. If inhaled the irritative gas ,please contact a physician.
14. Others
With product technology updates, the specification will be updated, please visit our w ebsite for the latest information, or contact with us to get the latest version of the s
pecification.
