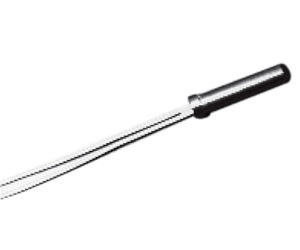

Corrosion-Resistant Stainless Steel Housing NTC Temperature Sensor / Oven Sensor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | thermocouple temperature sensor,ntc probe temperature sensor |
||
|---|---|---|---|
Corrosion-Resistant Stainless Steel Housing NTC Temperature Sensor / Oven Sensor
Quick Detail:
- Continuous operation up to 200°C, excursions to 220°C
- Insulation resistance >100M½ @ 500V d.c.
- Accurate temperature measurement
- Corrosion-resistant stainless steel housing
- Available using any device in the Thermometrics standard DK range
- Typical applications include domestic ovens and combination microwave ovens
Description:
UCHI Glass-encapsulated thermistor housed in a stainless steel probe body with PTFE leadout wires, terminated with a connector assembly.
Applications:
Microwave Oven
Specifications:
| mperature Range | 14°F to 392°F (-10°C to 200°C) |
|---|---|
| Insulation Resistance | >100 MΩ at 500 VDC |
| Wire Conductors | Nickel-plated copper 7 mm x 0.1 mm diameter or approximately 28 AWG |
| Wire Insulation | PTFE, white |
| Connector | Lumberg 2.5MBC2 (or equivalent) |
| Probe Material | 303 stainless steel |
| Resistance | Temperature characteristics, refer to DK data sheet |
| Options |
Other resistance—temperature characteristics
|
| Coding |
Resistance/tolerance are specified in the product code (e.g. JBF104R2):
|
Competitive Advantage:
- Factory supply directly
- Completed certificates such as UL,VDE,SGS,etc and high quality available
- Quick delivery
- Best after-sales services
- OEM & ODM available
