Custom Waterproof NTC Temperature Sensor Assembles NTC-103F396-1500CM
Product Details:
Place of Origin: | Dongguan,Guangdong,China |
Brand Name: | UCHI |
Certification: | ISO,ROHS |
Model Number: | NTC-103F396-1500CM |
Payment & Shipping Terms:
Minimum Order Quantity: | 1000PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Bulk |
Delivery Time: | 7 workdays |
Payment Terms: | T/T,Paypal,Western Union |
Supply Ability: | 50000000pcs/month |
Detail Information |
|||
Highlight: | thermocouple temperature sensor,high precision temperature sensor |
---|
Product Description

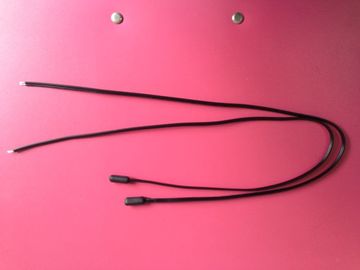

Custom Waterproof NTC Temperature Sensor Assembles NTC-103F396-1500CM
Specifications
1. Electronics specifications
R25: 10K Ohm +/-1%
B 25/85 : 3960k+/-1%
Operating Temperature : -20~130degree
Dissipation constance : >= 2.5mW/C
Insulation resistance : DC500V , >=100MOHM
Dielectric strength : AC750V ,1min
Thermal time constant : in stirred water , 90% response <=15sec MAX
2. Overall dimensions
NO | ITEM | SPECIFICATION | MATERIAL |
1 | Thermistor | 10KOhm+/-1% | Chip thermistor |
2 | Probe | TPE dia5x20(black color) | |
3 | Cable | AWG#24 TPE jacket wire 105deg(black) | |
4 | Tube | Heatshrink(white color) | |
5 | Stripped | tin plated |
3. Environment Test
ITEM | CONDITIONS | SPEC | SPEC | |
3-1 | High temperature storage | 125deg(AIR) 1000Hrs |
△R25 △B25/85 |
+/-1%<3% +/-1%<2% |
3-2 | Low temperature storage | -40deg(AIR) 1000Hrs |
△R25 △B25/85 |
+/-1%<3% +/-1%<2% |
3-3 | High humidity storage | 40deg/95%/240Hrs |
△R25 △B25/85 |
+/-1%<3% +/-1%<2% |
3-4 | Thermal shock | -40deg~125deg/5 cycles |
△R25 △B25/85 |
+/-1%<3% +/-1%<2% |
4. Inspection conditions
4-1 Sampling method : Apply to MIL-STD-05D
4-2 Level : Level 1 , AQL 1%
4-3 Check point and method
Check point | Test method | Grade |
Appearance and dimension | Refer to 5-2 | Important |
Electrical characteristics | Refer to 5-3 | Very important |
Mechanical characteristics | Refer to 5-4 | Very important |
Environment test | Refer to 5-5 | Very important |
* Follow the special specification if another check point required .
