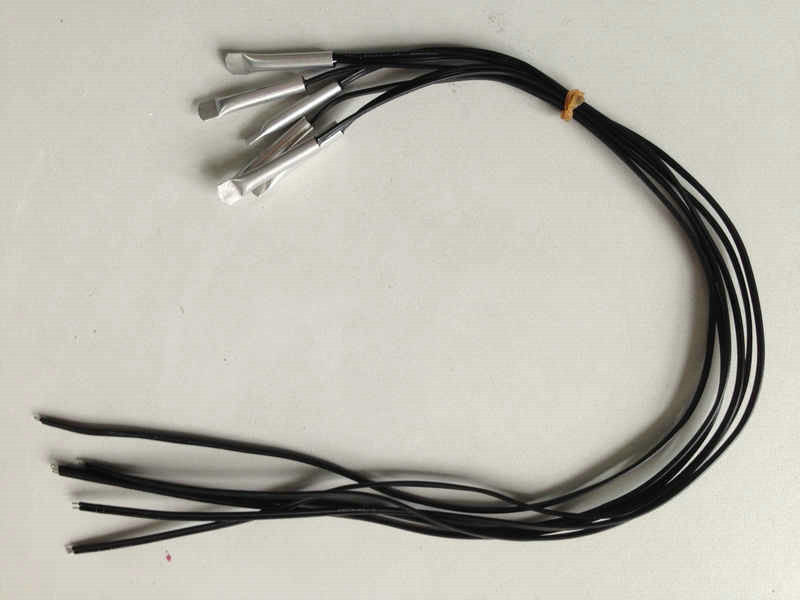

A1050 Aluminum Head 5 % 40cm NTC Temperature Sensor 2.2k 3950 24AWG



Quick Detail:



Absolute accuracy ± 0.7 °C

Linear output within 0.2 °C

Resolution better then 0.005 °C

Duty Cycle output

Calibrated on chip

TTL, CMOS compatible

Temperature range 175 °C (-45 to +130 °C)

Directly connectable to data input of microprocessor

Easy multiplexing of multiple sensors





Description:



The temperature sensor is a sophisticated full silicon temperature sensor with a

digital output. The one wire output (duty-cycle modulated) can be directly connected to all

kinds of micro-controllers without the need of A/D conversion. The temperature range is –45

°C to 150 °C. The high resolution (< 0.005 °C) makes the sensor useful for high precision

applications. The sensor is available in various housings like T018, T092, T0220 and for high

volume production in SOIC. Special housing can be manufactured on request.





Applications:



Heater systems

Measuring instruments

Washing machines

Overheating protection

Appliances





Specifications:



Drawing

A1050 Aluminum Head 5 % 40cm NTC Temperature Sensor 2.2k 3950 24AWG 0



5

EPOXY FILLING

NZ-1

-

4

AL CAP

AL 35*5

1

3

THERMISTOR

Chip 2.2K-3950  ±5%

1

2

EPOXY FILLING

NZ-1

-

1

LEAD WIRE

UL2651 AWG24# TS BLACK

420mm

No.

Material Name

Material Description

Quantity



Techinical Parameters















Item

Code

Cotent

Parameter

Tolerence

1

Thermistor

R25

Impedance value of the no-load condition when 25℃± 0.1℃

2.2kΩ

±5%





2

B Value

B25/50

resistance changing was decided by temperature changing

3950 Kelvin

±2%





3

Heat conductivity coefficient

τ

Resistance changing is 63.2% from 25℃ to 50℃ Stir the water

<15s



4

Power factor

δ

Electrical work that make temperature of temperature sensor change 1 ℃

0.7mW/℃



5

Insulation and voltage resistance



AC1500V(1mA) /1Min

Normal



6

Insulation resistance



Megger DC500V

>100MΩ



7

Temperature Range

Tw



-20~105℃

















Reliability test















Item

Condition

ΔR25

ΔB25/50

1

Thermostability

100℃air,120hrs→Room temperature air,1hr.

<±10%

<±3%

2

Low temperature resistant

-30℃air,120hrs→Room temperature air,1hr

<±10%

<±3%

3

Moisture-proof

45℃×RH95±5%,120hrs→Room temperature air,1hr.

<±10%

<±3%

4

Temperature cycle test

-20℃*30min→Room temperature*10min→80℃ in water*30min→room temperature*10min cycle 10 times

<±10%

<±3%















.Mechanical robustness testing















Item

Conditions

Situation after test

1

Tensile

Applying 3kgF/60SEC force on connectorwire bobbin

Normal appearance

2

Bend

 Fixed sensor, bend wire 90degree on horizontal,reset 10 times.

Electrical property is normal

3

Free Fall

 Free fall to a board with 30mm thickness from height 1m ,must 3 times

















Inpection Standard: GB2828-2003













Test Item

Criterion

Test Level

JOA Score



 Insulation resistance

DC500V/100ΜΩ↑

N=5

C=0



Withstand voltage

AC1500V/1min

N=5

C=0



Visual inspection

Zero defect

S=3

C=0



Extension and strength

3kg.f↑

N=5

C=0



Product length

Refer to Drawing

N=5

C=0



Tube length

Refer to Drawing

N=5

C=0



Resistance RT1

Refer to Drawing

S=3

C=0



Resistance RT2

Refer to Drawing

N=5

C=0



BT1/T2 value

Refer to Drawing

N=5

C=0





Competitive Advantage:



  1. Factory supply directly
  2. Completed certificates such as UL,VDE,SGS,etc and high quality available
  3.  Quick delivery
  4. Best after-sales services
  5. OEM & ODM available
