50/60Hz Power Film Capacitor Oil Immersed Aluminum Shell And Explosion Proof Structure
Product Details:
| Place of Origin: | Dongguan,Guangdong,China |
| Brand Name: | UCHI |
| Certification: | ROHS,ISO9001,etc. |
| Model Number: | FILM CAPACITOR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 workdays |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000pcs per week |
|
Detail Information |
|||
| Temperarure: | -40℃~85℃ | Capacitance Tolerance: | ±5% |
|---|---|---|---|
| Dissipation Factor: | ≤0.002(50Hz ) | Rated Frequency: | 50/60Hz |
| Lif Class: | B,C | Brand: | UCHI |
| High Light: | 60Hz Power Film Capacitor,Power Film Capacitor Oil Immersed,Power Film Capacitor Explosion Proof |
||
Product Description

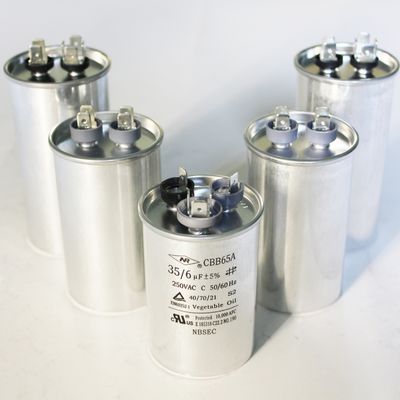

Film Capacitor Oil-Immersed Aluminum Shell And Explosion-Proof Stucture
Application:
Products are suitable for home appliances,such as air-conditioner,air conditioners,freezers and washing.
Characteristics:
1. It selects high-quality polypropylene coated film as the medium
2. uses the advanced zinc-aluminum coating process
3. Oil-immersed aluminum shell and explosion-proof stucture.
4. Products have the male tabs or wire leads and the structures,such as single structure and combined stucture.
5. Products are with characteristics of high temperature,low loss and long life,etc.
6. It had passed the CQC,VDE.
Technical Specification:
| Configuration | Aluminum Shell,Oil Filled,Protective Device |
| Temperarure | -40℃~85℃ |
| Capacitance Tolerance | ±5% |
| Dissipation Factor | ≤0.002(50Hz ) |
| Testing Voltage |
T-T:2.0Un 2s T-C:2000VAC 2s |
| Insulation Resistance |
T-T:≥3000mΩ/uF T-C:≥1000mΩ(20℃) |
| Rated Frequency | 50/60Hz |
| Lif Class | B,C |
