CBB61 Starting capacitor Hoist fan fume motor air conditioner 450V1.2/1.5/1.8/2/3/4UF

CBB61 Starting capacitor Hoist fan fume motor air conditioner 450V1.2/1.5/1.8/2/3/4UF

Product Details:

Place of Origin: Dongguan,Guangdong,China
Brand Name: UCHI
Certification: ROHS,ISO9001,etc.
Model Number: CBB61 3uF/450VAC

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7-10 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000000pcs per week
Get Best Price Contact Now

Detail Information

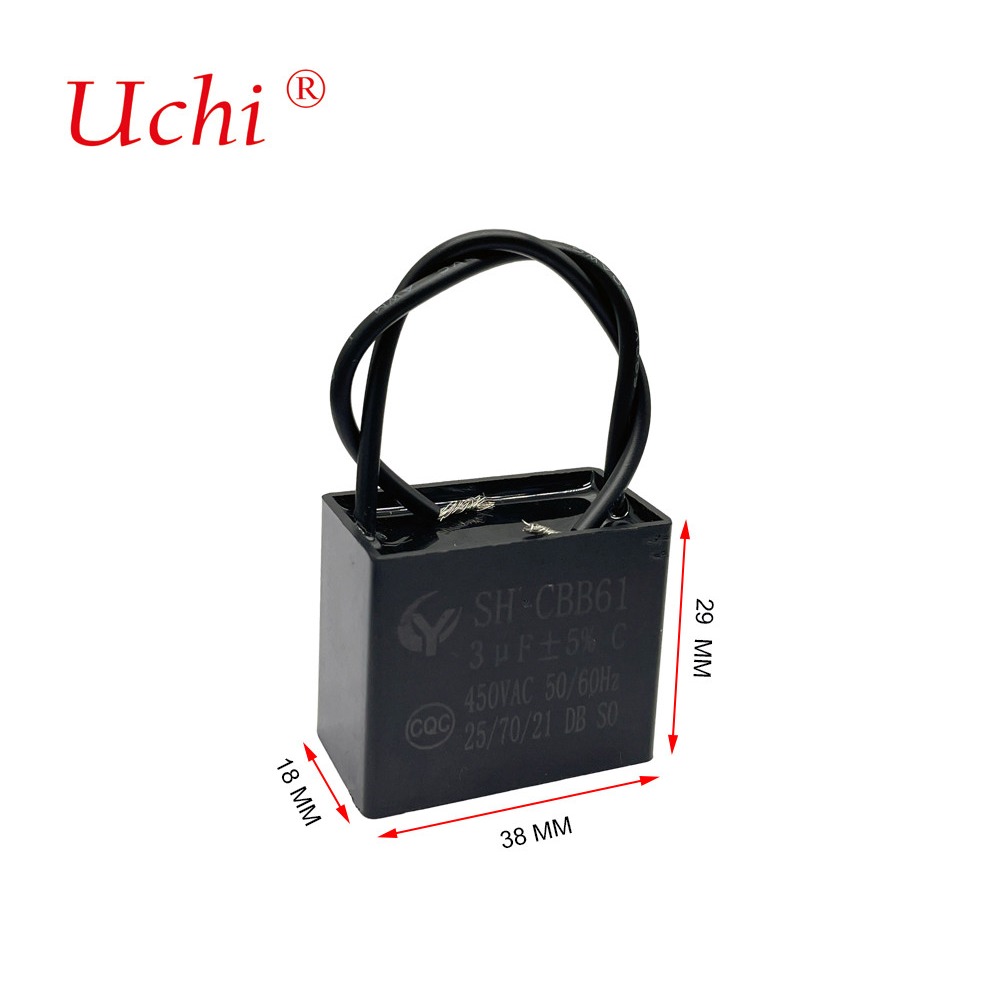

Product Name: CBB61 Starting Capacitor 3uF/450VAC

Product Description

CBB61 Starting capacitor 3uF/450VAC



Quick Details



1. Plastic shell electrolytic core, regardless of positive and negative poles

2. Good stability,

3. Good insulation,

4. High temperature resistance,

5. Strong overload capacity

6. Epoxy seal structure: flame retardant/explosion proof/good adhesion

7. Specification:1UF-30UF



Purpose:

1.Widely used in electric fan starting and lamp compensation;

2.The single-phase motor with relatively small power supply, such as air conditioner fans and exhaust fans with a frequency of 50Hz/60Hz, starts and runs.



Performance criteria

Item Performance
Ambient temperature -25~+85℃
Rated voltage 250VAC~500VAC
Rated frequency 50/60Hz
Range of capacity 0.47~24uF
Capacitance Tolerance ±5%
tanδ Tanδ≤0.002(100Hz;25℃)
Testing voltage 1.75Un/5s





Use conditions:
1.Altitude: No more than 2000m

2.Input residual voltage: not more than 10% of Un

3.Allowable current: not more than 1.3 times In

4.Allowable voltage: not more than 1.1 times Un under long-term operation



CBB61 Startup capacitor Specifications Model:



CBB61 Starting capacitor Hoist fan fume motor air conditioner 450V1.2/1.5/1.8/2/3/4UF 0



Contact us for more models.
