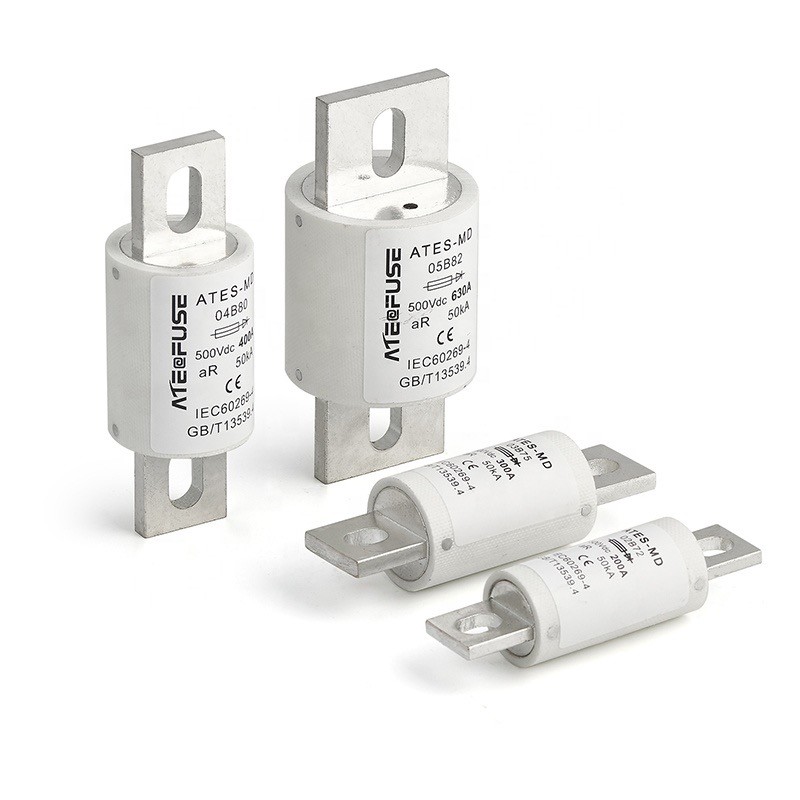

OEM Automotive Fuse Links for EV / Plugin / HEV / FCEV​


OEM ODM Automotive Fuse Link IATF16949 Certificate For EV / Plugin / HEV / FCEV 0


Application Description IrregularCycles SC Currents AmbientTemp. Kc
HV BatteryDistributionUnit (BDU) Collects and manages HV powerfrom the battery pack to theinverter, controls and distributesenergy to accessories and auxiliary power unit Moderatecurrentfluctuations High shortcircuitcurrents, ca. 7-10 x In Moderateto high 0.8

DC/DC

Converter

Converts HV DC power from traction battery pack to LV DC power for accessories and aux.battery Low current variations Low shortcircuitcurrents, 3-5 x In High 1.0
OnboardCharger(OBC) Converts the AC electricity fromthe charging interface to DC power used for charging thebattery pack, monitors voltage, current and SoC Low current spikes andvariations Low tomedium short circuitcurrents, 3-5 x In High 1.0
PowerDistributionUnit (PDU), Control Signal Protects, balances the HV power, managing voltage,current, SoC (State ofCharge), temperature Moderateto highcurrent fluctuations Medium tohigh short circuitcurrents, 5-10 x In Moderate 0.8
Manual SwitchDisconnects(MSD) The MSD presents a manuallyoperated disconnect for internal high voltage battery packs, while protecting the battery from shortcircuit. Low current variations Medium tohigh, 4-10 xIn Very high 0.8
Accessories Air conditioning, heater controling, oil or air pumps etc. Highcurrentvariations Medium tohigh, 4-10 xIn Moderate 1.0




Pure EV and Plug-in Systems:They are fully battery powered,usually by a 32kWh to 64kWhtraction battery and auxiliarypower unit. The fuse for these electrical circuits hast towithstand high currentfluctuations, constant chargingand discharging, high operational temperatures, current overloadscenarios and high short circuitcurrents with interrupting rating up to 20kA.



HEV Systems: In a hybrid systemthe battery pack is usually smaller,ca. 10kWh to 20kWh and operatesat lower voltages 200-450 Vdc.Harsh acceleration and chargingis generally managed through theICE and regenerative braking withmoderate load and effect on thefuse life cycle. Nevertheless, current overload situations andhigh short circuit currents withinterrupting rating up to 20kA arecritical for selecting the correctfuse.



HFC-EV Systems: Acombination of hydrogen fuel cell and battery pack produce theelectric power, whereas theamount of energy stored on board is determined by the size of the hydrogen tank. Therequirements on nominal currentratings as well as interruptingratings up to 50kA are usuallyhigher than in EV and Plug-insystems.




OEM ODM Automotive Fuse Link IATF16949 Certificate For EV / Plugin / HEV / FCEV 1

OEM ODM Automotive Fuse Link IATF16949 Certificate For EV / Plugin / HEV / FCEV 2







The formula for current rating of an EV fuse is based on Ib: Ib = In x KT x Ke x Kv x Kn x Kc









Converted to : In ≥ Ib / (KT x Ke x Kv x Kn x Kc)



In: rated nominal current of fuse



Ib: the allowable maximum continuous load current in the circuit, determined by operation current of the application



KT: temperature derating factor, determined through measurement of theambient temperature



Ke: heat transfer derating factor, determined through the cross section of the terminal connection



Kv: cooling correction factor, when additional cooling measures areemployed



Kc: cyclic loading factor, basically the ’premature aging’/ fatigue factor of the fuse due to to heavy mechanical stress from current over-loadfluctuations
