Product Details:

Place of Origin: Dongguan,China
Brand Name: UCHI
Certification: RoHS
Model Number: BFH-15

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: 0.2~0.5 USD/PC
Packaging Details: Bulk
Delivery Time: 7 WORKDAYS
Payment Terms: T/T
Supply Ability: 10KKPCS PER MONTH
Get Best Price Contact Now

Detail Information

NAME: GLASS FUSE CLIP PTF-15 PART NUMBER: PTF-15
FUSE SIZE: 5X20MM Color: Beige
Current Rating: 10A Mount: Horizontal Open
SPACING: 22 Mm (0.866") VOLTAGE: 250V
Operating Temperature: -30~+85C With Cover: Yes
High Light:

micro fuse holder

,

miniature fuse holder

Product Description



5x20mm 2 Pins Glass Fuse Clip PTF-15 10A 250V BFH-15 With 22mm Pitch And PCB Fuse Holder Cover BS140



5x20mm 2 Pins Glass Fuse Clip PTF-15 10A 250V BFH-15 With 22mm Pitch And PCB Fuse Holder Cover BS140 0



Description



Fuse Clips 5x20mm glass fuses, Solder Tabs, Horizontal Mount, 22mm Pin to Pin Spacing, 10 Amp, 250 Volt,

PTF-15 are fuse clips for 5 x 20 mm glass fuses. They are economic PCB mount fuses. It has a 22mm pin to pin spacing. PTF-15 is the most cost effective solution.





Specification



Part Number PTF-15
Color Beige
Current Rating (A) 10A
Mount Horizontal Open
Operating Temperature -30° - +85°C
Spacing 22 mm (0.866")





Dimension (mm)



5x20mm 2 Pins Glass Fuse Clip PTF-15 10A 250V BFH-15 With 22mm Pitch And PCB Fuse Holder Cover BS140 1

5x20mm 2 Pins Glass Fuse Clip PTF-15 10A 250V BFH-15 With 22mm Pitch And PCB Fuse Holder Cover BS140 2





fuse holder
cylindrical fuses
THT
5x20mm
-30...85°C
6.3A
thermoplastic
UL94V-1
22.6mm
yellow
250V AC
5mΩ
ZHL31H
len. 4.5mm
Ø1.5mm
for PCB, straight
22x13.5x9mm



  • Gross weight: 1.725 g
  • Manufacturer part number: PTF/15

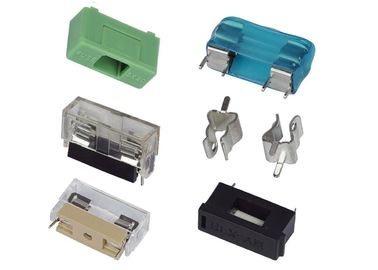

Product Photo



5x20mm 2 Pins Glass Fuse Clip PTF-15 10A 250V BFH-15 With 22mm Pitch And PCB Fuse Holder Cover BS140 3

5x20mm 2 Pins Glass Fuse Clip PTF-15 10A 250V BFH-15 With 22mm Pitch And PCB Fuse Holder Cover BS140 4

5x20mm 2 Pins Glass Fuse Clip PTF-15 10A 250V BFH-15 With 22mm Pitch And PCB Fuse Holder Cover BS140 5
