Cylindrical Vertical 5x20mm PCB Fuse Holder Block 10A 250VAC With Terminal Pitch 10mm
Product Details:
| Place of Origin: | Dongguan,China |
| Model Number: | PTF-45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100Pieces |
|---|---|
| Price: | 0.22~0.4 USD/PC |
| Packaging Details: | Bulk |
| Delivery Time: | 7-10 Days |
| Payment Terms: | Paypal, T/T |
| Supply Ability: | 2000,000 Pieces Per Month |
|
Detail Information |
|||
| Article Name: | PTF-45 Fuse Holder | Pin Spacing: | 10mm |
|---|---|---|---|
| Rated Current: | 10A | Voltage: | 250VAC |
| IP Index: | IP20 | Temperature Range: | -30ºC / 85ºC |
| Dimensions: | 33x10mm | ||
| High Light: | micro fuse holder,miniature fuse holder |
||
Product Description

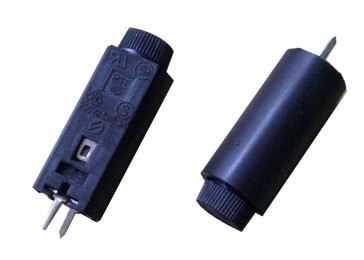

UL94V-0 Flammability Rating Cylindrical Vertical PTF-45 5x20mm PCB Fuse Holder Block 10A 250VAC With Terminal Pitch 10mm
Overview
Fuse holder to PCB for fuses 5 x 20mm.
Opened by screwdriver or manually. Vertical.
Rated voltage: 250V AC
Rated current: 10A
Specification
| Gross weight | 6.5 g |
| Type of fuse accessories | fuse holder |
| Fuses application | tube fuses |
| Mounting | THT |
| Fuse size | 5x20mm |
| Operating temperature | -30...85°C |
| Maximum current | 10A |
| Body material | thermoplastic |
| Flammability rating | UL94V-0 |
| Terminal pitch | 10mm |
| Colour | black |
| Rated voltage | 250V AC |
| Contact resistance | 5mΩ |
| Leads dimensions | len. 4mm |
| Mounting hole diameter | Ø1.3mm |
| Body dimensions | Ø10 x 33.1mm |
Size (mm)
TECHNICAL CHARACTERISTICS
MATERIAL INSULATOR: PBTG15
FLAMMABILITY RATING: UL94V0
COLOR: BLACK
CONTACT / PLATING: COPPER ALLOY / Ni+Sn FUSE
CONTACT: PHOSPHOR BRONZE / Ni+Sn SPRING: INOX STEEL
ENVIRONMENTAL OPERATING TEMPERATURE: -30°C UP TO +120°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
UL VDE
CURRENT RATING: 10A 10A
WORKING VOLTAGE: 250VAC 250VAC
WITHSTANDING VOLTAGE: 1,5KV 3KV
RATED POWER ACCEPTANCE: --- 2,5W
PROTECTION CLASS: II
CONTACT RESISTANCE: 5/10 mΩ MAX
