Polymer PTC Devices Resettable Fuses Low resistance With Lead-Free , Halogen-Free

Certification
Good communication. Will buy from again !

—— Mark Kim

Professional & Patient Sales ,fair transaction

—— Penka Kalacheva

Reliable partner, worth being go on cooperation !

—— Rakesh Saini

I'm Online Chat Now

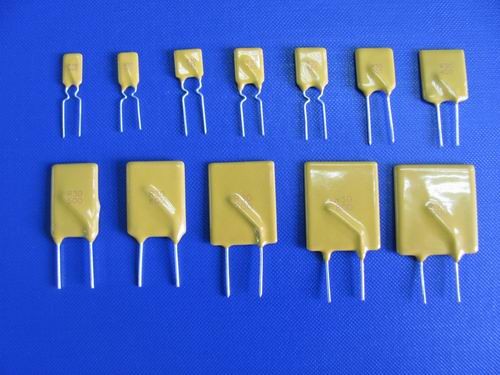

Polymer PTC Devices Resettable Fuses Low resistance With Lead-Free , Halogen-Free

Large Image :  Polymer PTC Devices Resettable Fuses Low resistance With Lead-Free , Halogen-Free

Product Details:

Place of Origin: Dongguan,Guangdong,China
Brand Name: UCHI
Certification: ROHS,SGS,UL,VDE
Model Number: LT30600

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiable
Packaging Details: Bulk 500PCS/BAG
Delivery Time: 3~5 working days
Payment Terms: T/T,Paypal,Western Union,Money gram
Supply Ability: 8000,000,000PCS Per Month
Detailed Product Description
High Light:

polyswitch resettable fuse

,

resettable fuse ptc



Polymer PTC Devices Resettable Fuses Low resistance With Lead-Free , Halogen-Free





Quick Detail:



Fast trip times and resettable protection

• Overcurrent and over temperature protection

• Wide range of current (Ihold) and voltage (Vmax) offerings

• Low resistance

• RoHS compliant, lead-free, halogen-free





Applications:



• Medical Equipment

• Industrial Power and Transmission

• White Goods

• Telecommunications and Networking

• Computer and Peripherals

• Consumer and Automotive Electronics

• Battery and Rechargeable Devices





Specifications:



Product Dimensions in Millimeter

























Part Number

A

B

C

D

E

F

Lead

Max

Max

Typ.

Min

Max

Typ.

Style

Size(Φ)

LT30-090

6.0

13.8

5.1

7.6

3.0

0.9

1

0.6

LT 30-110

7.8

14.0

5.1

7.6

3.0

0.9

1

0.6

LT 30-135

8.9

14.0

5.1

7.6

3.0

0.9

1

0.6

LT 30-160

9.7

17.0

5.1

7.6

3.0

0.9

1

0.6

LT 30-185

10.7

17.0

5.1

7.6

3.0

0.9

1

0.6

LT 30-250

11.7

19.0

5.1

7.6

3.0

0.9

1

0.6

LT 30-300

11.7

21.0

5.1

7.6

3.0

1.2

2

0.8

LT 30-400

14.2

23.0

5.1

7.6

3.0

1.2

2

0.8

LT 30-500

14.4

28.0

10.2

7.6

3.0

1.2

2

0.8

LT 30-600

16.7

28.0

10.2

7.6

3.0

1.2

2

0.8

LT 30-700

19.4

29.6

10.2

7.6

3.0

1.2

2

0.8

LT 30-800

21.6

31.9

10.2

7.6

3.0

1.2

2

0.8

LT 30-900

24.5

36.4

10.2

7.6

3.0

1.2

2

0.8

















































Electrical Characteristics at 25 ℃


Part Number

IH

IT

Vmax

Imax

Ttrip

Pdtyp

Rmin

Rmax

(A)

(A)

(V)

(A)

Current(A)

Time(s)

(W)

(Ω)

(Ω)

LT 30-090

0.90

1.80

30

40

4.50

7.1

0.91

0.07

0.12

LT 30-110

1.10

2.20

30

40

5.50

6.6

1.00

0.05

0.10

LT 30-135

1.35

2.70

30

40

6.75

7.3

1.11

0.04

0.08

LT 30-160

1.60

3.20

30

40

8.00

8.0

1.20

0.03

0.07

LT 30-185

1.85

3.70

30

40

9.25

8.7

1.27

0.03

0.06

LT 30-250

2.50

5.00

30

40

12.50

10.3

1.34

0.02

0.04

LT 30-300

3.00

6.00

30

40

15.00

10.8

2.00

0.02

0.05

LT 30-400

4.00

8.00

30

40

20.00

12.7

2.50

0.01

0.03

LT 30-500

5.00

10.00

30

40

25.00

14.5

3.00

0.01

0.03

LT 30-600

6.00

12.00

30

40

30.00

16.0

3.50

0.005

0.02

LT 30-700

7.00

14.00

30

40

35.00

17.5

3.80

0.005

0.02

LT 30-800

8.00

16.00

30

40

40.00

18.8

4.00

0.005

0.02

LT 30-900

9.00

18.00

30

40

40.00

20.0*

4.20

0.005

0.01

IH=Hold current: maximum current at which the device will not trip at 25℃ still air.

IT=Trip current: minimum current at which the device will always trip at 25℃ still air.

Vmax=Maximum voltage device can withstand without damage at rated current.

Imax=Maximum fault current device can withstand without damage at rated voltage.

Ttrip=Maximum time to trip(s) at assigned current.

Pdtyp=Typical power dissipation: typical amount of power dissipated by the device when in state air environment.

Rmin=Minimum device resistance at 25℃ prior to tripping.

Rmax=Maximum device resistance at 25℃ prior to tripping.



Thermal Derating [ Hold Current (A) at Ambient Temperature (℃)]



Part Number

Maximum Ambient Operating Temperature (℃)

-40

-20

0

25

40

50

60

70

85

LT 30-090

1.40

1.25

1.10

0.90

0.75

0.69

0.65

0.60

0.50

LT 30-110

1.75

1.52

1.33

1.10

0.99

0.90

0.80

0.73

0.63

LT 30-135

2.15

1.94

1.70

1.35

1.20

1.14

1.00

0.90

0.81

LT 30-160

2.49

2.21

1.94

1.60

1.42

1.31

1.19

1.03

0.88

LT 30-185

2.87

2.59

2.28

1.85

1.63

1.52

1.33

1.21

1.05

LT 30-250

3.82

3.44

3.03

2.50

2.17

2.00

1.81

1.59

1.39

LT 30-300

4.55

4.10

3.60

3.00

2.65

2.51

2.24

2.01

1.74

LT 30-400

6.00

5.40

4.74

4.00

3.47

3.28

2.82

2.63

2.26

LT 30-500

7.44

6.68

5.80

5.00

4.30

4.03

3.58

3.22

2.77

LT 30-600

8.90

7.99

7.08

6.00

5.13

4.82

4.27

3.84

3.30

LT 30-700

10.35

9.30

8.21

7.00

5.95

5.58

4.96

4.46

3.84

LT 30-800

11.60

10.60

9.35

8.00

6.79

6.36

5.64

5.07

4.36

LT 30-900

13.25

11.90

10.49

9.00

7.53

7.12

6.32

5.69

4.88





Reliability Test



Test

Test Conditions

Accept/Reject Criteria

Resistance

In still air @ 25℃

Rmin≤R≤Rmax

Time to Trip

Specified current, Vmax, 25℃

T≤maximum Time to Trip

Hold Current

30min, at IH

No trip

Trip Cycle Life

Vmax, Imax, 100cycles

No arcing or burning

Trip Endurance

Vmax, 24hours

No arcing or burning





Typical Time-to-Trip Curves at 25 ℃



A = LT 30-090

B = LT 30-110

C = LT 30-135

D = LT 30-160

E = LT 30-185

F = LT 30-250

G = LT 30-300

H = LT 30-400

I =  LT 30-500

J = LT 30-600

K = LT 30-700

L = LT 30-800

M = LT30-900





Package Information



Bulk:

LT 30-090 ~ LT 30-185…………………………….1000 pcs per bag

LT 30-250 ~ LT 30-800……………………………. .500 pcs per bag

LT 30-400……………………………………………1000 pcs per bag

LT 30-900…………………………………………….200 pcs per bag



Tape & Reel:

LT 30-090 ~ LT 30-250…………………………….3000 pcs per reel

LT 30-300……………………………………………2500 pcs per reel

LT 30-400 ~ LT 30-500…………………………….1500 pcs per reel





Competitive Advantage:



  1. Factory supply directly
  2. Completed certificates such as UL,VDE,SGS,etc and high quality available
  3.  Quick delivery
  4. Best after-sales services
  5. OEM & ODM available





Contact Details
Dongguan Uchi Electronics Co.,Ltd.

Contact Person: Anna
