Copper Tin Plated PCB Mount Fuse Clip For 6x30mm Glass / 6.32x32mm Ceramic Fuse

Copper Tin Plated PCB Mount Fuse Clip For 6x30mm Glass / 6.32x32mm Ceramic Fuse

Product Details:

Place of Origin: DONGGUAN,CHINA
Brand Name: UCHI
Certification: ROHS
Model Number: FC630

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: 0.04-0.1 USD / PCS
Packaging Details: BULK
Delivery Time: 7 WORKDAYS
Payment Terms: T/T
Supply Ability: 100KKPCS PER MONTH
Get Best Price Contact Now

Detail Information

Name: PCB MOUNT FUSE CLIP FUSE SIZE: 6X30MM
VOLTAGE RATING: 250V AMPERE: 15A
SPEED: FAST MATEIRAL: COPPER+TIN PLATED
THICKNESS: 0.5MM CUSTOMIZED: YES
UNIT WEIGHT: 0.86GRAM LT: 7 DAYS
High Light:

micro fuse holder

,

miniature fuse holder

Product Description



Copper Tin Plated PCB Mount Fuse Clip For 6x30mm Glass Fuse 6.32x32mm Ceramic Fuse

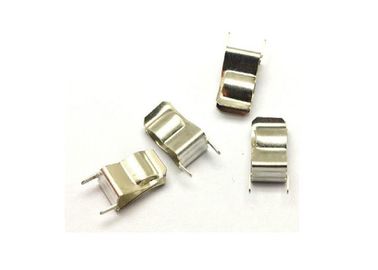

Copper Tin Plated PCB Mount Fuse Clip For 6x30mm Glass / 6.32x32mm Ceramic Fuse 0



Features


• Available for 6x30mm
• Low profile, space saving
• Low contact resistance
• Withstands shock and vibration
• Rated 6.3 to 30 Amps
• Custom designs and modifications available to your specifications





Dimension



Copper Tin Plated PCB Mount Fuse Clip For 6x30mm Glass / 6.32x32mm Ceramic Fuse 1





Applications



FC630 fuse clip suitable for 6x30mm cartridge fuse, mainly used for PCB of home appliances, PC, Remote control, automotive applications tec.





Advantages



Thickness 0.5mm

Soldering temp 260±5℃

Load voltage 250V

Load current 15A

Small size

Good spring

Good hardness

Nice Conductivity

Durable

Easily changing fuse

Easily mount fuse

Unit weight 0.86g

Suitable fuse 6.32x32mm 6x30mm





Descriptions



Fuse Clip is for fuse mount, including current fuse clip and auto fuse holder , technology is nickel plating, tin plating and sliver plating. Current fuse clip based on fuse size 3.6x10mm,5x20mm 6x30mm,10x38mm ; Auto fuse clip based on blade fuse size mini fuse clip, medium fuse clip, maxi fuse clip, usually used in PCB and convenient to change fuse after fuse blown.Fuse selection based on fuse size and fuse current, space left
for fuse clip in PCB.



Fuse holders can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating.
Fuse holders are suitable for protection against overloads and short circuits.





Pls check the datasheet below:



Rating: 10A 250VAC Contact Resistance: 35mΩ max
Electrical Life: ≥ 200 Cycles Mechanical Life: ≥ 5,000 Cycles
Dielectric strength: 1500VAC 50Hz 1 minute Operating Temperature: -55℃~+85℃
Fuse Size: 5x20mm/6x30mm OEM or ODM: Available





Product Photos





Copper Tin Plated PCB Mount Fuse Clip For 6x30mm Glass / 6.32x32mm Ceramic Fuse 2
