8x4x8mm DIP Mounted Miniature Square Radial Lead Micro Slow Blow Subminiature Fuse T8A 250V

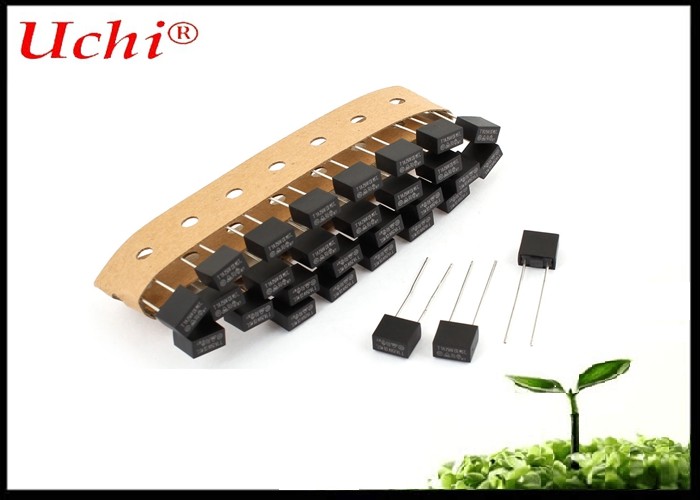

Large Image :  8x4x8mm DIP Mounted Miniature Square Radial Lead Micro Slow Blow Subminiature Fuse T8A 250V

Product Details:

Place of Origin: Guangdong,China
Model Number: MTS1800A

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: 0.015~0.02 USD/PC
Packaging Details: Tape 10K/Carton ; Bulk 20K/Carton
Delivery Time: 5-7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100KKPCS Per Month
Detailed Product Description
Type Name: Subminiature Fuse Size: 8x4x8mm
Fuse Feature: Time-Lag Color: Black
Rated Current: 8A Voltage Rating: 250V



8x4x8mm DIP Mounted Miniature Square Radial Lead Micro Slow Blow Subminiature Fuse T8A 250V





What are fuses??



They are protectors that prevent damage to electronic and electrical equipment. Fuses allow electric current to pass through them until the amount of current goes over the fuses rating. At the time, the fuse Blows and stop the flow of electric current. Fuses are rated in in amperes, the unit of measure for electric current.





Dimension







Part numbering



Part. Ampere Voltage Max Voltage I2TMelting
No. Rating Rating Drop (mv) Integral(A2.S)
MTS0050A 50mA 250V 555 0.02
MTS0100A 100mA 250V 355 0.11
MTS0125A 125mA 250V 323 0.12
MTS0160A 160mA 250V 296 0.17
MTS0200A 200mA 250V 272 0.21
MTS0250A 250mA 250V 251 0.41
MTS0315A 315mA 250V 237 0.63
MTS0400A 400mA 250V 211 1.22
MTS0500A 500mA 250V 202 2.34
MTS0630A 630mA 250V 191 2.88
MTS0800A 800mA 250V 172 3.92
MTS1100A 1A 250V 200 5.77
MTS1125A 1.25A 250V 200 8.34
MTS1160A 1.6A 250V 190 13.6
MTS1200A 2A 250V 170 25.9
MTS1250A 2.5A 250V 170 42
MTS1300A 3A 250V 165 45
MTS1315A 3.15A 250V 150 64
MTS1400A 4A 250V 130 92
MTS1500A 5A 250V 130 140
MTS1630A 6.3A 250V 130 208
MTS1800A 8A 250V 100 265
MTS2100A 10A 250V 100 295





Operating Characteristics



% of Ampere Rating(In)

Blowing Time

150%* In 60 min Minimum
210%* In 2 min Max
275%* In 400 ms~10 s
400%* In 150 ms~3 s
1000%* In 20 ms~150 ms





Suitable Fuse Holder







Fast-ACTING / SLOW BLOW,what's meaning ?



Fast Acting fuses react quickly to current overloads. Slow Blow fuses are less sensitive to start-up surge and protect against long-term overlaods



Fuse is a Saftey devices components. Always replace a blown fuse with the same type replace fast acting with fast acting, slow blow with slow blow. Slow Blow fuse are less sensitve to start-up the protection against longterm overloads.Thera are four basic types of fuse: Slow-Blow/ Time LAG - Dual Element slow blow fuses / Fast-acting / Very fast Acting fuses.



A major type of slow blow fuse is the dual element fuse. This fuse consists of a short circuit strip and a soldered joint, spring connection. During overloads conditions, the soldered joints gets hot enough to melt and the spring shears the junction loose. Under short circuits conduitions the short circuit elements opersates to open the circuit. All dual-Elements fuses are considered to be slow blow, but not all slow blow fuses are dual elements.



Slow-blow fuses are ideal for circuits with a transient surge or power inrush. There circuits include: motors, transformers, incandescant lamps and capacitive loads. This inrush can be 20 times the normal current level. When using fast-acting, single elements type fuses, it is neccessary to rate fuse at 150% to 300% of thre circuits full load curent. With this rating rule inrush may cause nuisance openings.



Slow Blow fuses allow close rating of the fuse without nuisance opening. Typically rate the slow-blow fuses from 125% to 150° of the circuits full load process .
