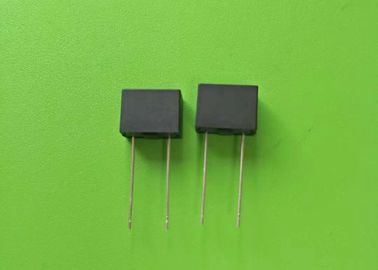

Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL

Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL
Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL

Large Image :  Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL Get Best Price

Product Details:

Place of Origin: Dongguan,China
Model Number: 938

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Tape,1000pcs/box,10000pcs/carton. Weight: 1.1kg/box,12kg/carton
Delivery Time: 2 Weeks
Payment Terms: T/T
Supply Ability: 100,000,000,000 Pieces Per Month
Detailed Product Description
Type: Subminiature Fuse Size: 12.2*6.4*9.2mm
Pitch: 7.5mm Rated Current: 4A,5A
Rated Voltage: AC 250V/300V Standard: IEC 60127
Approvals: UL,CQC,CB Operating Temp: -55°C To +125°C
Cap: Plastic Lead Wire: 0.6mm Tin Plated Copper.
High Light:

mini glass fuses

,

radial lead fuse



New Arrival Biggest 938 Series Plastic Shell Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL





Application



Over-current protection.Its main applications are for consumer electronics, LED drivers, power supplies, battery chargers and controllers for industrial use.





GENERAL INFORMATION



The 938 series provides protection for printed circuit boards used in a large variety of applications that need fuses with time-delay, low breaking capacity. The sub-miniature device is constructed of a plastic cap and base with a tin plated copper lead wire. It offers excellent mounting characteristics and is 100% tested for cold resistance.




Detailed Features


• Subminiature fuse with time delay, low breaking capacity.
• Small, rectangular and leaded design minimizes board space and eliminates the need for additional mounting components.
• Plastic cap / black thermoplastic fuse body.
• 0.6mm lead wires made of tin plated copper.
• Protection against harmful over-currents in primary and secondary applications.
• Lead-free, Halogen-free, RoHS compliant.
• Designed according to IEC 60127-4.





AGENCY APPROVALS



Agency File Number Voltage/Current Rating
CQC CQC18012203887 250V AC: 4A, 5A
UL Pending 300/250 AC: 0.1A~6.3A;





Dimensions (units: mm)



Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL 0



Operating Temperature: -55°C to +125°C
Storage Conditions:
+10℃ to +60℃
Relative humidity: ≤ 75% yearly average without dew, maximum 30 days at 95%





ELECTRICAL SPECIFICATIONS



Time vs Current Characteristics Table-- IEC 60127
(measured with constant current power supply)



Rated Current 125% 200% 1000%
4A/5A >3600 sec <120 sec 100msec~1sec





Electrical Characteristics



Rated Current Rated Voltage Breaking Capacity Nominal Cold
Resistance
(mΩ) ±30%
Voltage Drop
Max(mV)
Power
Dissipation
Max(mW)
Melting
I²t(A²s)
Max
4A 250V/300V 200A@250V AC
100A@300V AC
18.0 300 1500 370
5A 250V/300V 13.5 300 1500 750



Notes:

1. Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)
2. The current values used for calculating I2T should be within the standard range of 10In





Soldering parameters



260±5℃.≤5 sec (Wave Soldering)
350℃.≤3 sec (Hand Soldering)
Soldering Peak:
260±5℃ < 10 sec (IEC 60068-20)





Packaging



Tape in reel

1000pcs per box , 1.1kg/box

10000pcs per carton ,12kg.carton

Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL 1





Tape dimension



Biggest 938 Series Super Slow Blow Micro Subminiature Fuse AC 250V 300V T 4A 5A CQC CB UL 2





Part Number


Example: 9381500201
938 1500 2 01
   1      2   3  4
1 Product Series ………….. 938
2 Ampere Rating ………..... 5A (see table 4.2 below)
3 Rated Voltage …………... 1– 125V
                                             2– 250V
                                             3– 300V
4 Supplementary Code …... Complement Code





4.2. Ampere / Voltage Rating Table



AMP CODE CURRENT RATING VOLTAGE RATING
1400 4A 250V / 300V AC
1500 5A 250V / 300V AC



Contact Details
Dongguan Uchi Electronics Co.,Ltd.

Contact Person: Anna

Send your inquiry directly to us
