Cross Non Solid Wet Tantalum Capacitors 120UF 10% 50V VISHAY 109D127X9050F2

Large Image :  Cross Non Solid Wet Tantalum Capacitors 120UF 10% 50V VISHAY 109D127X9050F2

Product Details:

Place of Origin: CHINA
Model Number: CA30 Type

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: 5.5~10USD/PC
Packaging Details: Bulk
Delivery Time: 2 Weeks
Payment Terms: T/T, Western Union
Supply Ability: 1000,000PCS Per Month
Detailed Product Description
Name: Tantalum Capacitors Capacitance: 120uF
Tolerance: ±10% Voltage - Rated: 50V
Type: Hermetically Sealed ESR: 2.5 Ohm
Operating Temp: -55°C ~ 125°C Mounting Type: Through Hole
Package / Case: Axial Size / Dimension: 8x22mm

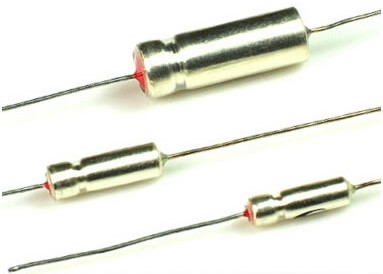

VISHAY 109D127X9050F2 Cross CA30 Type Non-Solid Wet Tantalum Capacitors 120UF 10% 50V AXIAL For Operation to +125 °C





Manufacture Supply CA30 Series 125C Axial-lead Tantalum Electrolytic Capacitor



The CA30 type non-solid electrolyte fixed tantalum capacitor adopts tantalum powder as the positive electrode and the silver outer shell as the negative electrode. The axial lead-out structure has excellent electrical properties and cost performance.








Applications



Suitable for DC or pulsating circuits of military and civil electronic equipment such as weapons, communications, and submarine cables. It functions as a direct communication and energy storage.
Silver case encapsulation, Epoxy end-filled, Tubular, Axial-lead, with insulation sleeve, Heteropolarity
Stable in Electrical performances, High Reliability, Low DCL, Long life-span, Testing standard is superior to SJ/T10030-91 Standard, Small size, Convenient for Installation.
Applying in Communications, Instruments and Meters, such Electrical Equipment with DC& Impulse circuit

HF and VHF for RF circuits





Dimension (mm)







Specifications



Standard l SJ/T10030-91

Operating temp range

l -55℃~+125℃
Rated voltage l 50V

Derating voltage

l 30 V

Capacitance tolerance

l K - ±10%



Model

Spec

V-μF

Standard

Dimension

mm

d

mm

+20℃

Loss

%

+20℃

Leakage current

μA

CA30 50-120-±10% SJ10030-91 Ф8*22 0.8 30 6





Features



Silver case package, semi-sealed, cylindrical, axially led out.

Polarity, stable and reliable electrical performance, large volume capacity, high working voltage and minimal leakage current.

Axial through-hole terminations: standard tin /lead (SnPb), 100 % tin (RoHS-compliant) available





Technical Characteristics


Operating Temperature Range: -55C~+125C
DC Leakage at 25C:Ⅰ0≤0.001CRUR (μA) or 1μA
DC Leakage at 85C or 125C:Ⅰ0≤0.008CRUR (μA) or 8μA
Capacitance Tolerance: K: ±10%;M: ±20%
Capacitance Range: 0.47uf~3300uf
Voltage Range: 6.3V~125V
Rated Voltage: 6.3V, 10V, 16V, 25V, 40V, 50V, 63V, 75V, 100V, 125V
Capacitance with: 0.47uf, 0.68uf, 1.0uf, 1.5uf, 2.2uf, 3.3uf, 4.7uf, 6.8uf, 10uf, 15uf, 22uf, 33uf, 47uf, 68uf, 100uf, 150uf, 220uf, 330uf, 470uf, 680uf, 1000uf, 1500uf, 2200uf, 3300uf.





Precautions



*It is forbidden to use a multimeter to measure tantalum capacitors (it is easy to cause irreversible damage and lead to product scrapping).

*The measurement frequency of capacitance and loss tangent is 100Hz, DC bias voltage U-=2.20 -1.0V, AC bias U~=1.00 -0.5V (effective value); the measurement method is series equivalent circuit.

*Test leakage current above 85 °C, and apply derating voltage.





PERFORMANCE CHARACTERISTICS


Operating Temperature: -55 °C to +85 °C (to +125 °C with voltage derating)
Capacitance Tolerance: at 120 Hz, +25 °C.± 20 % standard. ± 10 %, ± 5 % available as special.
DC Leakage Current (DCL max.):at +25 °C, +85 °C, +125 °C: leakage current shall not exceed
the values listed in the Standard Ratings tables.
Life Test: capacitors are capable of withstanding a 2000 h life test at a temperature of +85 °C or +125 °C at the applicable DC working voltage.




Following the life test


1. DCL shall not exceed the initial requirements or 1 μA, whichever is greater.
2. The ESR shall meet the initial requirement.
3. Change in capacitance shall not exceed 10 % from the initial measurement. For capacitors with voltage ratings of 15 VDC and below, change in capacitance shall not exceed + 10 %, - 25 % from the initial measurement.
