MF58 series adopts glass glaze high-temperature resistant hermetic NTC Thermistor
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | UCHI |
| Certification: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
| Model Number: | MF58D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T,Paypal,Western Union,Money gram |
| Supply Ability: | 5000,000,000PCS Per Month |
|
Detail Information |
|||
| Foot Length: | Customizable | Size: | 7mm |
|---|---|---|---|
| Product: | NTC Chip | Lead Style: | Straight Lead; Bend Lead |
| Resistance Value: | 2K-200K | Operating Temperature: | -55°C ~ 125°C |
| Type Of Sensor: | MF55 NTC Thermistor | Powerrating: | 0.1W To 2W |
| Dissipationconstant: | 1 To 5 MW/°C | Maximumoperatingvoltage: | Up To 150V |
| Shape: | Pearl Shape | Operatingtemperaturerange: | -55°C To 150°C |
| Usage: | Temperature Sensor | Product Diameter: | 11mm |
| Highlight: | glass glaze NTC thermistor,high-temperature resistant NTC thermistor,hermetic NTC thermistor |
||
Product Description

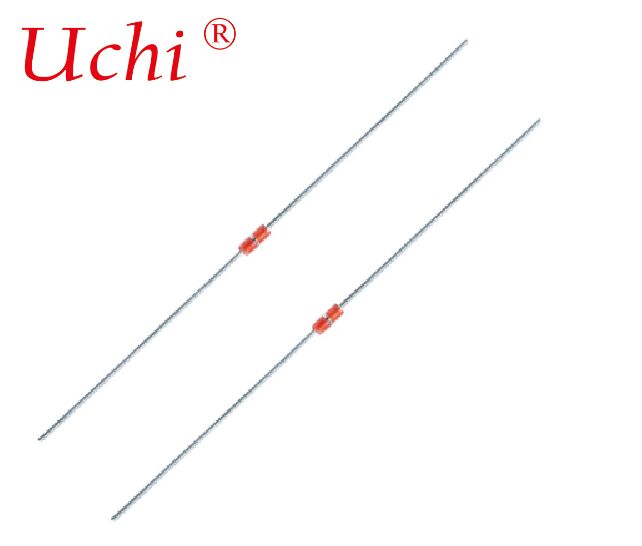

MF58 Series Glass Encapsulated NTC Thermistor
PRODUCT FEATURES
Excellent high-temperature stability, resistance to aging and slight resistance drift during long-term operation, ensuring high comprehensive reliability.
Miniature size and lightweight design with a sturdy impact-resistant body structure, suitable for automatic insertion and mass production assembly.
High heat conduction efficiency, fast thermal response, high temperature detection sensitivity and timely temperature control feedback.
Ultra-wide resistance range: 0.1KΩ～5000KΩ, with sufficient full-range specifications for both high and low resistance options.
Adopted precise process control, the accuracy of resistance and B-value can reach ±1%, delivering higher measuring accuracy and lower error.
OPERATION PARAMETERS
Nominal Resistance Range: 0.1KΩ～5000KΩ
Operating Temperature Range: -40℃～+300℃
Response Time: ≤10s
Dissipation Factor: ≥2.5mW/℃
Popular B-Value: 3435, 3950, 3977 optional
Accuracy Grade: ±1%, ±2%, ±5%
Product Structure & Advantages
The MF58 series adopts glass glaze high-temperature resistant hermetic encapsulation,
featuring high temperature resistance, oxidation resistance, moisture-proof, corrosion resistance and excellent insulation performance.
High mechanical strength with resistance to vibration and high-low temperature cycling, suitable for harsh working conditions.
Standard through-hole leads with excellent solderability, compatible with manual welding and automated production.
Core Highlights
Wide-temperature and high-temperature resistant design, breaking the temperature limit of conventional epoxy resin encapsulated thermistors.
Glass sealing protection delivers strong environmental adaptability, widely used in industrial equipment and high-temperature home appliances.
Superior consistency and interchangeability with great compatibility for mass production, effectively reducing overall costs.
Complete ultra-high resistance specifications to meet the demands of special circuits for temperature measurement, temperature compensation and over-temperature protection.
Application Scenarios
Widely used in high-temperature home appliances, industrial heating equipment, baking appliances,
HVAC systems, automotive electronics, industrial controllers, precision instruments, medical devices and more.
It is applied to high-temperature environment temperature detection, overheating protection and circuit temperature compensation.
