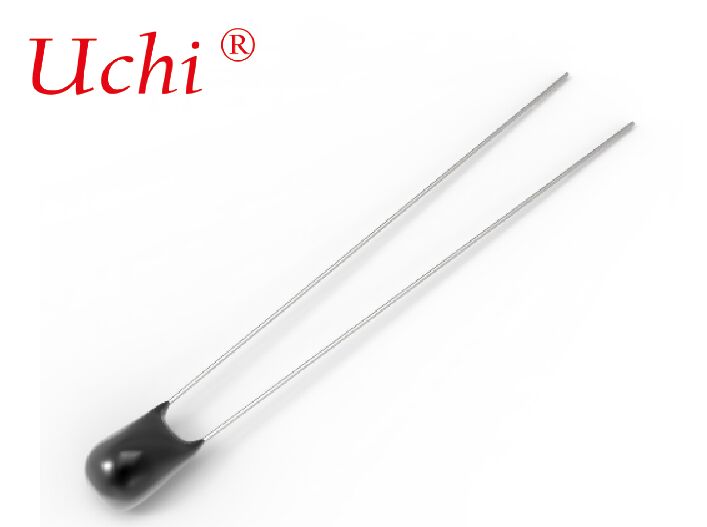

MF52E NTC Thermistor Moisture-Proof Encapsulation With Excellent Insulation
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | UCHI |
| Certification: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
| Model Number: | MF52E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T,Paypal,Western Union,Money gram |
| Supply Ability: | 5000,000,000PCS Per Month |
|
Detail Information |
|||
| Supplier Type: | Original Manufacturer | Beta Tolerance: | +/-1% |
|---|---|---|---|
| Delivery: | Fast | Output Signal Type: | Analog Type |
| Cable Material: | CP/CU | Transport Package: | Carton Packing |
| Capacitance: | 47μF | Response Time: | Typically 1 To 10 Seconds |
| Lead: | Copper Wire | Product Diameter: | 11mm |
| Relative Humidity: | ≦75%RH | Rohs Compliance: | Yes |
| Time Constant: | ≤12 Sec In Still Air | Resistance Value: | 10K Ohm/100K Ohm/200KOhm/500K Ohm |
| Highlight: | MF52E NTC thermistor moisture-proof,NTC thermistor with excellent insulation,encapsulated NTC thermistor moisture-resistant |
||
Product Description
MF52E NTC Thermistor
PRODUCT FEATURES
Excellent detection accuracy, outstanding aging resistance and anti-drift performance, enabling long-term continuous and stable operation.
Adopted micro-size design, it occupies little installation space, with sensitive temperature sensing and fast response speed.
Stable production process ensures high batch consistency and superior product interchangeability, ideal for mass assembly.
Ultra-wide resistance coverage: 0.1KΩ～500KΩ, suitable for product selection in diverse application scenarios.
High-precision grades available, with resistance and B-value accuracy up to ±1%, realizing more accurate temperature measurement, temperature compensation and temperature control.
OPERATION PARAMETERS
Nominal Resistance Range: 0.1KΩ～500KΩ
Operating Temperature Range: -40℃～+125℃
Temperature Response Time: ≤12s
Dissipation Factor: ≥2.5mW/℃
Standard B-Value: 3435, 3950, 3977 optional
Accuracy Grade: ±1% / ±2% / ±5%
Package Structure: Epoxy resin moisture-proof encapsulation with excellent insulation and protection performance
Core Advantages
Covers ultra-wide resistance range, fully adapting to low-voltage, standard and high-resistance temperature measurement scenarios.
Stable operation in a wide temperature range with strong adaptability to high and low temperature environments.
High consistency and low dispersion, strong compatibility for mass production and supporting application.
High-precision sensing performance to meet the requirements of precise temperature control and circuit temperature compensation.
Application Scenarios
Widely applied to small household appliances, new energy batteries, power equipment, industrial control instruments,
smart home products, medical electronics, frequency conversion electrical appliances, automotive electronics and more,
for temperature detection, over-temperature protection and circuit temperature compensation.
Selection Notes
Mainstream common specifications: 10K, 50K, 100K, 200K (B3950 ±1%);
Non-standard resistance, special B-value and custom lead length are available for customized production;
MF52E is an upgraded protection version with better environmental weather resistance than ordinary MF52 series.
