MF52B Small Black Head NTC Thermistor Stable Performance And High Reliability
Product Details:
| Place of Origin: | Dongguan，Guangdong,China |
| Brand Name: | UCHI |
| Certification: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
| Model Number: | MF52B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T,Paypal,Western Union,Money gram |
| Supply Ability: | 5000,000,000PCS Per Month |
|
Detail Information |
|||
| Operatingtemperaturerange: | -55°C To 150°C | Body Size: | Ф20mm |
|---|---|---|---|
| Response Time: | 15 Sec | Free Sample: | Yes |
| Transport Package: | Carton Packing | B Value: | 3200～4400K |
| Wire Material: | Dumet Wire With Insulated Tube | Resistance Accuracy: | ±0.5%, ±1%, ±2%, ±3%, ±5% |
| Productname: | NTC Thermistor | Lead: | Tinned CP |
| Insulation Resistance: | >100MΩ | Head Material: | GLASS |
| Item No: | MF58 Glass Sealed Diode NTC Thermistor | Type: | Negative Temperature Coefficient (NTC) |
| Mounting: | Throught Hole | ||
| Highlight: | small black head NTC thermistor,high reliability NTC thermistor,stable performance thermistor |
||
Product Description

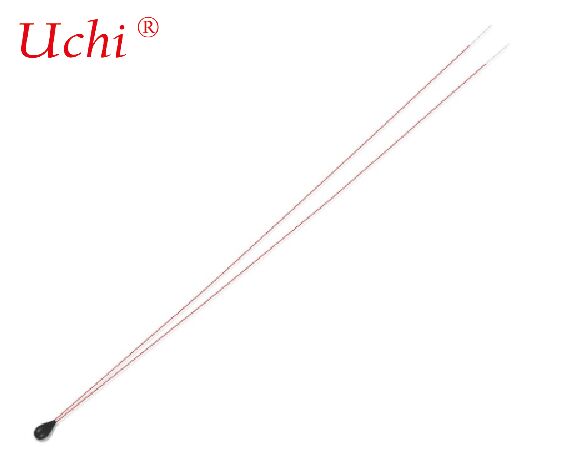

MF52B Small Black Head NTC Thermistor
Ⅰ. Product Features
It features stable performance and high reliability, supporting long-term continuous and stable operation.
Miniature size with small space occupation, sensitive temperature induction and fast response speed.
Mature production technology with excellent single-piece consistency and strong interchangeability, suitable for mass production and supporting application.
Wide resistance range: 2KΩ～200KΩ, covering a full range of model selection.
High-precision version is optional, with resistance and B-value accuracy up to ±1%, ensuring low errors in temperature measurement and temperature control.
Adopting epoxy resin encapsulation, it has great insulation, moisture and corrosion resistance, and strong environmental adaptability.
Ⅱ. Operation Parameters
Nominal Resistance Range: 2KΩ～200KΩ
Operating Temperature Range: -40℃ ～ +125℃
Temperature Response Time: ≤12s
Dissipation Factor: ≥2.5mW/℃
Common B-Value: 3435, 3950, 3977 (standard configuration, customizable)
Accuracy Grade: ±1%, ±2%, ±5%
Package Type: Epoxy resin bead encapsulation (MF52B Small Black Head)
Ⅲ. Core Advantages
- High-precision temperature measurement: Precise B-value and low resistance deviation, perfectly compatible with precise temperature control circuits.
- Wide temperature range adaptation: Stable operation in both high and low temperature environments.
- Low cost & high compatibility: Universal through-hole package, capable of replacing conventional NTC thermistors with outstanding cost performance.
- Excellent aging resistance with tiny resistance drift after long-term service.
Ⅳ. Application Scenarios
Widely used in temperature detection, temperature compensation and over-temperature protection of small home appliances, smart home products, power adapters, power batteries,
medical equipment, instruments & meters, industrial control circuit boards, frequency conversion equipment and other fields.
Ⅴ. Selection Notes
Popular standard specifications: 10K, 50K, 100K (B-value 3950 ±1%);
Special resistance values, non-standard B-values and custom wire lengths are available on demand;
Suitable for general civil and industrial universal scenarios, meeting conventional safety standard requirements.
