350 630 700 Transient Voltage Suppression Multilayer Chip Varistor Alloy
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Uchi |
| Certification: | ROHS,REACH |
| Model Number: | NTC QV0806P241KT201 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Reel |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tape in reel |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10 Billion per year |
|
Detail Information |
|||
| Features: | Coated With Glass Layer, Excellenthumidity Resistance, High Reliabilityand Stability Miniature Size, No Lead, Excellent Solderability, Ideal For High Density SMT Installation | Type: | NTC Thermistor |
|---|---|---|---|
| Wide Operating Temperature Range:: | -55℃～＋125℃； | Features 2: | Series Of B Constant For Various Applications |
| Part No.: | QV0806P241KT201 | Max. Clamping Voltage (8/20μs): | 350，630，700 |
| Max Time At Max Temp:: | 10sec. | Material Science: | Alloy |
| High Light: | 630 Multilayer Chip Varistor,700 Multilayer Chip Varistor,350 Multilayer Chip Varistor |
||
Product Description

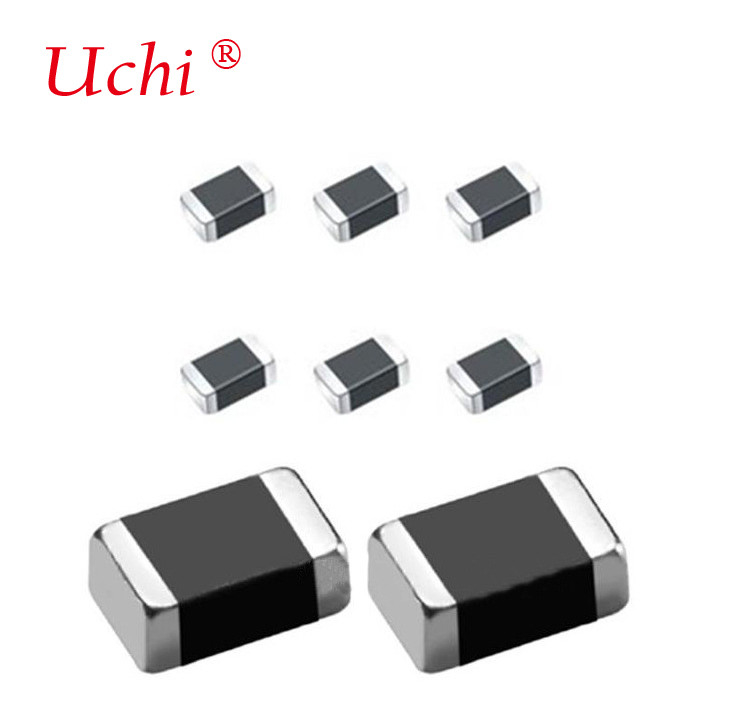

NTC SMD Thermistor Transient Voltage Suppression Multilayer Chip Varistor
Chip Varistor for Power-lines Protection
1. Identification (Part Number)
| ① Type | |
| QV | Chip Varistor |
| ③ Application Code | |
| P | Power-lines Protection |
| ④ Varistor Voltage @ 1mA | |
| 241 | 240V |
| 471 | 470V |
| ⑥ Packaging | |
| T | Tape |
| B | Bulk |
| ② External Dimension L×W×T (mm) | |
| 0806 | 2.20×1.80×2.00 |
| 1206 | 3.20×1.60×1.60 |
| 1210 | 3.20×2.50×1.7. |
| 1812 | 4.50×3.20×2.50 |
| ⑤ Tolerance of Varistor Voltage | |
| K | ±10% |
| ⑦ Max. Surge Current @8/20μs | |
| 500 | 50A |
| 201 | 200A |
2. Structure and Dimensions
| Type | L (mm) | W (mm) | T (mm) | a (mm) |
| 0806 | 2.2 +0.2/-0.2 | 1.8 +0.2/-0.2 | 2.0 Max. | 0.50±0.30 |
| 1206 | 3.2 +0.6/-0.4 | 1.8 +0.2/-0.2 | 2.0 Max. | 0.50±0.30 |
| 1210 | 3.2 +0.6/-0.4 | 2.5 +0.4/-0.2 | 2.6 Max. | 0.50±0.30 |
| 1812 | 4.5 +0.6/-0.2 | 3.2 +0.5/-0.2 | 3.5 Max. | 0.60±0.30 |
| Part | ① | ② | ③ |
|
Component |
ZnO Semiconductor Ceramics for Chip Varistor |
Internal Electrode (Ag or Ag-Pd) |
Terminal Electrode (Ag/Ni/Sn three layers) |
3. Features
SMD type suitable for high density mounting
Excellent clamping ratio and strong capability of voltage surge suppression
High voltage varistor, suitable for AC circuit
4. Applications
Used for Power supply, Network Interface, LED lighting.
Able to replace part of leaded Varistor
Chip Varistor for High Surge Current Suppression
Structure and Dimensions
SMD type, suitable for high density mounting Excellent clamping ratio and strong capabil tyi of
voltage surge suppression
Excellent solderab lity (Ni,i Sn plating)
Applications
Used for security system, PLC, Automotive electronics, Industrial instrument, smart meters, Control and measurement equipment, etc.
