CMS 1206 SMD MOV Surge Multilayer Chip Varistor Coated With Glass Layer

CMS 1206 SMD MOV Surge Multilayer Chip Varistor Coated With Glass Layer

Product Details:

Place of Origin: CHINA
Brand Name: Uchi
Certification: ROHS,REACH
Model Number: NTC QV1206H180KT,QV0806P241KT201

Payment & Shipping Terms:

Minimum Order Quantity: 1 Reel
Price: Negotiable
Packaging Details: Tape in reel
Delivery Time: 2 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10 Billion per year
Get Best Price Contact Now

Detail Information

Features: Coated With Glass Layer, Excellenthumidity Resistance, High Reliabilityand Stability Miniature Size, No Lead, Excellent Solderability, Ideal For High Density SMT Installation Type: NTC Thermistor
Wide Operating Temperature Range:: -55℃~+125℃; Features 2: Series Of B Constant For Various Applications
Part No.: QV1206H180KT,QV0806P241KT201 QV: Chip Varistor
Tolerance Of Varistor Voltage: ±10% Varistor Voltage@1mA: 240V,470V
High Light:

CMS 1206 Multilayer Chip Varistor

,

MOV Surge Multilayer Chip Varistor

,

470V Varistor NTC Thermistor

Product Description

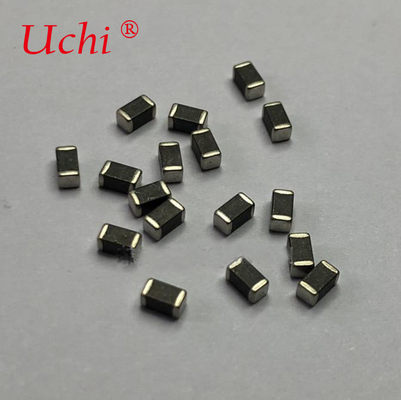

CMS 1206 SMD MOV Multilayer Surge Chip Varistor

The SMD resistor is small in size, without leads, suitable for high-density surface mounting, excellent solderability and thermal shock resistance, and suitable for glass soldering and reflow soldering.



Chip Varistor for High Surge Current Suppression

CMS 1206 SMD MOV Surge Multilayer Chip Varistor Coated With Glass Layer 0

① Type
QV  Chip Varistor



②  (mm)

External Dimension L×W

1206 3.2× 1.6
1210 3.2×2.5
1812 4.5×3.2
2220 5.7×5.0



③ Application Code
H

High Surge Current Suppression





④

Maximum DC Operating Voltage

180 18V
650 65V





⑤

Tolerance of Varistor Voltage

K ±10%
L ±15%





⑥ Packaging
T Tape
B Bulk



CMS 1206 SMD MOV Surge Multilayer Chip Varistor Coated With Glass Layer 1

Chip Varistor for Power-lines Protection

CMS 1206 SMD MOV Surge Multilayer Chip Varistor Coated With Glass Layer 2



① Type
QV  Chip Varistor



③  Application Code
P  Power-lines Protection



④ Varistor Voltage @ 1mA
241 240V
471 470V



⑥  Packaging
T Tape
B Bulk





②  (mm)

External Dimension L×W

0806 2.0×1.6
1206 3.2×1.6
1210 3.2×2.5
1812 4.5×3.2
2220 5.7×5.0



⑤ Tolerance of Varistor Voltage
K ±10%



⑦ Max. Su ge Current @8/20μsr
RA 2.5KV  Max. Ring Wave Voltage
201 200A





FeaturesCoated with glass layer, excellenthumidity resistance, high reliabilityand stability
Miniature size, no lead, excellent solderability, ideal for high density SMT installation
Wide operating temperature range:-55℃~+125℃;
Series of B constant for various applications

Application
Telecommunication equipmentsuch as cellphone, automobile phone, etc.
Office automation such as printer, Fax machine, projector,desktop computer, etc.
Consumer electronics such as video recorder,laptop,wearable devices, etc.
Others such as power supplies,rechargeable batteries and chargers,LED lighting fields, etc.

CMS 1206 SMD MOV Surge Multilayer Chip Varistor Coated With Glass Layer 3




Chip Varistor for High Surge Current Suppression

Structure and Dimensions



Type L (mm ) W (mm ) T (mm ) a (mm )
0402 1.00±0.10 0.50±0. 10 0.50±0. 10 0.25±0. 15
0603 1.60±0.15 0.80±0. 15 0.80±0. 15 0.30±0.20
0805 2.00±0.20 1.25±0.20 0.85±0.20 0.50±0.30
1206 3.20±0.20 1.60±0.20 1.2 Max. 0.50±0.25
1210 3.20±0.25 2.50±0.25 1.5 Max. 0.50±0.25
1812 4.50±0.30 3.20±0.30 2.5 Max. 0.25~1.0
2220 5.70±0.40

5.00±0.40



2.5 Max. 0.25~1.0



Part



Component

ZnO Semiconductor Ceramics for

Chip Varistor



Internal Electrode

(Ag or Ag-Pd)



Terminal Electrode

(Ag/Ni/Sn three layers)

 SMD type, suitable for high density mounting  Excellent clamping ratio and strong capabil tyi of

voltage surge suppression

 Excellent solderab lity (Ni,i Sn plating)

Applications

Used for security system, PLC, Automotive electronics, Industrial instrument, smart meters, Control and measurement equipment, etc.



Chip Varistor for Power-lines Protection

Structure and Dimensions

CMS 1206 SMD MOV Surge Multilayer Chip Varistor Coated With Glass Layer 2


 Type L (mm ) W (mm ) T (mm ) a (mm )
0604 0604 1.6±0.2 1.0±0.2 1.0±0.2
0805 2.0 ±0.2 1.25±0.2 1.25±0.2 0.50±0.30
0806 2.0±0.25 1.6±0.25 1.6±0.25 0.50±0.30
1206 3.2 ±0.3 1.6±0.3 1.6±0.3 0.50±0.30







 Part



Component

Semiconductor Ceramics for

Chip Varistor

Internal Electrode

(Ag or Ag-Pd)

Terminal Electrode

(Ag/Ni/Sn three layers)

Features



 SMD type suitable for high density mounting  Excellent clamping ratio and strong capabil tyi of

voltage surge suppression

 High voltage varistor, suitable for AC circuit

Applications

Used for Power supply, Network Interface, LED lighting. Able to replace part of leaded Varistor.





Please see the specification
