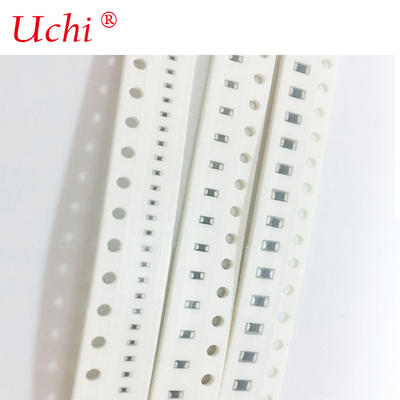

All Series 1210H220KT MOV Chip SMD Varistor MLCC Variable Resistor
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Uchi |
| Certification: | ROHS,REACH |
| Model Number: | NTC QV1210H220KT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Reel |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tape in reel |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10 Billion per year |
|
Detail Information |
|||
| Features: | Coated With Glass Layer, Excellenthumidity Resistance, High Reliabilityand Stability Miniature Size, No Lead, Excellent Solderability, Ideal For High Density SMT Installation | Type: | NTC Thermistor |
|---|---|---|---|
| Wide Operating Temperature Range:: | -55℃～＋125℃； | Features 2: | Series Of B Constant For Various Applications |
| Part No.: | QV1210H220KT | QV: | Chip Varistor |
| Packaging: | Tape | Tolerance Of Varistor Voltage: | ±10% |
| Highlight: | MLCC Variable SMD Varistor,MOV Chip SMD Varistor,MLCC Variable NTC Thermistor |
||
Product Description
Factory Sale All Series SMD Varistor 1210H220KT MOV Chip Varistor MLCC Variable Resistor
FeaturesCoated with glass layer, excellenthumidity resistance, high reliabilityand stability
Miniature size, no lead, excellent solderability, ideal for high density SMT installation
Wide operating temperature range:-55℃～＋125℃；
Series of B constant for various applications
Application
Telecommunication equipmentsuch as cellphone, automobile phone, etc.
Office automation such as printer, Fax machine, projector,desktop computer, etc.
Consumer electronics such as video recorder,laptop,wearable devices, etc.
Others such as power supplies,rechargeable batteries and chargers,LED lighting fields, etc.
(Table 1)
| Type | L (mm) | W (mm) | T (mm) | a (mm) |
| 1210 | 3.2 ±0.30 | 2.5 ±0.25 | 1.5 Max. | 0.50±0.25 |
(Table 2)
| Part | ① | ② | ③ |
|
Component |
ZnO Semiconductor Ceramics for Chip Varistor |
Internal Electrode (Ag or Ag-Pd) |
Terminal Electrode (Ag/Ni/Sn three layers) |
Product Identification(Part Number)
| ① Type | |
| QV | Chip Varistor |
| ② inch (mm) External Dimension L×W | |
| 1206 | 0. 12×0.06 (3.2×1.6) |
| 1210 | 0. 12×0. 10 (3.2×2.5) |
| ③ Application Code | |
| H |
High Surge Current Suppression |
|
④ Maximum DC Operating Voltage |
|
| 090 | 9V |
| 220 | 22V |
|
⑤ Tolerance of Varistor Voltage |
|
| K | ±10% |
| L | ±15% |
| ⑥ Packaging | |
| T | Tape |
Please see the specification
