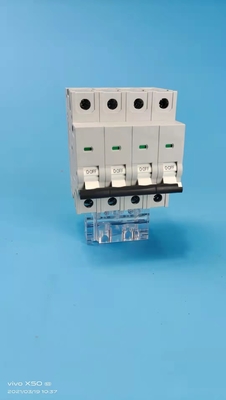

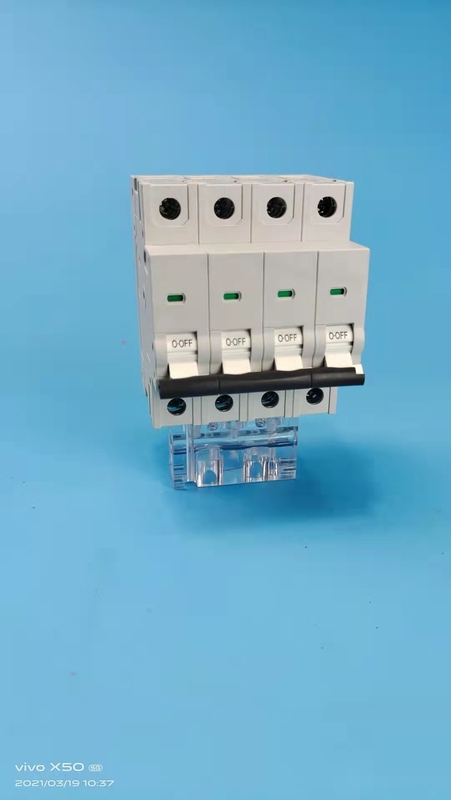

UL 94-V0 Flame Retardant 400VAC 4P Surge Circuit Breaker
|Place of Origin:||Dongguan China|
|Certification:||CE / SGS / ISO9001|
Payment & Shipping Terms:
|Minimum Order Quantity:||200 piece|
|Packaging Details:||export package / Negotiate|
|Delivery Time:||5-15 days after payment|
|Payment Terms:||T/T, L/C, Western Union, D/P|
|Supply Ability:||60000 pieces per month|
|Ue:||230AC||Certification:||CE / SGS / ISO9001|
|Poles:||4P/72mm||Material:||UL94-V0 Flame Retardant|
UL Flame Retardant Surge Circuit Breaker,
400VAC 4P Surge Circuit Breaker,
UL 94-V0 Power Surge Circuit Breaker
Surge special Circuit Breaker UL flame retardant 400VAC 4poles
Surge Special Circuit Breaker (SCB) product feature:
40KA(8/20us) discharge current capability
UL94-V0 flame retardant
Novel appearance, 4 pole connecting rod design, 72mm
Standard guide rail installation
The ability to withstand the impact of current is strong, no wrong action;
Power frequency current through more than 3±1A trip;
Running short circuit current breaking ability is strong;
Residual low pressure, protect equipment handy.effect is more better than fuse
High short-circuit current with maximum amplitude of 100kA can be cut off to protect SPD from TOV damage.
It can withstand the limp or lmax corresponding to SPD and keep on opening, and perfectly cooperate with SPD discharging current
|Short-circuit breaking capacity(Ics)||6kA|
|Rated operational voltage(Ue)||230V|
|Rated insulation voltage (Ui)||400VAC|
|Impulse withstand current (Iemax)||40kA(8/20us)|
|Power frequency trip curren (Ii)||3±1A|
|Maximum terminal connection||25mm2|
|Working environment temperature||-25℃～60℃|
|Working environment humidity (room temperature)||20%～90%RH|
Q: Can I get some samples?
A: Yes, Sample orders welcomed.
Q: Can I use my own Logo or design on goods?
A: Yes, Customized logo and design on mass production are available.
Q: What is the delivery time?
A: 3 days for samples, 7-15 days for mass production.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc.
The fuse, circuit breaker work with SPD can not do:
1, SPD deterioration, distribution line abnormal overvoltage, Can cause SPD to lead short circuit to the ground, fuse and circuit breaker can not break fast at this time, SPD fire frequently occurs.
2, when there is a lightning strike, because the fuse and circuit breaker design in the early stage as distribution components used, can not bear the instantaneous energy of lightning current, resulting in device explosion and tripping, SPD failure at this time.
3. When the lightning current passes through the circuit breaker, the Up value (voltage protection level value) is very high, and the SPD cannot play a protective role.
4, the fuse, circuit breaker short circuit analysis ability can not be used in thetransformer into the line, short circuit accident can not be cut off.
SCB series connection in front of SPD can do:
1. SCB can quickly cut off the access to prevent the lightning protection device from catching fire when the lightning protection device deteriorates and the distribution line has abnormal overvoltage, so that the lightning protection device conducts short circuit. Cut off current less than 3A;
2. When there is a lightning strike, the SCB connected in series in the front end of the lightning protection device can ensure that the 100KA lightning does not trip, not damage. To ensure the continuous and effective function of the lightning protection device;
3. The Up value (voltage protection level value) of SCB is very low when it passes through the lightning current, which is equivalent to the copper conductor of equal length;
4. Short-circuit breaking capacity exceeds that of MCCB up to 100KA;
It is applicable to the places where SPD lightning protection equipment has been installed, such as: industrial and civil construction, electrical, communication, road traffic, petrochemical and other industries of power equipment
