• 18 Shields Lightning Protection Components Overheating Anti Overcurrent
18 Shields Lightning Protection Components Overheating Anti Overcurrent

18 Shields Lightning Protection Components Overheating Anti Overcurrent

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: Surge Protection Device parts

Payment & Shipping Terms:

Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Negotiate / Export package
Delivery Time: 8 - 15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50000 pieces per month
Get Best Price Contact Now

Detail Information

Key Words: Surge Protection Device Parts Shell Material: PBT Material
Brand: Uchi Accessories Production: Full Set Of Accessories
Degree Of Protection: IP20 Certificate: CE / ROHS / ISO9001
Application: Power Protection MOQ: Negotiate
High Light:

overheating lightning protection accessories


Anti overcurrent lightning protection components


CE 18 Shields lightning protection components

Product Description

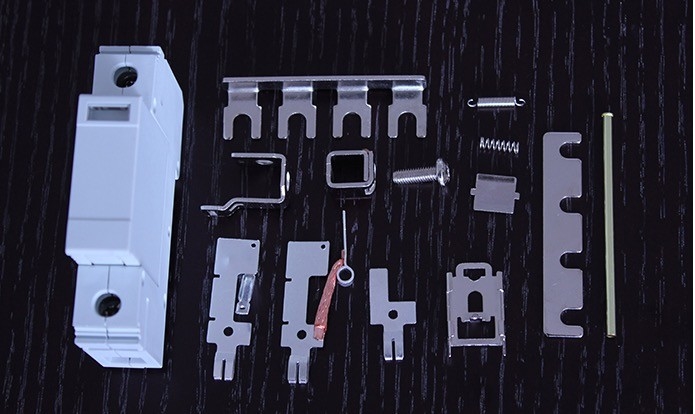

18 Shields Full Set Of Lightning Protection Devices / Lightning Protection Accessories


Anti-overcurrent and overheating protection components

The anti-overcurrent components have self-recovery fuses, current fuses, and resistors, and the anti-overheat protection and overheat detection components have temperature fuse and temperature fuse. A resettable fuse is a positive temperature coefficient thermistor. When the current flowing through it is less than its holding current (low temperature), its resistance is very small; when the current flowing through it exceeds its trigger current (temperature Increase), its resistance value increases sharply, thereby blocking the continuous intrusion of lightning current or the freewheeling of the circuit, and it can recover by itself after the temperature drops. However, due to thermal inertia, the reaction speed is very slow, generally in seconds (the greater the current or the higher the temperature, the faster the reaction). Self-recovery fuses can be used to replace current fuses, eliminating the trouble of frequent replacement. Thermal fuse and thermal fuse are a kind of temperature switch components, which are short-circuited during normal operation. When the temperature is higher than the disconnection temperature, the switch will be disconnected (unrecoverable). They are often used for overheating protection and overheating detection.

Shell material:


Using international brand nylon material and international brand PBT material, the bending strength is in accordance with GB/T9341-2008, and the impact strength of the simply supported beam is notched and unnotched. Comply with GB/T1043.1-2008, flame retardancy complies with GB/T2408-2008, excellent electrical insulation performance, and strong consistency of product surface technology.



It is made of high-precision copper, and the screws and locking sleeves are electroplated after heat treatment. The advantage is that the product is not easy to slip, the salt spray test can reach 72 hours, and the plugging force is moderate.




1. It is recommended that the maximum flow of SPD Imax: 10-60KA.

2. It is recommended that SPD be used in an environment of -40℃ to +100℃.

3. 1P, 2P, 3P, 4P can be distributed according to demand to meet various needs.

4.35mm guide rail design is convenient for subsequent installation.
