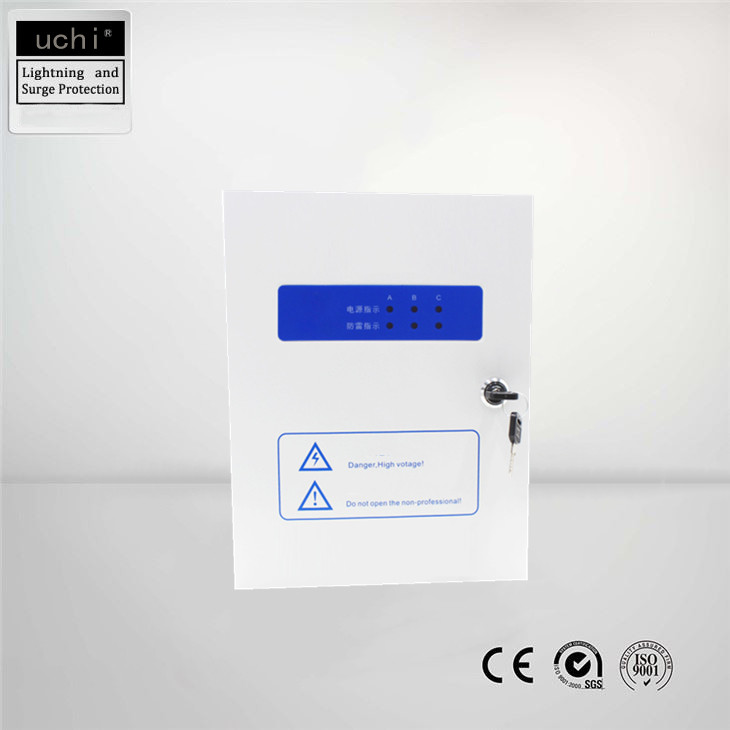

• IEC 61643-1 Lightning Protection Box Imax 160KA For Breaker Box
IEC 61643-1 Lightning Protection Box Imax 160KA For Breaker Box

IEC 61643-1 Lightning Protection Box Imax 160KA For Breaker Box

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / ISO9001 / FCC / SGS
Model Number: Power lightning protection box

Payment & Shipping Terms:

Minimum Order Quantity: 50 piece / pieces
Price: Negotiate
Packaging Details: Export package
Delivery Time: 8 - 15 days after payment
Payment Terms: T/T, L/C
Supply Ability: 10000 pieces per month
Get Best Price Contact Now

Detail Information

Name: Lightning Protection Box Protection Mode Selection: No N-G Protection Mode
Product Warranty: 1 Year Application: Sensitive Electronic Equipment
Standards: YD/T 1235.1; GB 18802.1; IEC 61643-1 Operating Temperature Range: -40℃…+80℃
High Light:

surge protector for breaker box


160KA Lightning Protection Box


IEC 61643-1 Lightning Protection Box

Product Description

Simple installation Lightning Protection Box with Standard IEC 61643-1

The distinctive feature of this product is the output residual Low pressure and fast response time, especially when lightning surge passes through the protector, subsequent current will not appear. When the lightning protection box fails due to overheating, overcurrent, or breakdown due to lightning strikes, the built-in failure trip device can automatically disconnect it from the grid.


* Bclass surge protective device for 3-phase AC power system.
* Sensitive electronic equipment
* Telecom centers
* Automatic control centers
* Intelligent buildings
* Industrial enterprises
* Medical institutes


Product Description:

Adopting Class II SPD to combine “3+1” circuit, protecting low voltage equipment from surge damages, applied in TT system, designed according to IEC61643-1/GB 18802.1
Main character:
1. Green light indicates normal and red light indicates fault for operation

2. Built-in circuit breaker, and thermal disconnection device, when the fault occurred, the thermal disconnection device will cut off the SPD from the power net, the green window will change
3. Impulse counter function, recording the lightning events
4. External wiring terminal, easy for connection, suitable for indoor application


Type   BT 5L CM 275/40 4P BT 5L CM 385/40 4P BT 5L CM 275/40 3+1 BT 5L CM 385/40 3+1
Order No.   840 883 840 887 840 884 840 888
Norminal a.c. voltage UN 230V/400V 230V/400V 230V/400V 230V/400V
Rated voltage (max. continuous a.c voltage) L/N Uc 275V 385V 275V 385V
Rated voltage (max. continuous a.c voltage) N/PE Uc 275V 385V 255V 255V
Nominal discharge current (8/20µs) L/N In 20KA 20KA 20KA 20KA
Nominal discharge current (8/20µs) N/PE In 20KA 20KA 40KA 40KA
Max. discharge current (8/20µs) L/N Imax 40KA 40KA 40KA 40KA
Max. discharge current (8/20µs) N/PE Imax 40KA 40KA 65KA 65KA
Voltage protection level L/N Up ≤1.25KV ≤1.8KV ≤1.25KV ≤1.8KV
Voltage protection level N/PE Up ≤1.25KV ≤1.8KV ≤1.5KV ≤1.5KV
Follow current extinguishing capability at Uc (N/E) IL     100Arms 100Arms
Operating temperature range   -40℃…+80℃
Cross-sectional area   25mm2 solid/35mm2 flexible
Enclosure material   black metal housing (die-casting Aluminum)
Test standards   YD/T 1235.1; GB 18802.1; IEC 61643-1
Certification   CE (LVD, EMC)



* Thermal disconnection technology with over-current protection circuit
* Working & malfunctioning status indications
* 160kA maximum surge current
* Y connection method applicable
* Simple installation and maintenance
* IP65 and able to work long term in harsh environment such as acidic, alkaline, dusty, salty and humid surroundings.
