10kA Power Connection Box , Lightning Protection Box Impulse Counter Function
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Uchi |
| Certification: | CE / ISO9001 / FCC / SGS |
| Model Number: | Power lightning protection box |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 piece / pieces |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Export package |
| Delivery Time: | 8 - 15 days after payment |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 pieces per month |
|
Detail Information |
|||
| Name: | Parallel Connection Box | In: | 10kA |
|---|---|---|---|
| Shell Material: | Hard Plastic | Protection Mode Selection: | No N-G Protection Mode |
| Product Warranty: | 1 Year | Application: | Power Entrances |
| Product Certification: | UL | Working Temperature: | –40ºC ~+75ºC |
| Protection Class: | NEMA 4X | Surge Discharge Capacity (8/20μs): | 25~50kA (each Phase) |
| High Light: | 10kA power connection box,Impulse counter power connection box,10kA Lightning Protection Box |
||
Product Description

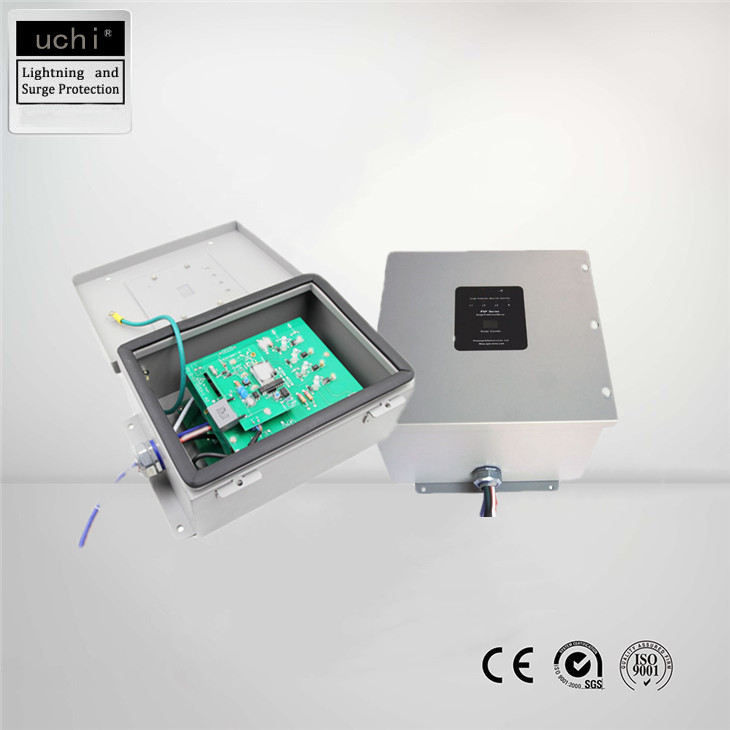

10kA Parallel Connection Box, Lightning Protection Box For The Main Power Entrances
This product is mainly designed for direct lightning or induced lightning protection at the main power entrances or main distribution cabinets of various facilities in high thunderstorm areas, and effectively clamps the line overvoltage generated by lightning strikes to avoid electrical system or equipment damage.
*With up to 300kA (per phase) surge discharge capacity, longer service life and no frequent maintenance during the life cycle*. The product adopts NEMA 4X (hard plastic) or NEMA 4 (metal) optional grade waterproof box, external standard 3/4 inch NPT waterproof cable connector, can be used for indoor and outdoor installation nearby.
*Support most of the current domestic and international power distribution systems and grounding forms, which are convenient for customers to choose; and adopt full-mode protection design to make over-voltage protection safe and reliable. Optional sine wave tracking function, which can more effectively attenuate high-frequency interference or spikes in AC power.
* Equipped with highly sensitive lightning event counting device and digital display, phase power working and protection status LED indication *, and remote signal alarm signal lead, convenient for customers to effectively monitor and maintain.
| Connection method | Parallel connection | |
| Number of ports | 1 | |
| Surge discharge capacity (8/20μs) | 25~50kA (each phase) | |
| Nominal discharge current (8/20μs) | In | 10kA |
| Rated short-circuit current(UL1449) | Isccr | 200kArms |
| The working status indicator | LED lights up, working normally | |
| Product failure indicator | LED LED lights off, product failure | |
| Power wire connection | #12AWG (L wire: black, N wire: white, PE wire: green) | |
| Use environment |
Working temperature: –40ºC ~+75ºC; Relative humidity: relative 5~95% (25ºC); 海拔 : ≤ 3km |
|
| Product size (length, width and height) | 90 x 58 x 41mm | |
| Cable gland | 1/2″NPT pipe with sealed threaded interface | |
| Shell | hard plastic, protection class: NEMA 4X | |
| Product certification | UL |
Feature
1.Comply with GB18802-11/IEC61643-11, and UL1449 and other international and domestic standards
2.Using Puth's high-performance PTMOV as the core lightning protection component, it has excellent voltage protection level and fail-safe performance. In the event of a power distribution system failure (TOV), the protection module (PTMOV) can safely exit the grid to avoid various failures caused by Faults, such as grid failures or even electrical fires, etc.
3.Full mode protection (L-N, L-PE, N-PE, L-L), to provide protection for all possible lines through which the surge current passes, common mode overvoltage and differential mode overvoltage can be effectively suppressed, and protection level distortion is avoided.
4.Optimize parallel redundancy technology to realize module current sharing. The current flowing through each module (PTMOV) decreases as the number of parallel connections increases, so the product has a longer life expectancy and is more effective in resisting short-term multiple lightning strikes or high-intensity lightning currents . When a module is damaged or aging due to lightning strikes, the module automatically exits the protection sequence without affecting the overall protection function of the product, so the protector does not require frequent maintenance during the life cycle *.
7.Optimized internal structure design, and due to the excellent characteristics of PTMOV, the product is compact and saves installation space
8.With failure LED display, and alarm function.
9.Built-in lightning event monitoring device to accurately record the frequency of lightning or surge events.
10.IP65 (or NEMA4, 4X) waterproof housing, suitable for indoor and outdoor installation.
Scope of application:
The second-level lightning protection box is mainly installed in the floor power distribution, computer room power distribution and other environments, as the second-level lightning protection of the power distribution system, discharges the remaining surge, and cooperates with the first-level lightning protection box to meet the lightning protection acceptance Requirements and protection needs.
Product Description:
Adopting Class II SPD to combine “3+1” circuit, protecting low voltage equipment from surge damages, applied in TT system, designed according to IEC61643-1/GB 18802.1
Main character:
1. Green light indicates normal and red light indicates fault for operation
2. Built-in circuit breaker, and thermal disconnection device, when the fault occurred, the thermal disconnection device will cut off the SPD from the power net, the green window will change
3. Impulse counter function, recording the lightning events
4. External wiring terminal, easy for connection, suitable for indoor application
| Type | BT 5L CM 275/40 4P | BT 5L CM 385/40 4P | BT 5L CM 275/40 3+1 | BT 5L CM 385/40 3+1 | |
| Order No. | 840 883 | 840 887 | 840 884 | 840 888 | |
| Norminal a.c. voltage | UN | 230V/400V | 230V/400V | 230V/400V | 230V/400V |
| Rated voltage (max. continuous a.c voltage) L/N | Uc | 275V | 385V | 275V | 385V |
| Rated voltage (max. continuous a.c voltage) N/PE | Uc | 275V | 385V | 255V | 255V |
| Nominal discharge current (8/20µs) L/N | In | 20KA | 20KA | 20KA | 20KA |
| Nominal discharge current (8/20µs) N/PE | In | 20KA | 20KA | 40KA | 40KA |
| Max. discharge current (8/20µs) L/N | Imax | 40KA | 40KA | 40KA | 40KA |
| Max. discharge current (8/20µs) N/PE | Imax | 40KA | 40KA | 65KA | 65KA |
| Voltage protection level L/N | Up | ≤1.25KV | ≤1.8KV | ≤1.25KV | ≤1.8KV |
| Voltage protection level N/PE | Up | ≤1.25KV | ≤1.8KV | ≤1.5KV | ≤1.5KV |
| Follow current extinguishing capability at Uc (N/E) | IL | 100Arms | 100Arms | ||
| Operating temperature range | -40℃…+80℃ | ||||
| Cross-sectional area | 25mm2 solid/35mm2 flexible | ||||
| Enclosure material | black metal housing (die-casting Aluminum) | ||||
| Test standards | YD/T 1235.1; GB 18802.1; IEC 61643-1 | ||||
| Certification | CE (LVD, EMC) | ||||
Q: Can I use my own Logo or design on goods?
A: Yes, Customized logo and design on mass production are available.
Q:What is the delivery time?
A: 3 days for samples, 7-15 days for mass production.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc.
