Name: | High Energy Varistor 34R | In: | 40KA/30KA |
---|---|---|---|
Imax: | 80KA/60KA | Shape: | Disc Radial Leaded |
Varistor Type: | Metal Oxide Varistor | Packaging Details: | Bulk |
Temperature Range: | -40℃~+85℃ | AC: | 130V-750V |
Highlight: | diode protection spd varistor,34R surge suppressor varistor,Edge Passivation Insulation surge suppressor varistor |
Product Description

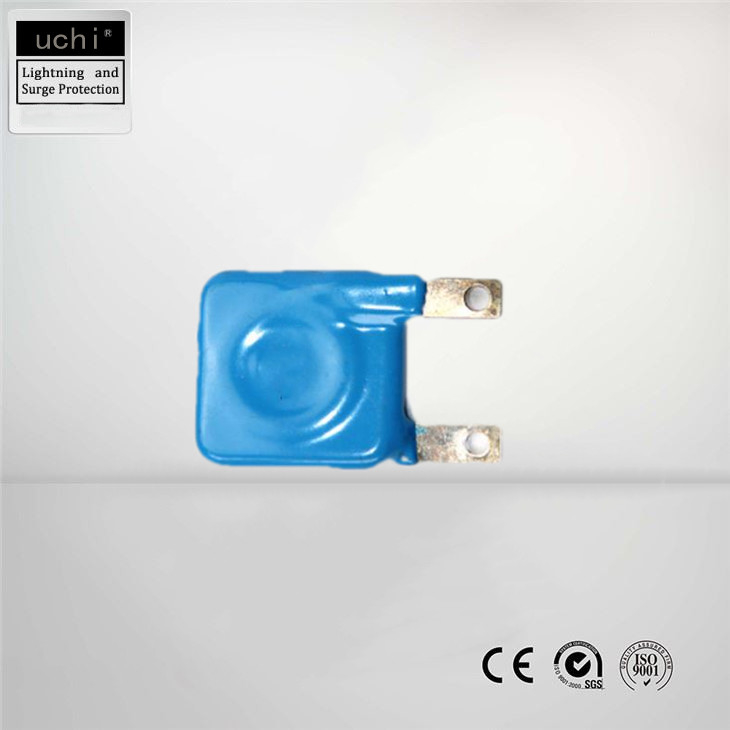

Original High-quality High Energy Varistor 34R , Metal Oxide Varistor
Part number code for “UCHI ”
Sizes | MAX | d | d-1(±0.1) | A | A-1 | K | |
D | H | ||||||
14D | 16.5 | 21.0 | 0.8 | 7.5±1.0 | ≦3.0 | ||
20D | 21.0 | 26.0 | 1.0 | 10±1.0 | ≦3.0 | ||
25D | 26.0 | 31.0 | 1.0 | 10±1.0 | ≦3.0 | ||
32D | 35.0 | 40.0 | 7×0.5 | 1.5 | 25.4±1.0 | 25.4±1.0 | ≦5.0 |
40D | 42.0 | 48.0 | 7×0.5 | 1.5 | 25.4±1.0 | 25.4±1.0 | ≦5.0 |
53D | 56.0 | 61.0 | 9.6×0.7 | 25.4±1.0 | ≦5.0 | ||
20S / 22L | 22.0 | 25.0 | 4×0.3 | 1.0 | 22±1.0 | 10±1.0 | ≦3.0 |
22S | 28.0 | 28.0 | 4×0.4 | 1.0 | 22±1.0 | 10±1.0 / 12.5±1.0 | ≦5.0 |
30S | 35.0 | 28.0 | 4×0.5 | 1.5 | 22±1.0 / 25.4±1.0 | 22±1.0 | ≦5.0 |
34L | 33.0 | 38.0 | 6×0.5 / 7×0.5 | 1.5 | 22±1.0 / 25.4±1.0 | 22±1.0 | ≦5.0 |
34S | 36.0 | 40.0 | 6×0.5 / 7×0.5 | 1.5 | 22±1.0 / 25.4±1.0 | 22±1.0 | ≦5.0 |
34R | 36.0 | 40.0 | 6×0.5 / 7×0.5 | 22±1.0 / 25.4±1.0 | |||
34Z | 41.0 | 40.0 | 7×0.5 | 25.4±1.0 | ≦5.0 |
UCHI.34R Specication
High energy varistors (MOVs) are designed for various applications. UCHI® offers the thinnest Type 1 (class I) varistors and high quality Type 2 (class II) varistors with the highest Imax capability, on the market.
The Epoxy coated type products are heavy-duty metal oxide varistors designed mainly for industrial applications and SPDs. They are larger diameter versions of the conventional metal oxide varistor disc components. They can have standard rigid terminals from UCHI® or can be custom designed to fulfill a customer's need to handle high current and energy, facilitating the mounting onto printed circuit boards. The Epoxy Coated Series offers excellent surge protection for use in industrial and consumer electrical equipment, power distribution, control equipment, security/fire alarm systems, railroad equipment, switchboards, computers, telecommunications, power supplies and motor controls.
Maximum | Varistor Voltage | Clamping | Rated voltage | Maximum | Maximum | Typical | |||||
Model | Allowable | voltage | Peak Current | Energy | Capacitance | ||||||
Number | Voltage | (max.) | (8/20μs) | (Joule) | (Reference) | ||||||
33.5*33.5mm | AC. Rms | DC | V1.0mA ( V ) | VC | IP | reference | In. 10 times | I Max. | 10/1000 | @ 1KHz | |
( V ) | ( V ) | min. | max. | ( V ) | ( A ) | ( V ) | ( KA ) | μs | ( pf ) | ||
34R201K | 130 | 170 | 185 | 225 | 340 | 300 | AC 125 | 40 | 80 | 330 | 8000 |
34R221K | 140 | 180 | 198 | 242 | 360 | 300 | 360 | 7800 | |||
34R241K | 150 | 200 | 216 | 264 | 395 | 300 | 390 | 7600 | |||
34R271K | 175 | 225 | 243 | 297 | 455 | 300 | 420 | 7200 | |||
34R301K | 190 | 250 | 270 | 330 | 500 | 300 | 465 | 6800 | |||
34R331K | 210 | 275 | 297 | 363 | 550 | 300 | AC 250 | 500 | 6400 | ||
34R361K | 230 | 300 | 324 | 396 | 595 | 300 | Telephone | 510 | 6000 | ||
34R391K | 250 | 320 | 351 | 429 | 650 | 300 | test | 530 | 4800 | ||
34R431K | 275 | 350 | 387 | 473 | 710 | 300 | AC 250 | 600 | 4600 | ||
34R471K | 300 | 385 | 423 | 517 | 775 | 300 | 650 | 4100 | |||
34R511K | 320 | 415 | 459 | 561 | 845 | 300 | 700 | 4000 | |||
34R561K | 350 | 460 | 504 | 616 | 925 | 300 | 730 | 3800 | |||
34R621K | 385 | 505 | 558 | 682 | 1025 | 300 | 780 | 3600 | |||
34R681K | 420 | 560 | 612 | 748 | 1120 | 300 | 810 | 3300 | |||
34R751K | 460 | 615 | 675 | 825 | 1240 | 300 | 850 | 3000 | |||
34R781K | 485 | 640 | 702 | 858 | 1290 | 300 | 930 | 2850 | |||
34R821K | 510 | 670 | 738 | 902 | 1355 | 300 | AC 380 or G | 30 | 60 | 970 | 2700 |
34R911K | 550 | 745 | 819 | 1001 | 1500 | 300 | 1050 | 2100 | |||
34R951K | 585 | 765 | 855 | 1045 | 1570 | 300 | 1080 | 1900 | |||
34R102K | 625 | 825 | 900 | 1100 | 1650 | 300 | 1120 | 1700 | |||
34R112K | 680 | 895 | 990 | 1210 | 1815 | 300 | 1250 | 1520 | |||
34R112K | 750 | 990 | 1080 | 1320 | 1980 | 300 | 1250 | 1400 |
Provided in Disc Form For Unique Packing by high-energy disc varistors (MOVs) intended for special applications Customer
Solderable Electrode Finish Options
Pressure Contacts and/or Disc Stacking May Be Utilized
Available Edge Passivation Insulation
No Derating Up to 85ºC Ambient.
Applications
Transistor, diode or TRIAC semiconductor protection
Surge protection in consumer electronics
Surge protection in electronic home appliances, gas and petroleum appliances
Relay and electromagnetic valve surge absorption
(1). transistor, IC, SCR and semiconductor switching element and a variety of electronic, electrical equipment of over voltage
protection
(2) home appliances surge absorption and overvoltage protection
(3) industrial electrical surge absorption
(4) to eliminate electrostatic discharge and noise signal
(5) surge absorption of relays and solenoid valves
(6). The leakage switch overvoltage protection
All landowners telephone program-controlled switches and lightning protection and overvoltage protection of communications
equipment
