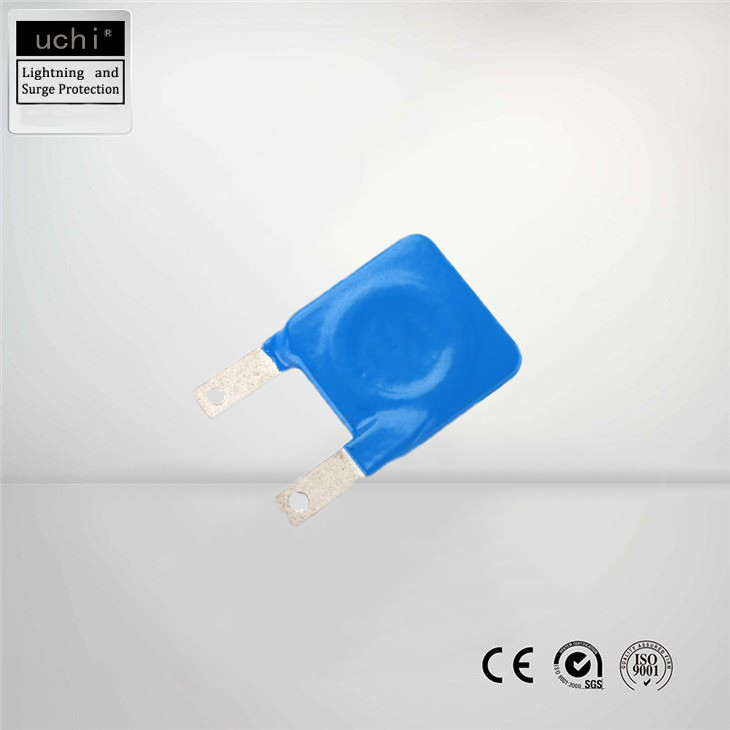

• 34H Varistor Overvoltage Protection , Oxide Varistor 25KA Pressure Contacts
34H Varistor Overvoltage Protection , Oxide Varistor 25KA Pressure Contacts

34H Varistor Overvoltage Protection , Oxide Varistor 25KA Pressure Contacts

Product Details:

Place of Origin: Dongguan China
Brand Name: UCHI
Certification: CE / SGS / ISO9001
Model Number: OBV-34H

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Packaging Details: Export package
Delivery Time: 2 Weeks
Payment Terms: T/T, L/C
Supply Ability: 100,000 Pieces Per Month
Get Best Price Contact Now

Detail Information

Name: High Energy Varistor 34H In: 25KA/30KA
Imax: 25KA/50KA/60KA Shape: Disc Radial Leaded
Varistor Type: Metal Oxide Varistor Packaging Details: Bulk
Temperature Range: -40℃~+85℃ AC: 60V-440V
High Light:

Pressure Contacts oxide varistor

,

34H varistor overvoltage protection

,

25KA varistor overvoltage protection

Product Description

Factory Wholesale High Energy Varistor 34H , 25KA/50KA/60KA Varistor

Part number code for “UCHI ”



Sizes MAX d d-1(±0.1) A A-1 K
D H
14D 16.5 21.0   0.8   7.5±1.0 ≦3.0
20D 21.0 26.0   1.0   10±1.0 ≦3.0
25D 26.0 31.0   1.0   10±1.0 ≦3.0
32D 35.0 40.0 7×0.5 1.5 25.4±1.0 25.4±1.0 ≦5.0
40D 42.0 48.0 7×0.5 1.5 25.4±1.0 25.4±1.0 ≦5.0
53D 56.0 61.0 9.6×0.7   25.4±1.0   ≦5.0
20S / 22L 22.0 25.0 4×0.3 1.0 22±1.0 10±1.0 ≦3.0
22S 28.0 28.0 4×0.4 1.0 22±1.0 10±1.0 / 12.5±1.0 ≦5.0
30S 35.0 28.0 4×0.5 1.5 22±1.0 / 25.4±1.0 22±1.0 ≦5.0
34L 33.0 38.0 6×0.5 / 7×0.5 1.5 22±1.0 / 25.4±1.0 22±1.0 ≦5.0
34S 36.0 40.0 6×0.5 / 7×0.5 1.5 22±1.0 / 25.4±1.0 22±1.0 ≦5.0
34R 36.0 40.0 6×0.5 / 7×0.5   22±1.0 / 25.4±1.0
34Z 41.0 40.0 7×0.5   25.4±1.0   ≦5.0



34H Varistor Overvoltage Protection , Oxide Varistor 25KA Pressure Contacts 0



34H Varistor Overvoltage Protection , Oxide Varistor 25KA Pressure Contacts 1

UCHI.34H Specication



High energy varistors (MOVs) are designed for various applications. UCHI® offers the thinnest Type 1 (class I) varistors and high quality Type 2 (class II) varistors with the highest Imax capability, on the market.



The Epoxy coated type products are heavy-duty metal oxide varistors designed mainly for industrial applications and SPDs. They are larger diameter versions of the conventional metal oxide varistor disc components. They can have standard rigid terminals from UCHI® or can be custom designed to fulfill a customer's need to handle high current and energy, facilitating the mounting onto printed circuit boards. The Epoxy Coated Series offers excellent surge protection for use in industrial and consumer electrical equipment, power distribution, control equipment, security/fire alarm systems, railroad equipment, switchboards, computers, telecommunications, power supplies and motor controls.



Model Number 34×34 (mm) Maximum Varistor Voltage Clamping Rated voltage Maximum Maximum Typical
Allowable voltage Peak Current Energy Capacitance
Voltage (max.) (8/20μs) (Joule) (Reference)
A.C.rms DC V1.0mA( V ) VC IP reference In. 10times I Max. 10/1000 @ 1KHz
( V ) ( V ) min. max. ( V ) ( A ) ( V ) ( KA ) μs ( pf )
34H101K 60 85 90 110 165 300 DC 48 25 45 195 15000
34H121K 75 100 108 132 200 300 DC 60 235 12200
34H201K 130 170 185 225 340 300 AC 125 25 50 400 6750
34H221K 140 180 198 242 360 300 450 6400
34H241K 150 200 222 270 395 300 480 5650
34H271K 180 225 256 310 455 300 540 5100
34H301K 190 250 270 330 500 300 600 4510
34H331K 210 275 297 363 550 300 AC 250 30 60 656 4150
34H361K 230 300 324 396 595 300 Telephone 745 3750
34H391K 250 320 362 440 650 300 test 830 3500
34H431K 275 350 387 473 710 300 AC 250 1050 2950
34H471K 300 385 423 517 775 300 1150 2880
34H511K 320 415 459 561 845 300 1200 2650
34H561K 350 460 504 616 925 300 1300 2450
34H621K 385 505 558 682 1025 300 1400 2200
34H681K 420 560 612 748 1120 300 1400 2000
34H711K 440 575 640 781 1170 300 1450 1820


Provided in Disc Form For Unique Packing by high-energy disc varistors (MOVs) intended for special applications Customer

Solderable Electrode Finish Options
Pressure Contacts and/or Disc Stacking May Be Utilized
Available Edge Passivation Insulation
No Derating Up to 85ºC Ambient.


Applications



Transistor, diode or TRIAC semiconductor protection
Surge protection in consumer electronics
Surge protection in electronic home appliances, gas and petroleum appliances
Relay and electromagnetic valve surge absorption


Recommended application areas

(1). transistor, IC, SCR and semiconductor switching element and a variety of electronic, electrical equipment of over voltage
protection
(2) home appliances surge absorption and overvoltage protection
(3) industrial electrical surge absorption
(4) to eliminate electrostatic discharge and noise signal
(5) surge absorption of relays and solenoid valves
(6). The leakage switch overvoltage protection
All landowners telephone program-controlled switches and lightning protection and overvoltage protection of communications
equipment
