Name: High Energy Varistor 34S In: 20KA
Imax: 40KA Shape: Disc Radial Leaded
Varistor Type: Metal Oxide Varistor Packaging Details: Bulk
Temperature Range: -40℃~+85℃ AC: 510V-680V
High Light:

20KA High Energy Varistor

,

20KA varistor capacitor

,

Type 1 High Energy Varistor

Product Description

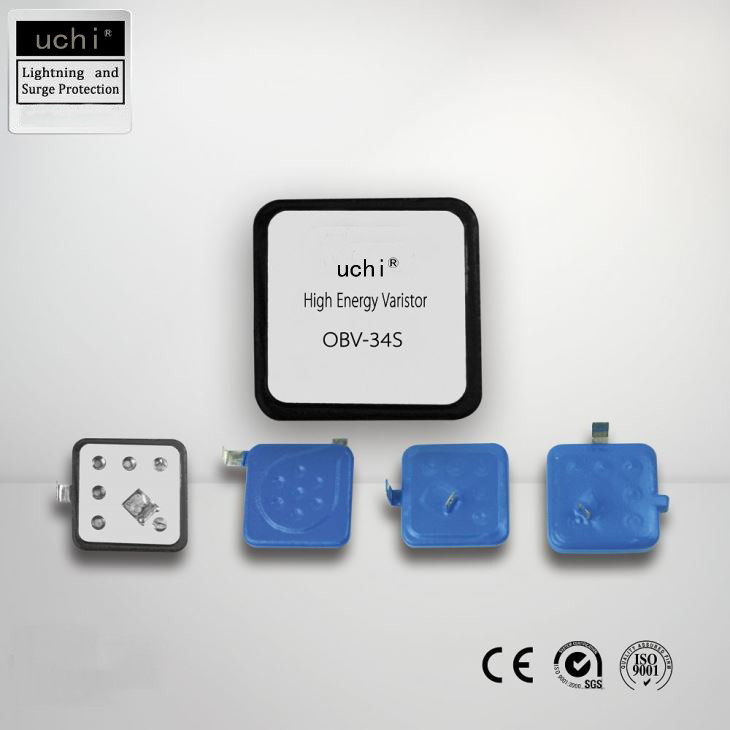

In 20KA Imax 40KA Metal Oxide Varistor ,High Energy Varistor 34S

Part number code for “UCHI ”





Sizes MAX d d-1(±0.1) A A-1 K
D H
14D 16.5 21.0   0.8   7.5±1.0 ≦3.0
20D 21.0 26.0   1.0   10±1.0 ≦3.0
25D 26.0 31.0   1.0   10±1.0 ≦3.0
32D 35.0 40.0 7×0.5 1.5 25.4±1.0 25.4±1.0 ≦5.0
40D 42.0 48.0 7×0.5 1.5 25.4±1.0 25.4±1.0 ≦5.0
53D 56.0 61.0 9.6×0.7   25.4±1.0   ≦5.0
20S / 22L 22.0 25.0 4×0.3 1.0 22±1.0 10±1.0 ≦3.0
22S 28.0 28.0 4×0.4 1.0 22±1.0 10±1.0 / 12.5±1.0 ≦5.0
30S 35.0 28.0 4×0.5 1.5 22±1.0 / 25.4±1.0 22±1.0 ≦5.0
34L 33.0 38.0 6×0.5 / 7×0.5 1.5 22±1.0 / 25.4±1.0 22±1.0 ≦5.0
34S 36.0 40.0 6×0.5 / 7×0.5 1.5 22±1.0 / 25.4±1.0 22±1.0 ≦5.0
34R 36.0 40.0 6×0.5 / 7×0.5   22±1.0 / 25.4±1.0
34Z 41.0 40.0 7×0.5   25.4±1.0   ≦5.0



In 20KA High Energy Varistor Capacitor Type 1 For Industrial Applications 0



In 20KA High Energy Varistor Capacitor Type 1 For Industrial Applications 1

UCHI.34S SPECIFICATION



High energy varistors (MOVs) are designed for various applications. UCHI® offers the thinnest Type 1 (class I) varistors and high quality Type 2 (class II) varistors with the highest Imax capability, on the market.



The Epoxy coated type products are heavy-duty metal oxide varistors designed mainly for industrial applications and SPDs. They are larger diameter versions of the conventional metal oxide varistor disc components. They can have standard rigid terminals from UCHI® or can be custom designed to fulfill a customer's need to handle high current and energy, facilitating the mounting onto printed circuit boards. The Epoxy Coated Series offers excellent surge protection for use in industrial and consumer electrical equipment, power distribution, control equipment, security/fire alarm systems, railroad equipment, switchboards, computers, telecommunications, power supplies and motor controls.



Model Number 34*34mm Maximum Varistor Voltage Clamping Rated voltage Maximum Maximum Maximum Typical
Allowable voltage Peak Current Peak Current Energy Capacitance
Voltage (max.) (8/20μs) (8/20μs) (Joule) (Reference)
Normal Type Silver Disc AC.Rms DC V1.0mA( V ) VC IP reference In.10times I Max. i Max. 10/1000 @ 1KHz
Type ( V ) ( V ) min. max. ( V ) ( A ) ( V ) ( KA ) (KA) μs ( pf )
34S470K 34A470K 30 38 42 52 93 60 DC 24 10 20 20 96 35000
34S560K 34A560K 35 45 50 63 110 60 115 29500
34S680K 34A680K 40 56 61 75 135 60 136 24200
34S820K 34A820K 50 65 74 90 135 300 DC 48 15 30 30 156 17950
34S101K 34A101K 60 85 90 110 165 300 195 15000
34S121K 34A121K 75 100 108 132 200 300 DC 60 20 45 50 235 12200
34S151K 34A151K 95 125 135 165 250 300 296 10000
34S181K 34A181K 115 150 162 198 300 300 AC 100 350 8250
34S201K 34A201K 130 170 185 225 340 300 AC 125 400 6750
34S221K 34A221K 140 180 198 242 360 300 450 6400
34S241K 34A241K 150 200 222 270 395 300 480 5650
34S271K 34A271K 180 225 256 310 455 300 540 5100
34S301K 34A301K 190 250 270 330 500 300 600 4510
34S331K 34A331K 210 275 297 363 550 300 AC 250 20 45 50 656 4150
34S361K 34A361K 230 300 324 396 595 300 Telephone 745 3750
34S391K 34A391K 250 320 362 440 650 300 test 830 3500
34S431K 34A431K 275 350 387 473 710 300 AC 250 920 2950
34S471K 34A471K 300 385 423 517 775 300 1000 2880
34S511K 34A511K 320 415 459 561 845 300 1060 2650
34S561K 34A561K 350 460 504 616 925 300 1150 2450
34S621K 34A621K 385 505 558 682 1025 300 1250 2200
34S681K 34A681K 420 560 612 748 1120 300 1250 2000
34S751K 34A751K 460 615 675 825 1240 300 1280 1820
34S781K 34A781K 485 640 702 858 1290 300 1350 1750
34S821K 34A821K 510 670 738 902 1355 300 AC 380 or G 20 40 45 1395 1650
34S911K 34A911K 550 745 819 1001 1500 300 1475 1500
34S951K 34A951K 575 760 855 1045 1570 300 1485 1430
34S102K 34A102K 625 825 900 1100 1650 300 1550 1350
34S112K 34A112K 680 895 990 1210 1815 300 1700 1230
34S122K 34A122K 750 980 1150 1320 1980 300 15 40 40 1750 1135
34S142K 34A142K 850 1120 1315 1540 2310 300 1750 970
34S162K 34A162K 1000 1320 1550 1760 2640 300 2000 840
34S182K 34A182K 1100 1485 1700 1980 2970 300 2000 800



  Clamping Voltage ±10 %(V)
  0.5KA 3KA 5KA 10KA 20KA 40KA
34S101K 165 195 210 240 300 400
34S241K 370 385 450 500 600 750
34S431K 650 725 760 890 970 1100
34S511K 750 850 900 1015 1150 1370
34S621K 850 900 1000 1170 1450 1740
34S911K 1250 1450 1550 1750 2000 2250
34S112K 1550 1750 1850 2150 2400 2800



SAFETY
UL1449 2nd 470-112K PC
UL1449 3rd 201-112K Type3
UL1449 3rd all Type1
CUL 3rd N/A
CSA   N/A
VDE   330-162K proving



Features


Provided in Disc Form For Unique Packing by high-energy disc varistors (MOVs) intended for special applications Customer

Solderable Electrode Finish Options
Pressure Contacts and/or Disc Stacking May Be Utilized
Available Edge Passivation Insulation
No Derating Up to 85ºC Ambient.


Applications



Transistor, diode or TRIAC semiconductor protection
Surge protection in consumer electronics
Surge protection in electronic home appliances, gas and petroleum appliances
Relay and electromagnetic valve surge absorption


Recommended application areas

(1). transistor, IC, SCR and semiconductor switching element and a variety of electronic, electrical equipment of over voltage
protection
(2) home appliances surge absorption and overvoltage protection
(3) industrial electrical surge absorption
(4) to eliminate electrostatic discharge and noise signal
(5) surge absorption of relays and solenoid valves
(6). The leakage switch overvoltage protection
All landowners telephone program-controlled switches and lightning protection and overvoltage protection of communications
equipment
