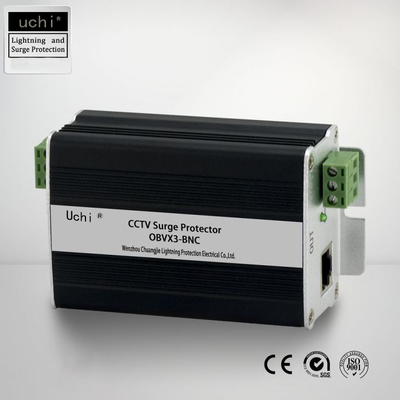

• Uc 8Vdc CCTV Lightning Arrester , Security Camera Surge Protector CE Approved
Uc 8Vdc CCTV Lightning Arrester , Security Camera Surge Protector CE Approved

Uc 8Vdc CCTV Lightning Arrester , Security Camera Surge Protector CE Approved

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBVX3

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Name: Security Camera Surge Protector In: 5kA
Imax: 10KA Line Current IL: 5A
Uc: 6VDC Protection Level Up: 20V
Response Time: <10ns CertificationCE,CQC: CE / CQC / SGS
Color: Black Connection: BNC
High Light:

Uc 8Vdc Security Camera Surge Protector


CCTV Lightning Arrester


CE CCTV Lightning Arrester

Product Description

10KA CCTV Surge Protection Device , Security Camera Surge Protector


CCTV Surge Protector

CCTV surge protector is a single channel, in-line, coaxial multi-stage video surge protector for analog cameras or head-end applications. CCTV camera surge protector is designed to provide multi-stage surge protection for one channel of video. The unit has MNC type connectors at the input and output for connection to the coax and is ideally suited for small or restricted spaces where a single line of video needs to be protected. CCTV Surge Protector provides power to the camera with the same unit.


• Security Camera Surge Protector
• Power, Data and Video in a Single Unit
• Hybrid GDT and Diode Technology
• 24, 120, 230V Configurations
• Compact Aluminium Housing
• Options for 1 or 2 Pair or Cat.5

Model and Meaning
OBVX-3-BNC (Video / Power / Data)
OBVX-2-RJ45 (Video / Power)
OBVX-2-BNC (Video / Powe

Technical Parameters


Model: OBVX-3-BNC / OBVX-2-RJ45 / OBVX-2-BNC
Nominal Voltage Un 24Vdc 120Vac 230Vac
Maximum Voltage Uc 30Vdc 150Vac 255Vac
Line Current IL 5A
Nomimal Discharge Current In (8/20µs) kA 5kA
Maximum Discharge Current Imax (8/20µs) 10kA
Protection Level Up 0.3kV 0.8kV 1.2kV
Connection Screw terminal : maximum 2.5 mm2
Failure Mode Power failure and green led off
Maximum Voltage Uc 8Vdc
Nomimal Discharge Current In (8/20µs) kA 5kA
Maximum Discharge Current Imax (8/20µs) 10kA
Protection Level Up 20V
Connection Screw terminal : maximum 1.5 mm2
Failure Mode Short-circuit status (transmission fault)
Video (BNC / RJ45)
Maximum Voltage Uc 6Vdc
Nomimal Discharge Current In (8/20µs) kA 5kA
Maximum Discharge Current Imax (8/20µs) 10kA
Protection Level Up 20V
Connection BNC female coaxial connector / RJ45
Failure Mode Short-circuit status (transmission fault)



1. Multi-function over-voltage protection, simple structure, less residual voltage, rapid transmission rate.

2. Applicable for combination video signal and AC power.

3. Convenient installation, maintenance simply,

Application Scope

1. Monitor video with cradle head.

2. Monitor video without cradle head.

3. Other signal equipments.


●AC/DC distribution
●Power supplies
●Industrial automation
●Motor controls systems
●PLC applications
●Power transfer equipment
●HVAC applications
● AC drives
●UPS systems
●Security systems
●IT/Data centers

Note: Lightning protection is probabilistic protection, and we cannot provide 100% protection.

First, lightning discharge itself has a certain degree of randomness, and lightning parameters have certain statistical properties, which determines that all protective measures based on these statistical characteristics of lightning parameters cannot provide 100% protection. Such as: direct lightning protection-shielding characteristics; lightning current amplitude, waveform, etc. have statistical properties;
Second, the lightning protection equipment cannot prevent the formation of lightning flashes;
Third, lightning protection devices cannot ideally eliminate all interference voltages/currents. The fundamental purpose of taking protective measures is to ensure that most of the energy caused by interference does not spread to the vulnerable parts of the device and the staff.
Finally, the cost of protection against high-level surges with a small probability of occurrence has risen sharply.


Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):

Type No. Rated Voltage(V) Un Continuous Voltage Uc(V~) Standard Discharge Current In(KA)

Max Discharge Current

Protection Level(KA~) Response Time(ns)
DGM1(2)-D5 220/380


5 10 1.2 ≤25
DGM1(2)-D10 10 2 1.6
DGM1(2)-C20 20 40 1.8
DGM13-B30 30 60 .2.2
DGM3(4)-B40 10 80 2.4
DGM(4)-B60 60 100 2.8
DGM-N-PE 220/255 40/60 60/80 1.2 ≤100


Tip: How can I distinguish the quality of the lightning arrester?

1. It can be seen from the reaction time: determine whether the lightning arrester can respond in time and quickly discharge the lightning current.

2. It can be seen from the insertion loss: this refers to the installation of a lightning protector, the impact of this lightning protector on the line, the smaller the better

3. It can be seen from the number of impact resistance: determines the service life of the lightning arrester. Generally, the gas discharge tube will not drop after being placed for a period of time. If you want to check its quality, you can use an adjustable high-voltage DC power supply to test .

What skills should lightning protectors have in the selection?
1.Confirm power supply system
First of all, you must determine what your power distribution system is like, whether it is TT, TN or IT system. After determining the power distribution system, you can choose the protection mode and wiring method of the lightning arrester to select the appropriate lightning arrester.
For example, TN-C uses 3P lightning protection device, TN-S uses 4P, TT uses 3P+N, etc.
2.Know the main parameters of the lightning arrester.
