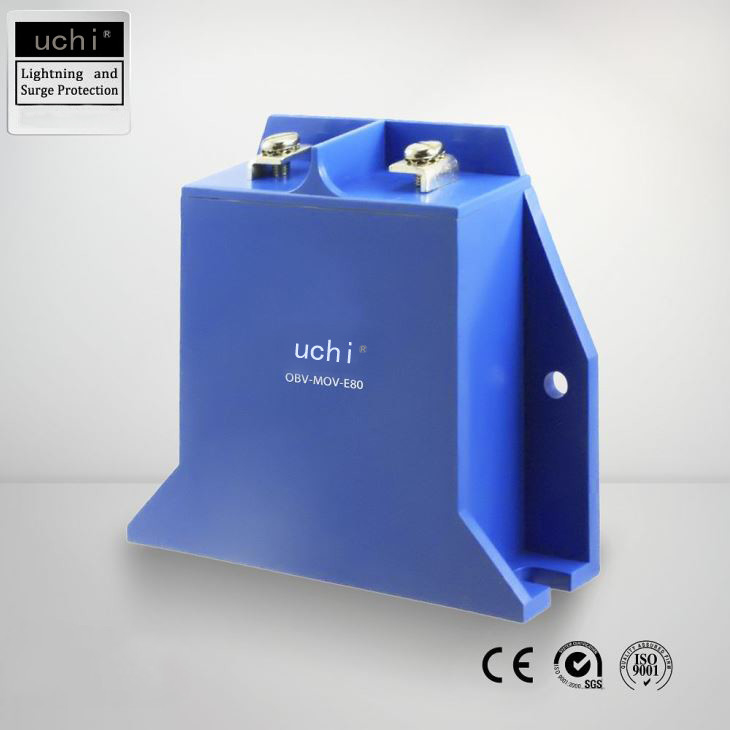

Transient Mov Surge Protector Operating Temperature -40-85 Degrees Celsius

Transient Mov Surge Protector Operating Temperature -40-85 Degrees Celsius

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV-MOV-E80

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece / pieces
Price: Negotiate Ex-work / FOB price
Packaging Details: Export package
Delivery Time: 8 - 15 days after payment
Payment Terms: TT / LC
Supply Ability: 50000 pieces per month
Get Best Price Contact Now

Detail Information

High Peak Current: Imax 70kA Type: Varistor
Discharge Current: 70kA OEM&ODM: Welcome
Operating Temperature: -40~+85 Color: Blue
Technology: Metal Oxide Package Type: SHELL
Highlight:

transient surge protector

,

85 Deg C mov surge protector

,

-40 Deg C mov surge protector

Product Description

MOV Surge Protection / Operating Temperature -40~+85 Block Varistor MOV

  • Maximum allowable voltages: 130/170 to 1100/1,400V
  • Varistor voltage: 200 to 1,800V
  • Clamping voltage: 340 to 3,030V
  • Maximum peak current (8/20µS,1time): 100,000A
  • Maximum energy: 660 to 7000J
Primary Competitive Advantages:
  • Country of Origin
  • Distributorships Offered
  • Experienced Staff
  • Guarantee/Warranty
  • International Approvals
  • Price


High Energy Varistor Transient Surge Suppressors Are Heavy-Duty Industrial Metal-Oxide Varistors (MOVs) Designed To Provide Surge Protection For Motor Controls And Power Supplies Used In Oil-Drilling, Mining,Transportation Equipment And Other Heavy Industrial AC Line Applications




Block varistor MOV characteristics



1. High energy absorption block metal oxide varistor (MOV)

2. High peak current: Imax 70kA
2. Sealed with inflaming retarding plastic and encapsulated with epoxy resin
3. Used in oil-drilling, mining, transportation equipment and other heavy industrial AC line. ability. To exposure in the air for one week, varistor voltage and leakage current is less than |+/- 10%, product performance stable.





The Uchi High Energy Varistor Series transient surge suppressors are heavy-duty industrial Metal-Oxide Varistors (MOVs) designed to provide surge protection for motor controls and power supplies used in oil-drilling, mining, transportation equipment and other heavy industrial AC line applications.

These varistors have similar package construction but differ in size and ratings. The Case High Energy Varistor Series are rated from 130 to 880VM(AC).




Benefits:


• Eliminates Dangerous Voltage Transients
• Lowers Overall System Costs by Reducing Downtime and Maintenance Costs
• Improves Component and System Reliability
• Reduces EMP/RFI Interference

Welcome to buy the the high E series of metal oxide varistors from cuaje offer a surge current capability up to 100ka and are suitable for heavy duty applications with our professional manufacturers and suppliers. We are one of the famous brands and we are equipped with a productive factory at your service. Please be free to enjoy our good price and service.




Uchi High Energy Varistor Series feature improved creep and strike capability to minimize breakdown along the package surface, a package design that provides complete electrical isolation of the disc subassembly, and rigid terminals to ensure secure wire contacts.
Welcome to buy the high energy varistor transient surge suppressors are heavy-duty industrial metal-oxide varistors (movs) designed to provide surge protection for motor controls and power supplies used in oil-drilling, mining,transportation equipment and other heavy industrial ac line applications with our professional manufacturers and suppliers. We are one of the famous brands and we are equipped with a productive factory at your service. Please be free to enjoy our good price and service.
