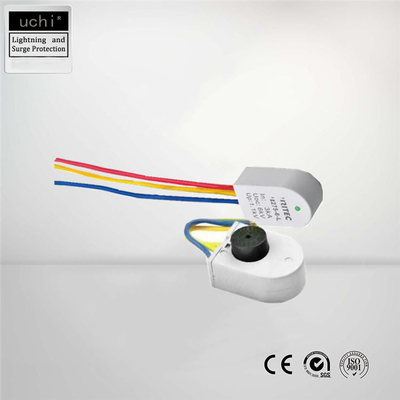

CE Certifications LED Surge Protection Device 1 Phase 6000V 3000A
|Place of Origin:||Dongguan China|
|Certification:||CE / SGS / ISO9001|
|Model Number:||LED Surge Protection Device|
Payment & Shipping Terms:
|Minimum Order Quantity:||100 piece / pieces|
|Price:||Negotiate Ex-work / FOB price|
|Packaging Details:||Export package|
|Delivery Time:||8-15 days after payment|
|Payment Terms:||TT / LC|
|Supply Ability:||50000 pieces per month|
|Brand Name:||Uchi||Name:||LED SPD / CE|
|In:||3kA||Nominal A.c.voltage (power Supply) [UN:||230V|
|Standard:||IEC 61643-11||Classification:||Class III|
|Degree Of Protection:||IP20||Structure:||WIth All Kinds Of Electronics Components|
|Interface Type:||3 Wires||Application:||LED Street Light|
3000A surge arrester 1 phase,
6000V LED Surge Protection Device,
CE LED Surge Protection Device
3kA 6kV Surge Protection Device for LED Street Light , SPD With CE Certifications
|LED Surge Protection Device|
|SPD classification according to EN61643-11||Type 3|
|SPD classification according to IEC 61643-11||Class III|
|Nominal a.c. voltage Un||230V|
|Max. continuous operating a.c. voltage Uc||275V|
|Max. continuous operating d.c. voltage Uc||300V|
|Nominal discharge current (8/20us) In||3kA|
|Combined impulse Uoc||6kV|
|Voltage protection level Up||≤1200V|
|Response time tA||≤25ns|
|Operating temperature range Tu||-40℃—80℃|
|Operating state / fault indication||LED|
|For mounting on||35mm Din rail|
|Enclosure materail||Thermal plastic UL94-V0|
|Degree of protection||IP20|
LED lighting systems with energy saving, environmental protection and longer service life are now widely used. However, even the best technology will have a short board, for LED, that is, lightning surge and over-voltage operation is extremely sensitive to the surge.
Due to exposure to outdoor environment, LED lighting system is facing the failure of power module caused by surge impact, damage of LED components and reduction of lighting efficiency. Therefore, we strongly recommend the use of stand-alone surge protectors to protect the LED outdoor lighting system.
GanDian Lightning Protection Company can provide a full range of LED outdoor lighting system special surge protector. The products can be installed in the LED lamp shade and control cabinet.
LED outdoor lighting industry of GanDian Lightning Protection Company's solutions can be applied to LED street lights, tunnel lights, outdoor lighting and many other outdoor lighting systems.
- New designed LED lighting surge protection module.
- With LED indicator in product.
- specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
- 20kA lightning surge protection.
- Metal oxide varistor (MOV) thermal protection.
- Parallel connected and series connected SPD options.
- With built-in thermal disconnect function.
- Full protection mode.
• Single-phase flexible surge protection
• High discharge capacity, quick response
• Low voltage protection level
- Protection class: Type 3, Class III.
- High performance varistor with thermal disconnection tripping device.
- Nominal AC Voltage, 230V.
- Nominal Discharge current: 5kA.
- Rated to IP20.
Applicable to class I or II lamps.
Built in protection mode: L-N, L-PE,N-PE.
Built in thermal separation function for higher security.
Parallel isolation design, excellent protectionperformance.
Excellent surge resistance and very low residual voltage.
The product is small and convenient for embedded installation.
Tip:How can we distinguish the quality of the lightning arrester?
1. It can be seen from the reaction time: determine whether the lightning arrester can respond in time and quickly discharge the lightning current.
2. It can be seen from the insertion loss: this refers to the installation of a lightning protector, the impact of this lightning protector on the line, the smaller the better
3. It can be seen from the number of impact resistance: determines the service life of the lightning arrester. Generally, the gas discharge tube will not drop after being placed for a period of time. If you want to check its quality, you can use an adjustable high-voltage DC power supply to test .
Q1: Are you a factory or a trade company?
A: We are the factory.
Q2: Where are your products distributed?
A: Our products are distributed all over the world, Main market are Europe, North America, the United Arab Emirates, Africa and so on.
Q3: Can I have a sample?
A: Yes, but according to our company's policy, we provided free samples, while you should pay the freight fee; the sample can be delivered by TNT/DHL/UPS/FEDEX.
Q4: Which port is the nearest from you?
A: Guangzhou port or Shenzhen Port or Hong Kong port.
Q5: What's your lead time?
A: Sample lead time: 3~5 working days.
Mass production: usually 10~30days.
For big orders, honestly, it depends on the order quantity and designs.
Q6: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.
Q7: Can you do the design for us?
A: Yes, we have a professional team having rich experience in molding design, electrical system developing and manufacturing. Please just tell us your ideas and we will help you to carry out your ideas into a perfect artwork. You can pay for the molding fee and own the mold by yourself or we can cooperate on the molding.
Q8: OEM & ODM are accepted or not?
A: OEM&ODM are welcome.
