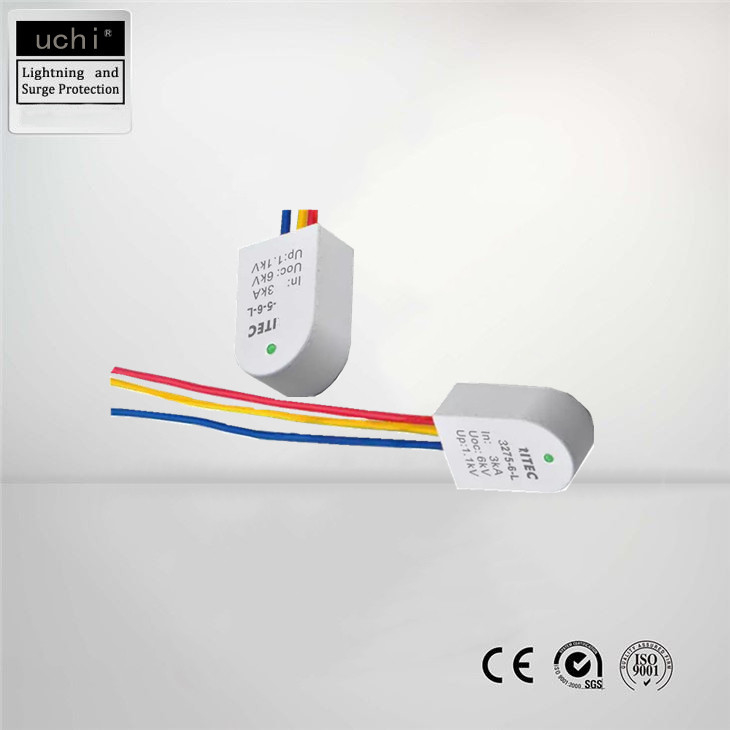

300VDC Led Lighting Surge Protection ，3 Leaded Low Voltage Protector
|Place of Origin:||Dongguan China|
|Certification:||CE / SGS / ISO9001|
|Model Number:||LED Surge Protection Device|
Payment & Shipping Terms:
|Minimum Order Quantity:||100 piece / pieces|
|Price:||Negotiate Ex-work / FOB price|
|Packaging Details:||Export package|
|Delivery Time:||8-15 days after payment|
|Payment Terms:||TT / LC|
|Supply Ability:||50000 pieces per month|
|Brand Name:||Uchi||Name:||LED Light Power SPD|
|In:||3kA||Nominal A.c.voltage (power Supply) [UN:||230V|
|Standard:||IEC 61643-11||Classification:||Class III|
|Degree Of Protection:||IP20||Structure:||WIth All Kinds Of Electronics Components|
|Interface Type:||3 Wires||Application:||Low-Voltage Distribution System|
3 leaded device low voltage protector,
300VDC led lighting surge protection,
3 Leaded led lighting surge protection
Surge Protection Device For Intelligent Road LED Lighting for Low-voltage distribution system
|LED Surge Protection Device|
|SPD classification according to EN61643-11||Type 3|
|SPD classification according to IEC 61643-11||Class III|
|Nominal a.c. voltage Un||230V|
|Max. continuous operating a.c. voltage Uc||275V|
|Max. continuous operating d.c. voltage Uc||300V|
|Nominal discharge current (8/20us) In||3kA|
|Combined impulse Uoc||6kV|
|Voltage protection level Up||≤1200V|
|Response time tA||≤25ns|
|Operating temperature range Tu||-40℃—80℃|
|Operating state / fault indication||LED|
|For mounting on||35mm Din rail|
|Enclosure materail||Thermal plastic UL94-V0|
|Degree of protection||IP20|
It is a power surge protector; it is used for surge protection of commercial lighting power sources such as street lighting (ClassI ,ClassII ),
landscape lighting, and surge protection for power ports such as security, electrical appliances, and sockets.
The lightning protection device adopts full mode protection, adopts UVT technology, and has leakage current and freewheeling interruption function.
The product is small and comes with L, N and PE cables for easy installation and application.
- New designed LED lighting surge protection module.
- With LED indicator in product.
- specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
- 20kA lightning surge protection.
- Metal oxide varistor (MOV) thermal protection.
- Parallel connected and series connected SPD options.
- With built-in thermal disconnect function.
- Full protection mode.
• Single-phase flexible surge protection
• High discharge capacity, quick response
• Low voltage protection level
- Protection class: Type 3, Class III.
- High performance varistor with thermal disconnection tripping device.
- Nominal AC Voltage, 230V.
- Nominal Discharge current: 5kA.
- Rated to IP20.
Applicable to class I or II lamps.
Built in protection mode: L-N, L-PE,N-PE.
Built in thermal separation function for higher security.
Parallel isolation design, excellent protectionperformance.
Excellent surge resistance and very low residual voltage.
The product is small and convenient for embedded installation.
