• 275VAC Surge Protection Device For Led Lights Type 3 35mm Din Rail
275VAC Surge Protection Device For Led Lights Type 3 35mm Din Rail

275VAC Surge Protection Device For Led Lights Type 3 35mm Din Rail

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: LED Surge Protection Device

Payment & Shipping Terms:

Minimum Order Quantity: 100 piece / pieces
Price: Negotiate Ex-work / FOB price
Packaging Details: Export package
Delivery Time: 8-15 days after payment
Payment Terms: TT / LC
Supply Ability: 50000 pieces per month
Get Best Price Contact Now

Detail Information

Brand Name: Uchi Name: LED Light Power SPD
In: 3kA Nominal A.c.voltage (power Supply) [UN: 230V
AC: 275VDC Material: Thermoplastic UL94-V0
Standard: IEC 61643-11 Classification: Class III
Degree Of Protection: IP20 Structure: WIth All Kinds Of Electronics Components
Interface Type: 3 Wires Application: Outdoor LED Street Lighting
High Light:

275VAC type 3 surge protector

,

275VAC surge protection device for led lights

,

3kA surge protection device for led lights

Product Description

3KA Surge Protection Device For Outdoor LED Street Lighting , 275VAC SPD


Lightning protection


  LED Surge Protection Device
SPD classification according to EN61643-11 Type 3
SPD classification according to IEC 61643-11 Class III
Nominal a.c. voltage Un 230V
Max. continuous operating a.c. voltage Uc 275V
Max. continuous operating d.c. voltage Uc 300V
Nominal discharge current (8/20us) In 3kA
Combined impulse Uoc 6kV
Voltage protection level Up ≤1200V
Response time tA ≤25ns
Operating temperature range Tu -40℃—80℃
Operating state / fault indication LED
For mounting on 35mm Din rail
Enclosure materail Thermal plastic UL94-V0
Degree of protection IP20


Summary:



Energy saving LED lights used as street lighting is becoming increasingly popular. But their free-standing poles are at risk in two ways: From lightning and from surge voltages via the power supply. For the protection of sensitive electronic drivers and LED lights inside street lamps, TYCOTIU has now developed a tailor-made surge arrestor. The type 3 arrestor has a high level of conducting capacity of up to 6 kA. Having a very low protection level of below 1.2 kV, it is also suitable for the protection of very sensitive electronic components. Thanks to its compact design, the housing can be mounted in the pole end area or in the street lamp head. The arrestors fulfill the requirements for type 3 protective devices according to the current EN 61643-11 product norm.



- New designed LED lighting surge protection module.
- With LED indicator in product.
- specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
- 20kA lightning surge protection.
- Metal oxide varistor (MOV) thermal protection.
- Parallel connected and series connected SPD options.
- With built-in thermal disconnect function.
- Full protection mode.



Main Character:



• Surge Protection Device: 275V AC.
• 3kA nominal discharge current (8/20us).
• Build-in beep status indication.

• Single-phase flexible surge protection

• High discharge capacity, quick response

• Low voltage protection level

• It provides surge protection up to 6Ka.
• EN 61643-11, IEC 61643-11 compliance.
• It is a 3-leaded device.



Features

  • Protection class: Type 3, Class III.
  • High performance varistor with thermal disconnection tripping device.
  • Nominal AC Voltage, 230V.
  • Nominal Discharge current: 5kA.
  • Rated to IP20.
  • Applicable to class I or II lamps.
  • Built in protection mode: L-N, L-PE,N-PE.
  • Built in thermal separation function for higher security.
  • Parallel isolation design, excellent protectionperformance.
  • Excellent surge resistance and very low residual voltage.
  • The product is small and convenient for embedded installation.
Application

• Provide an additional level of surge and transient protection in industrial and commercial applications.
• Suit for the outdoor luminaires such as street lights, flood lights etc.

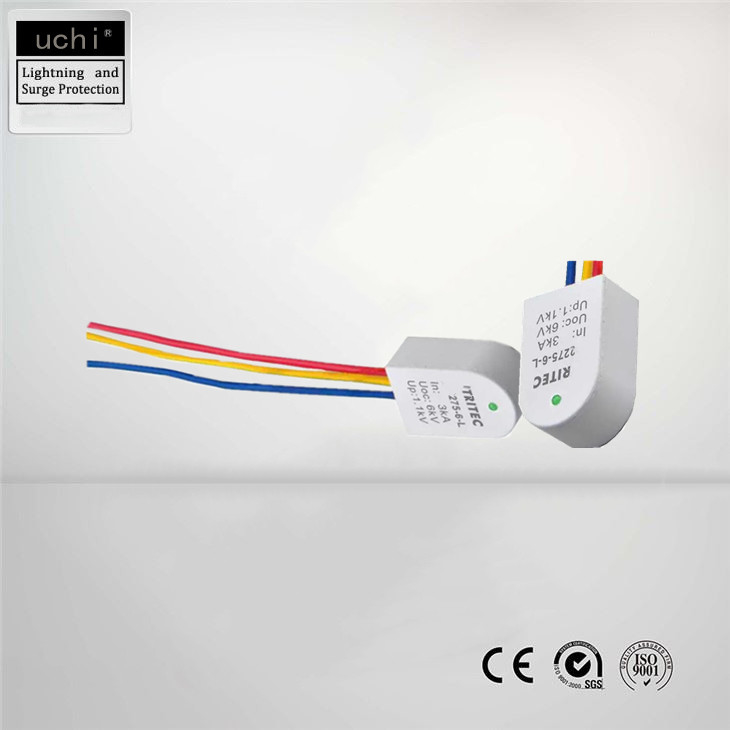

275VAC Surge Protection Device For Led Lights Type 3 35mm Din Rail 0



  • FAQ



    Q1: Are you a factory or a trade company?
    A: We are the factory.


    Q2: Where are your products distributed?
    A: Our products are distributed all over the world, Main market are Europe, North America, the United Arab Emirates, Africa and so on.


    Q3: Can I have a sample?
    A: Yes, but according to our company's policy, we provided free samples, while you should pay the freight fee; the sample can be delivered by TNT/DHL/UPS/FEDEX.


    Q4: Which port is the nearest from you?
    A: Guangzhou port or Shenzhen Port or Hong Kong port.


    Q5: What's your lead time?
    A: Sample lead time: 3~5 working days.
    Mass production: usually 10~30days.
    For big orders, honestly, it depends on the order quantity and designs.


    Q6: When can I get the price?
    A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.


    Q7: Can you do the design for us?
    A: Yes, we have a professional team having rich experience in molding design, electrical system developing and manufacturing. Please just tell us your ideas and we will help you to carry out your ideas into a perfect artwork. You can pay for the molding fee and own the mold by yourself or we can cooperate on the molding.


    Q8: OEM & ODM are accepted or not?
    A: OEM&ODM are welcome.
