Combined Impulse 6000V Surge Protection For Led Drivers , Single Phase Spd IP20
|Place of Origin:||Dongguan China|
|Certification:||CE / SGS / ISO9001|
|Model Number:||LED Surge Protection Device|
Payment & Shipping Terms:
|Minimum Order Quantity:||100 piece / pieces|
|Price:||Negotiate Ex-work / FOB price|
|Packaging Details:||Export package|
|Delivery Time:||8-15 days after payment|
|Payment Terms:||TT / LC|
|Supply Ability:||50000 pieces per month|
|Brand Name:||Uchi||Name:||Outdoor LED Street Lighting SPD|
|In:||3kA||Nominal A.c.voltage (power Supply) [UN:||230V|
|Standard:||IEC 61643-11||Classification:||Class III|
|Degree Of Protection:||IP20||Structure:||WIth All Kinds Of Electronics Components|
single phase spd,
IP20 surge protection for led drivers,
6000V surge protection for led drivers

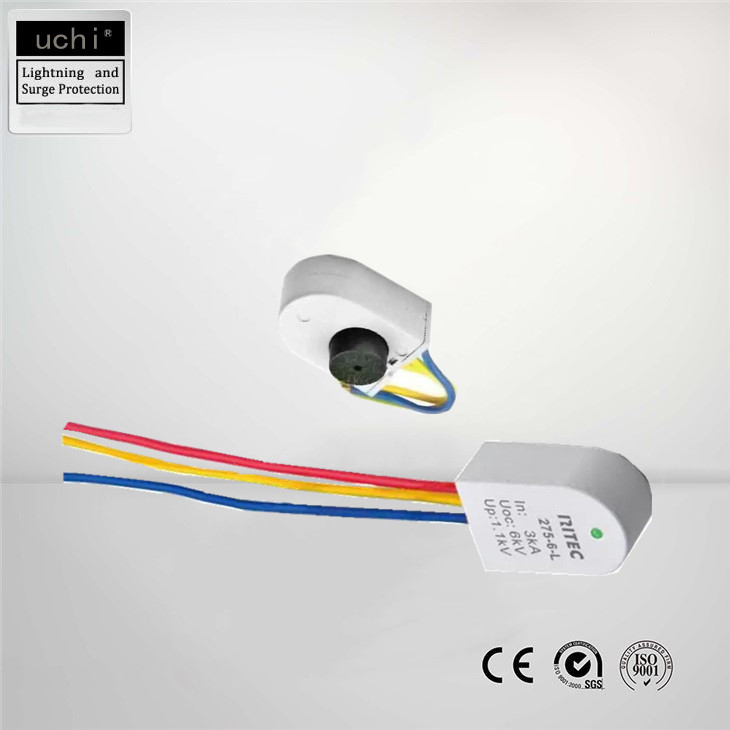

275VAC 3KA Surge Protection Device, Outdoor LED Street Lighting SPD With IP20
|LED Surge Protection Device|
|SPD classification according to EN61643-11||Type 3|
|SPD classification according to IEC 61643-11||Class III|
|Nominal a.c. voltage Un||230V|
|Max. continuous operating a.c. voltage Uc||275V|
|Max. continuous operating d.c. voltage Uc||300V|
|Nominal discharge current (8/20us) In||3kA|
|Combined impulse Uoc||6kV|
|Voltage protection level Up||≤1200V|
|Response time tA||≤25ns|
|Operating temperature range Tu||-40℃—80℃|
|Operating state / fault indication||LED|
|For mounting on||35mm Din rail|
|Enclosure materail||Thermal plastic UL94-V0|
|Degree of protection||IP20|
Lightning arrester is a series of power surge protection products designed for LED outdoor lighting system. It can effectively protect LED outdoor lighting power supply system against lightning strikes. It is widely used in LED lamps, tunnel lights, outdoor landscape lights and many other outdoor Lighting system.
Surge protective devices (SPD) connected between the power supply and the LED light in serial/shunt connection for protection of LED light from surge and transient over-voltage caused by the inducted lightning stroke or by internal power systems. Customized products are also available.
• Single-phase flexible surge protection
• High discharge capacity, quick response
• Low voltage protection level
- Protection class: Type 3, Class III.
- High performance varistor with thermal disconnection tripping device.
- Nominal AC Voltage, 230V.
- Nominal Discharge current: 5kA.
- Rated to IP20.
Applicable to class I or II lamps.
Built in protection mode: L-N, L-PE,N-PE.
Built in thermal separation function for higher security.
Parallel isolation design, excellent protectionperformance.
Excellent surge resistance and very low residual voltage.
The product is small and convenient for embedded installation.
Q1: Are you a factory or a trade company?
A: We are the factory.
Q2: Where are your products distributed?
A: Our products are distributed all over the world, Main market are Europe, North America, the United Arab Emirates, Africa and so on.
Q3: Can I have a sample?
A: Yes, but according to our company's policy, we provided free samples, while you should pay the freight fee; the sample can be delivered by TNT/DHL/UPS/FEDEX.
Q4: Which port is the nearest from you?
A: Guangzhou port or Shenzhen Port or Hong Kong port.
Q5: What's your lead time?
A: Sample lead time: 3~5 working days.
Mass production: usually 10~30days.
For big orders, honestly, it depends on the order quantity and designs.
Q6: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority.
Q7: Can you do the design for us?
A: Yes, we have a professional team having rich experience in molding design, electrical system developing and manufacturing. Please just tell us your ideas and we will help you to carry out your ideas into a perfect artwork. You can pay for the molding fee and own the mold by yourself or we can cooperate on the molding.
Q8: OEM & ODM are accepted or not?
A: OEM&ODM are welcome.
