• Parallel Industrial Surge Suppressors , Led Lights Power Surge TT connection
Parallel Industrial Surge Suppressors , Led Lights Power Surge TT connection

Parallel Industrial Surge Suppressors , Led Lights Power Surge TT connection

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: LED Surge Protection Device

Payment & Shipping Terms:

Minimum Order Quantity: 100 piece / pieces
Price: Negotiate Ex-work / FOB price
Packaging Details: Export package
Delivery Time: 8-15 days after payment
Payment Terms: TT / LC
Supply Ability: 50000 pieces per month
Get Best Price Contact Now

Detail Information

Brand Name: Uchi Name: LED Surge Protector
Warranty: 3 Years Type: Class III
Nominal A.c.voltage (power Supply) [UN: 230V Material: Thermoplastic UL94-V0
Application: Industrial Connection: Parallel
High Light:

MOV Led lights power surge

,

TT Connection Led Lights Power Surge

,

BEEP Fault Indication Industrial Surge Suppressors

Product Description

Parallel Connection LED Surge Protection Device In Industrial Applications


Lightning protection



  LED Surge Protection Device
SPD classification according to EN61643-11 Type 3
SPD classification according to IEC 61643-11 Class III
AC system TT-TN
Nominal a.c. voltage                                                Un 230V
Max. continuous operating a.c. voltage                    Uc 275V
Max. continuous operating d.c. voltage                    Uc 300V
Nominal discharge current (8/20us)                          In 3kA
Max. discharge current (8/20 µs)                       Imax 6kA
Combined impulse                                                 Uoc 6kV
Voltage protection level                                            Up 1.5 kV
Response time                                                          tA ≤25ns
Operating temperature range                                   Tu -40℃—80℃
Operating state / fault indication BEEP
Technology MOV+GDT
Enclosure materail Thermal plastic UL94-V0
Connection to Network wires
Mounting                 AC outlet or screw terminal
Degree of protection IP20
Failsafe behavior Disconnection
Thermal disconnector Internal




Summary:



Used for LED power source fine protection. Can be soldered with parallel connection on to the PCB (Printed Circuit Board) or onto the external power source of electronic equipment to protect from power surges. Designed according to IEC 61643-11 / EN 61643-11 / GB 18802.1 standard, applied in SPD class III (Class D) for fine protection of electronic equipment. LED drivers etc.



Main Character:



• Single-phase flexible surge protection

• High discharge capacity, quick response

• Low voltage protection level

• It provides surge protection up to 6Ka.
• EN 61643-11, IEC 61643-11 compliance.
• It is designed to operate through single phase.
• The operating condition of the arrester is signaled by buzzer.



Features

  • Protection class: Type 3, Class III.
  • High performance varistor with thermal disconnection tripping device.
  • Nominal AC Voltage, 230V.
  • Nominal Discharge current: 3kA.
  • Rated to IP20.
  • Surge protectors are used to guard sensitive equipments from voltage spike.
Application

• Universal 230V applications.
• Protect the most sensitive components against line surges and transients.
• Used in conjunction with LED Drivers and fixtures to provide an additional level of protection against
  power-line disturbances in industrial, commercial and residential applications.

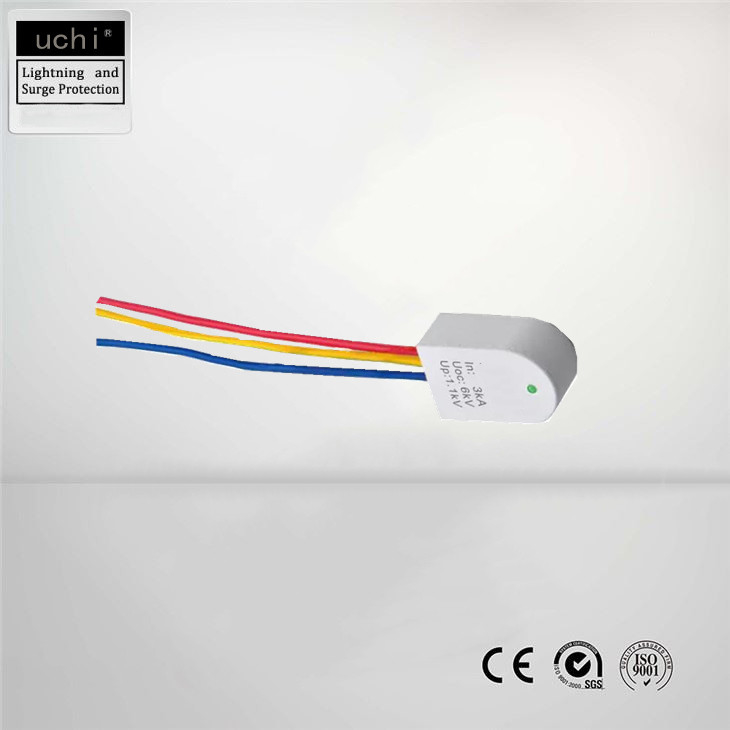

  • Parallel Industrial Surge Suppressors , Led Lights Power Surge TT connection 0
