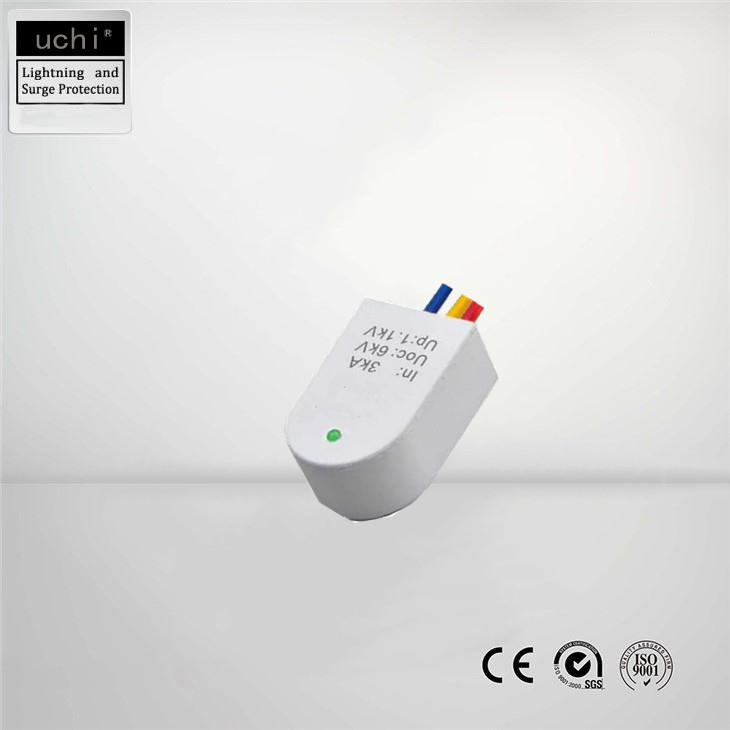

5KA Led Driver Surge Protector Combined Impulse 10ka Single Phase
|Place of Origin:||Dongguan China|
|Certification:||CE / SGS / ISO9001|
|Model Number:||LED Surge Protection Device|
Payment & Shipping Terms:
|Minimum Order Quantity:||100 piece / pieces|
|Price:||Negotiate Ex-work / FOB price|
|Packaging Details:||Export package|
|Delivery Time:||8-15 days after payment|
|Payment Terms:||TT / LC|
|Supply Ability:||50000 pieces per month|
|Brand Name:||Uchi||Name:||LED Surge Protector|
|Warranty:||3 Years||Type:||Class III|
|Nominal A.c.voltage (power Supply) [UN:||230V||Material:||Thermoplastic UL94-V0|
|Application:||Applied For Street Lights LED Driver.||Color:||Light Gray|
5KA surge protection device single phase,
5KA led driver surge protector,
10ka led driver surge protector
5kA LED Surge Protection Device , 10kA Surge Protector With Parallel Connection
|LED Surge Protection Device|
|SPD classification according to EN61643-11||Type 3|
|SPD classification according to IEC 61643-11||Class III|
|Nominal a.c. voltage Un||230V|
|Max. continuous operating a.c. voltage Uc||275V|
|Max. continuous operating d.c. voltage Uc||300V|
|Nominal discharge current (8/20us) In||5kA|
|Combined impulse Uoc||10kV|
|Voltage protection level Up||≤1. 0kV|
|Response time tA||≤25ns|
|Operating temperature range Tu||-40°C~ +80°C|
|Operating state / fault indication||LED|
|Enclosure materail||Thermal plastic UL94-V0|
|Degree of protection||IP20|
Used for LED power source fine protection. Can be soldered with parallel connection on to the PCB (Printed Circuit Board) or onto the external power source of electronic equipment to protect from power surges. Designed according to IEC 61643-11 / EN 61643-11 / GB 18802.1 standard, applied in SPD class III (Class D) for fine protection of electronic equipment. LED drivers etc.
• Single-phase flexible surge protection
• High discharge capacity, quick response
• Low voltage protection level
• IP67 water resistant
- Protection class: Type 3, Class III.
- High performance varistor with thermal disconnection tripping device.
- Nominal AC Voltage, 230V.
- Nominal Discharge current: 3kA.
- Rated to IP20.
- Surge protectors are used to guard sensitive equipments from voltage spike.
