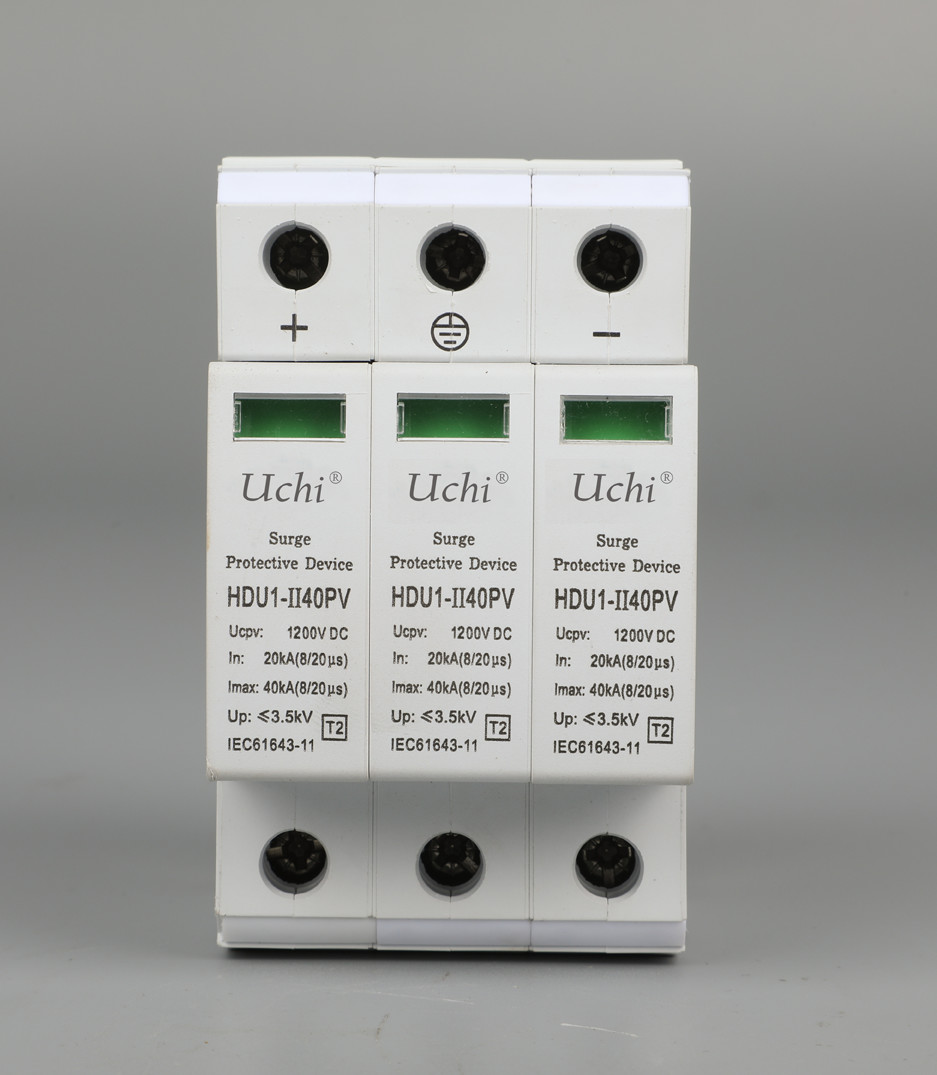

Un Nominal Working Voltage 1000V Surge Protector Breaker 35mm Slide Guide

Un Nominal Working Voltage 1000V Surge Protector Breaker 35mm Slide Guide

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV-SPD-420V

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

UnNominalworkingvoltage(Un): 1000V UcMaxcontinuousoperatingvoltage(Uc): 1100VAC
Nominaldischargecurrent(kA): 20kA Maxdischargecurrent(kA): 40kA
Protectionlevel(Up): 3.7kV Response Time(ns): 25ns
Installation: 35mmslideguide Workingconditions: Temperature-40℃~+85℃;
High Light:

40kA Surge Protector Breaker

,

1000V Surge Protector Circuit Breaker

,

ISO9001 Surge Protector Breaker

Product Description

unNominal working voltage (Un)1000V surge protector breaker
Model and specification  AM40-1000

Model AM40-1000
MainTechnicalData
UnNominalworkingvoltage(Un) 1000V
UcMaxcontinuousoperatingvoltage(Uc) 1100VAC


Nominaldischargecurrent(kA) 20kA
Maxdischargecurrent(kA) 40kA
ProtectedMode + - PE,-- PE
Protectionlevel(Up) 3.7kV
Recommendmaxbackupfuse 63A(gL/gG)
Responsetime ≤25ns
Work/Faultindication Localindicatewindow:
Green=SPDOK|White=SPDFailure
Module 3
MechanicalSpecification
InstallationLocation Indoor
Installation 35mmslideguide
Dimension(mm) 95*72*65
Cross-sectionalareamax ≥25mm2
Cross-sectionalareamin L/N:2.5mm2,PE:6mm2
Modeofconnection Connectioninparallel
EnvironmentSpecification
Workingconditions Temperature-40~+85;
Relativehumidity≤95%;Height≤3km
ProtectionLevel IP20
Enclosurematerial ThermoplasticmaterialUL94V-0



Safety precautions:
· When the SPDboxis installed in final system,it must achieve all therequirements of GB4943 (EN60950,IEC60950) standard;
· The equipment has to be installed by authorized professional person, before installation, to cut offpowersupply,and prohibit hot-line work from accidents
 Application: ·
· AM type DC photovoltaic series power SPD is often used to prevent over-voltage from damaging DC power system and equipments, especiallyinsolar photovoltaic system.

Un Nominal Working Voltage 1000V Surge Protector Breaker 35mm Slide Guide 0


Features:
· Temperature control circuit break technology, built-in over-current protection circuit,to completelykeep away from firedisaster · International famous components and advanced manufacturing technique · Big discharger current capacity,low residual voltage · Remote alarm connect point (optional)· Clear and intuifive working condifion · Easyinstallationandmaintain · Exquisite process,can work under the hostile environment for a long time,like acid,alkali,dust,salt fog,wet,etc



Structure &Shape

Un Nominal Working Voltage 1000V Surge Protector Breaker 35mm Slide Guide 1


Installation:
· 35mm slide guide installation way

· Connect +/-and ground terminal of power systemto+/-and ground terminalof SPD, then screw up the bolts

· ground line of SPDto lightning protection systemground device

· After wiring.please checkituntil everything isgoingwell, toput into operation.
 Un Nominal Working Voltage 1000V Surge Protector Breaker 35mm Slide Guide 2

Product maintenance:
·The eauipment has to be installed byauthorized professional person, before installation,to cut off power supply,and prohibit hot-line work from accidents

· The sectional area of wire must reach technicaldemands

· When the SPD box is installed in final system,it must achieve all the requirements of GB4943 (EN60950,IEC60950)standard;



· Once there is afailure during systemoperation,please removethe SPD device at first,if the systemcan operate normally,the deviceis broken

Product standard
· GB18802.1low-voltage distributionsystemSP:performance demand and test method;

· YD/T 1235.1 Communication Station low-voltage power system SPD technical requirement;

·YD/T 1235.2 Communication Station low-voltage power system SPD test method;
