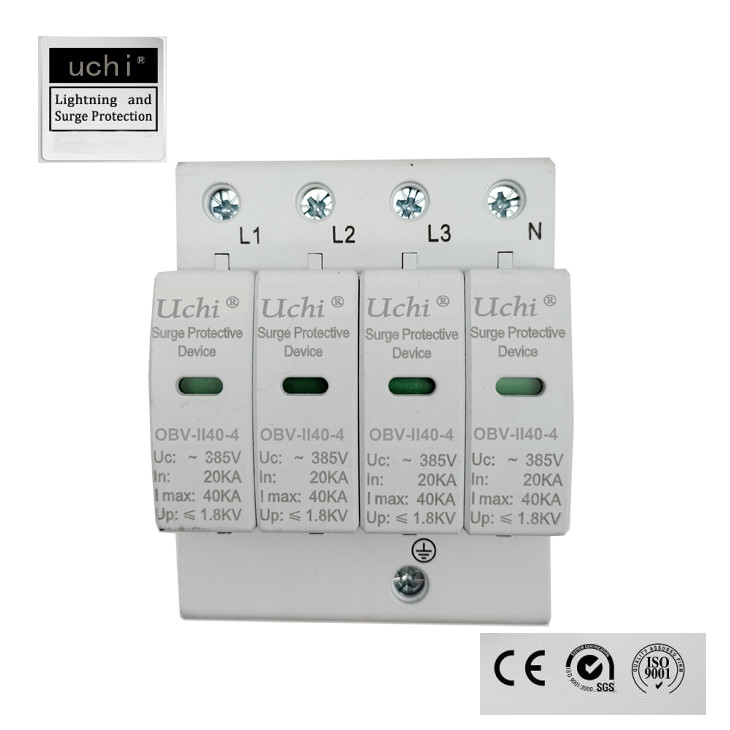

• Thermoplastic Housing 40kA Lightning Arrester For AC 385V
Thermoplastic Housing 40kA Lightning Arrester For AC 385V

Thermoplastic Housing 40kA Lightning Arrester For AC 385V

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV-II40-4

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Uc: 385V Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS System Voltage: 220V
Environment Temperature: (-25℃~+80℃) Status Indicator: Green-OK; Red-replace
Response Time (L-N): ≤25ns Protection Rating: IP 20
In(8/20μs): 20kA Imax(8/20μs): 40kA
Up: 1.8KV Pole: 4 Poles
SPD Type: Voltage Limiting Type SPD Material: Thermoplastic UL94-V0
High Light:

40kA Lightning Arrester


Thermoplastic Housing Lightning Arrester


AC 385V Lightning Surge Arrestor

Product Description

Thermoplastic 40kA Ligtning Arrester For AC 385V With Lower Price
OBV-II40-4 data:

Uc(maximum continuous operating voltage) 385V
Imax(maximum discharge current) 40kA
In(nominal discharge current for class II test) 20kA
Up(voltage protection level) ≤1.8kv
Combination 2+0;1+1;3+0;4+0;3+1
response time ≤25ns
Signal deterioration indication Red: replace
Housing Material thermoplastic material
Housing self-extinguishing class UL94_V0
Temperature range -40℃+70℃
humidity range 5%RH~95%RH
Elevational ≤2000m
Method of connecting wire Parallel Connect
Thread Dimensions 4~35mm2
Mounting method DIN:35mm
IP(degree of protection of enclosure) IP20
Follow up standard IEC 61643-11,GB/T 18802.1

The performance characteristics
1) Voltage limiting SPD, conforms to the test requirements of Type2;
2) A variety of combination methods to achieve differential touch and common mode protection functions;
3) High energy MOV, low residual voltage, high voltage protection level;
4) The disengaging device has an arc isolating device with strong overload capacity;
5) High continuous working voltage and large flow rate;
6) Quick response speed, no continuous flow;
7) Guide rail type installation;
8) Enhanced nylon shell, IP20 protection level;
9) Compact size, easy to install and use.
10) Mature products, low price, cost-effective
Range of application
It is mainly used for lightning protection of all kinds of electric equipment such as distribution box in AC power supply system.
Q: Can I get some samples?
A: Yes, Sample orders welcomed.
Q: Can I use my own Logo or design on goods?
A: Yes, Customized logo and design on mass production are available.
Q: What is the delivery time?
A: 3 days for samples, 7-15 days for mass production.
Q: What is the payment term?
A: T/T, L/C at sight, West union , Paypal, etc.
