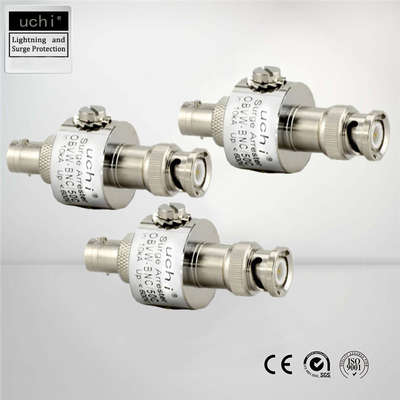

• 10KA Antena Surge Protection Device SPD 0.1db Insertion Loss
10KA Antena Surge Protection Device SPD 0.1db Insertion Loss

10KA Antena Surge Protection Device SPD 0.1db Insertion Loss

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBVW-BNC

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Name: Antenna Surge Protector Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS Application: Digital Lightning Strike Counter
Material: Brass Horse Power: Less Than 300W
Interface: BNC Nominal Discharge Current In: 10kA
Insertion Loss (user): Less Than 0.1db
High Light:

0.1db Insertion Loss Antenna Surge Protector


10KA Surge Protection Device SPD


Antenna Surge Protection Device SPD

Product Description

10kA Antenna Surge Protector , Surge Protection Device For AC/DC Distribution

Risk of voltage surges

Electrical and electronic equipment is indispensablein the daily activities of today's businesses and
individuals. Such devices are connected to theelectricity grid, often exchanging data and signals
through communication lines and are usually sensitive

to disturbances.These interconnecting networksprovide a propagation path for overvoltages.

Protection against lightning and overvoltages not onlyensures the safety of people, goods and equipment,but also ensures continuity of installation
services.Overvoltage protection extends the life of theequipment by more than 20%, which significantlyreduces the volume of electronic waste. It also
reduces the power consumption of the installations,all of which translates into cost savings and
environmental sustainability.



Surge arresters are designed for protecting UHF data transmission equipment connected to coaxial networks against natural (lightning) and non natural surge voltages.


OBVW is the series of devices for discharging transient overvoltages induced in coaxial lines. In accordance with IEC 61643-21. Coaxial format.


Technical and Parameters

Maximum Continuous Operating Voltage Uc (~) DC68V / AC130V / AC280V
Nominal Discharge Current In (8/20µs)kA 10kA
Maximum discharge current Imax (8/20µs)kA 20kA
Maximum peak power (W) <300
Interface BNC N F
Voltage protection level (Up) <600V
Bandwidth (MHz) 0-3000
Standing wave ratio, VSWR ≤1.2
Insertion Loss ≤0.1db
Impedance(Ω) 75Ω 50Ω 75Ω 50Ω 75Ω 50Ω

10KA Antena Surge Protection Device SPD 0.1db Insertion Loss 0

• Lower Prices
• Low Capacitance
• High Discharge Current
• Continuous and repeated protection in intense environment
AC/DC distribution
Power supplies
Industrial automation
Motor controls systems
PLC applications
Power transfer equipment
HVAC applications
AC drives
UPS systems
Security systems
IT/Data centers
Medical equipment

About SPD product

Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):

Type No. Rated Voltage(V) Un Continuous Voltage Uc(V~) Standard Discharge Current In(KA)

Max Discharge Current


Protection Level(KA~) Response Time(ns)
DGM1(2)-D5 220/380



5 10 1.2 ≤25
DGM1(2)-D10 10 2 1.6
DGM1(2)-C20 20 40 1.8
DGM13-B30 30 60 .2.2
DGM3(4)-B40 10 80 2.4
DGM(4)-B60 60 100 2.8
DGM-N-PE 220/255 40/60 60/80 1.2 ≤100


Application SPD:

• SPDs for CCTV is mainly used for supervisory control system, preventing product from lightning
strike and surge.
• Protect the video equipment effectively and ensure the image can display normally5.Inhibit the
overvoltage pulse issue fromthe transmission line on the camera effectively, Avoiding the video
surveillance equipment damage due to overvoltage pulse.
• Offer surge protection for almost any products application in power, instrumentations and controls,
network and data lines, coax and etc.
• For Radio Antennas, GPS Antennas, CATV, CCTV and Satellite TV.
