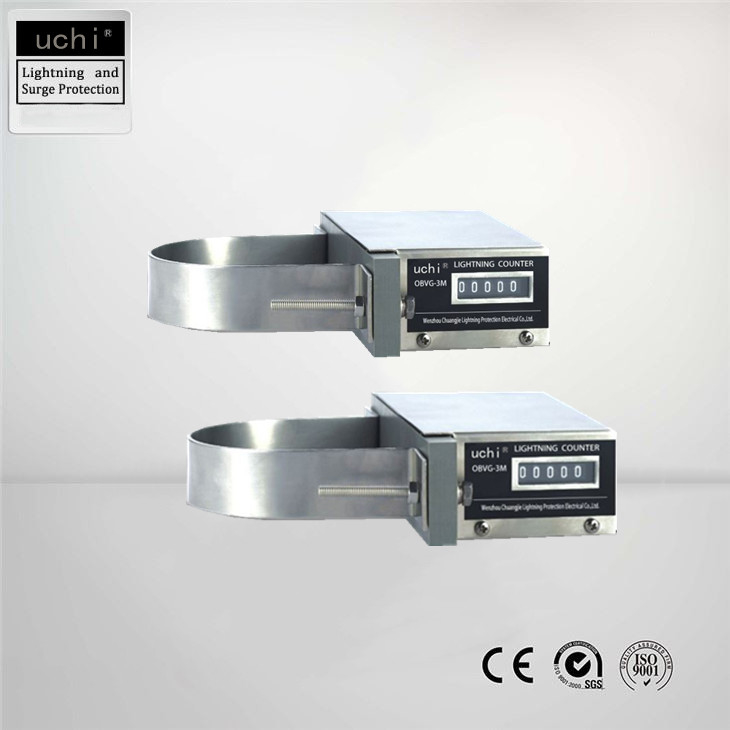

• 150×70×40mm Mechanical Stroke Counter , Lightning Surge Protection Device
150×70×40mm Mechanical Stroke Counter , Lightning Surge Protection Device

150×70×40mm Mechanical Stroke Counter , Lightning Surge Protection Device

Product Details:

Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBVG-3M

Payment & Shipping Terms:

Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Get Best Price Contact Now

Detail Information

Name: Stroke Counter Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS Application: Digital Lightning Strike Counter
Material: Stainless Steel 304 Feature: Used In Outside
Size: 150*70*40mm External Size: 150*40*70mm
High Light:

3kA Mechanical Stroke Counter


lightning surge protection device ISO9001


150×70×40mm lightning surge protection device

Product Description

Lightning Strike Arrester Counter , Mechanical Sroke Counter , Surge Protection Device


Product Description

Lightning counter is used to record atmospheric electrical discharge in the installation of lightning protected facility. Information counter contains date and time of discharge, the estimated value of the amplitude of the lightning. It has teletransmission outputs.


Features Benefits
-Great register capacity(99999 impulses).

-Easy visual control.

-Detection of impulses from:Intensity min:3kA (8/20us).lntensity max: 100kA (10/350us).Compact and robust design.
-Resettable model.
-Easy adaptation to the down conductor of anylightning protection system.
-Allows controlling the lightning rod condition.
-Works in any atmospheric condition(from -20C to65C).
-It does not need power supply.

-Easy installation and operation.

-Secure fastening by steel parts.


Technical and Parameters

Model OBVG-3M
Counter sensitivity Lightning crrent > 3kA
Record number 1×105 time
Size 150×70×40
Installation Stainless steel hoop




• Lower Prices
• Low Capacitance
• High Discharge Current
• Continuous and repeated protection in intense environment

About SPD product

Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):

Type No. Rated Voltage(V) Un Continuous Voltage Uc(V~) Standard Discharge Current In(KA)

Max Discharge Current


Protection Level(KA~) Response Time(ns)
DGM1(2)-D5 220/380



5 10 1.2 ≤25
DGM1(2)-D10 10 2 1.6
DGM1(2)-C20 20 40 1.8
DGM13-B30 30 60 .2.2
DGM3(4)-B40 10 80 2.4
DGM(4)-B60 60 100 2.8
DGM-N-PE 220/255 40/60 60/80 1.2 ≤100




• SPDs for CCTV is mainly used for supervisory control system, preventing product from lightning
strike and surge.
• Protect the video equipment effectively and ensure the image can display normally5.Inhibit the
overvoltage pulse issue fromthe transmission line on the camera effectively, Avoiding the video
surveillance equipment damage due to overvoltage pulse.
• Offer surge protection for almost any products application in power, instrumentations and controls,
network and data lines, coax and etc.
• For Radio Antennas, GPS Antennas, CATV, CCTV and Satellite TV.
