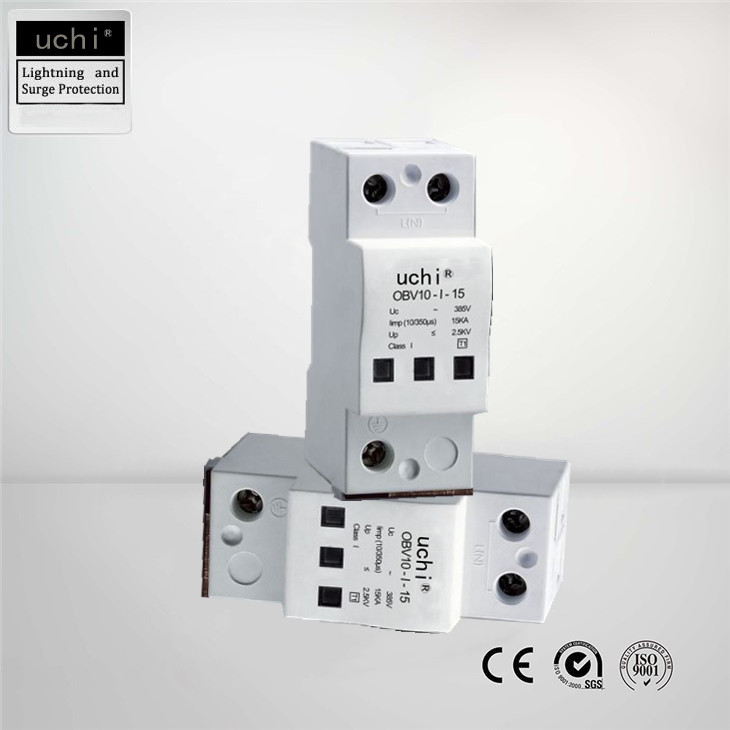

1000VDC Surge Protection Device SPD Low Capacitance SGS Approved

1000VDC Surge Protection Device SPD Low Capacitance SGS Approved
1000VDC Surge Protection Device SPD Low Capacitance SGS Approved
video play

Large Image :  1000VDC Surge Protection Device SPD Low Capacitance SGS Approved Get Best Price

Product Details:
Place of Origin: Dongguan China
Brand Name: Uchi
Certification: CE / SGS / ISO9001
Model Number: OBV10-I-15
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece
Price: Negotiate
Packaging Details: export package / Negotiate
Delivery Time: 5-15 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 60000 pieces per month
Detailed Product Description
DC: 1000V Condition: 100% Original
CertificationCE,CQC: CE / CQC / SGS System Voltage: 500/600VDC
Environment Temperature: (-40℃~+85℃) Normal Discharge Current(8/20μs): 20kA
Status Indicator: Green(good)/red(need Replacement) Response Time (L-N): ≤25ns
High Light:

1000VDC Surge Protection Device SPD


Surge Protection Device SPD Low Capacitance


Surge Protection Device SPD SGS

Environment temperature Range (-40℃~+85℃) Surge Protection Device / IP 20





Heavy duty AC Surge Protection Device (SPD) for high risk, low tolerance electrical service entrance applications. The OBV10-I-15 provides protection against the direct and indirect effects of lightning and is particularly useful in a high lightning area where the risk of heavy surge current or even direct strike is high, i.e. buildings equipped with lightning rods.


Lightning current arrestors OBV10-I-15 meet the type 1 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The voltage-limiting, high-performance spark gaps provide several benefits. A short response time, a low protection level and high current leakage capability with long service life.




• SPDs for CCTV is mainly used for supervisory control system, preventing product from lightning
strike and surge.
• Protect the video equipment effectively and ensure the image can display normally5.Inhibit the
overvoltage pulse issue fromthe transmission line on the camera effectively, Avoiding the video
surveillance equipment damage due to overvoltage pulse.
• Offer surge protection for almost any products application in power, instrumentations and controls,
network and data lines, coax and etc.
• For Radio Antennas, GPS Antennas, CATV, CCTV and Satellite TV.





• Lower Prices
• Low Capacitance
• High Discharge Current
• Continuous and repeated protection in intense environment

Technical Parameters


System voltage Un
Max. continous operation AC voltage
585VDC-615VDC in series connection
Norminal discharge current(8/20μs)
Maximum discharge current (8/20μs)
Voltage protection level (L-N)
Response time (L-N) tA
Environment temperature Tu
Status indicator
Green(good) / red(need replacement)
Green(good) / red(need replacement)
35mm Standard Guide
35mm Standard Guide
Cross section of wire (Min.)
Cross section of wire (Max.)
Casing material
PA6 UL94-V0
PA6 UL94-V0
Degree of protection
Remote Signalling
Inside preinstalled optional
Inside preinstalled optional




1,Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
2,Protect transmission of Ethernet signals with 48V DC / 34V AC power supply circuits against
lightning induced surges.
3,Enhanced surge protection.
4,For mounting on 35mm DIN rails acc. to EN 60715
5,It can effectively ensure the equipments work properly


Technology SPD parameter(Note:According to user requirement ,can be customized Uc=140V,440V,550V,voltage range of range of the SPD):


Type No. Rated Voltage(V) Un Continuous Voltage Uc(V~) Standard Discharge Current In(KA)

Max Discharge Current


Protection Level(KA~) Response Time(ns)
DGM1(2)-D5 220/380



5 10 1.2 ≤25
DGM1(2)-D10 10 2 1.6
DGM1(2)-C20 20 40 1.8
DGM13-B30 30 60 .2.2
DGM3(4)-B40 10 80 2.4
DGM(4)-B60 60 100 2.8
DGM-N-PE 220/255 40/60 60/80 1.2 ≤100
