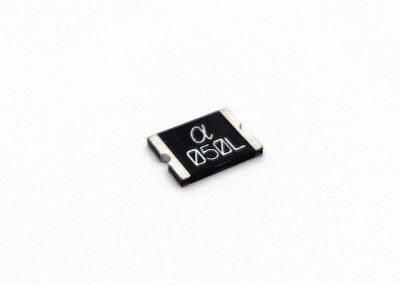

US Tech 0603 0805 SMD Type PTC Resettable Fuse 0.04A 4A

Product Description



Alpha-Top (Sea & Land Alliance) US Tech 0603 0805 1206 1210 1812 2018 2920 SMD Type PTC Resettable Fuse 0.04A to 4A





SMD0603 Series PTC Resettable Fuse 1508 1608



Features                                                         Applications

■ Surface Mount Devices                                 Almost anywhere there is a low voltage
■ Lead free device                                            power supply, up to 24V and a load to be
■ Size 1.5*0.8 mm / 0.06*0.03 inch                  protected, including:
■ Surface Mount packaging                             ■ Computer mother board, Modem. USB hub, Bluetooth earphone
for automated assembly                                   ■ PDAs & Charger, Analog & digital line card, Bluetooth watch
                                                                         ■ Digital cameras, Disk drivers, CD-ROMs, Active Sense Stylus Pen



Model	Marking	Vmax	Imax	Ihold @25C	Itrip @25C	Pd. Typ.	Max time to trip Current        Time		Resistance Rimin          R1max
		(Vdc)	(A)	(A)	(A)	(W)	(A)	(Sec)	(Ω)	(Ω)
SMD0603-004	X	24	40	0.04	0.12	0.5	0.2	1.00	6.000	40.000
SMD0603-005	V	15	40	0.05	0.20	0.5	0.5	1.00	2.000	25.000
SMD0603-005-24V	V	24	40	0.05	0.20	0.5	0.5	1.00	2.000	25.000
SMD0603-010	1	15	40	0.10	0.30	0.5	0.5	1.00	0.900	6.000
SMD0603-010-24V	1	24	40	0.10	0.30	0.5	0.5	1.00	0.900	10.000
SMD0603-020	2	9	40	0.20	0.50	0.5	1.0	0.60	0.550	3.500
SMD0603-025	2	9	40	0.25	0.55	0.5	8.0	0.08	0.500	3.000
SMD0603-035	3	6	40	0.35	0.75	0.5	8.0	0.10	0.200	1.400
SMD0603-050	5	6	40	0.50	1.00	0.5	8.0	0.10	0.100	0.800
SMD0603-075	7	6	40	0.75	1.40	0.5	8.0	0.10	0.060	0.450

Ihold = Hold Current. Maximum current device will not trip in 25°C still air.
Itrip = Trip Current. Minimum current at which the device will always trip in 25°C still air.
Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax).
Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax).
Pd = Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage.
Rimin/max = Minimum/Maximum device resistance prior to tripping at 25°C.
R1max = Maximum device resistance is measured one hour post reflow.
CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame.





Termination Pad Characteristics

Terminal pad materials:Gold-Plated Nickel-Copper or Tin-plated Nickel-Copper
Terminal pad solderabiliMtye:ets EIA specification RS186-9E and ANSI/J-STD-002 Category 3.





Package



Tape & Reel Quantity: 5,000 pcs/reel

Devices taped with reference to EIA481 standard.
Rework
Use standard industry practices, the removal device must be replaced with a fresh one.





SMD0805 PPTC Resettable Fuse 2012



Features


■ Surface Mount Devices
■ Lead free device
■ Size 2.0*1.2 mm / 0.08*0.05 inch
■ Surface Mount packaging for automated assembly




Applications



Almost anywhere there is a low voltage power supply, up to 24V and a load to be protected, including:

■ Computer mother board, Modem. USB hub

■ PDAs & Charger, Analog & digital line card

■ Digital cameras, Disk drivers, CD-ROMs,

Model	Marking	Vmax	Imax	Ihold @25C	Itrip @25C	Pd. Typ.	Max time to trip Current Time		Resistance Rimin      R1max
		(Vdc)	(A)	(A)	(A)	(W)	(A)	(Sec)	(Ω)	(Ω)
SMD0805-005	V	15	100	0.05	0.20	0.5	0.5	1.50	2.000	10.000
SMD0805-005-24V	V	24	100	0.05	0.20	0.5	0.5	1.50	2.000	10.000
SMD0805-010	1	15	100	0.10	0.30	0.5	0.5	1.50	1.000	6.000
SMD0805-010-24V	1	24	100	0.10	0.30	0.5	0.5	1.50	1.000	6.000
SMD0805-020	2	9	100	0.20	0.50	0.5	8.0	0.02	0.650	3.500
SMD0805-020-13.2V	2	13.2	100	0.20	0.50	0.5	8.0	0.02	0.650	3.500
SMD0805-020-16V	2	16	100	0.20	0.50	0.5	8.0	0.02	0.650	3.500
SMD0805-025	2	9	100	0.25	0.55	0.5	8.0	0.02	0.600	3.000
SMD0805-025-13.2V	2	13.2	100	0.25	0.55	0.5	8.0	0.02	0.600	3.000
SMD0805-025-16V	2	16	100	0.25	0.55	0.5	8.0	0.02	0.600	3.000
SMD0805-035	3	6	100	0.35	0.75	0.5	8.0	0.10	0.250	1.200
SMD0805-035-13.2V	3	13.2	100	0.35	0.75	0.5	8.0	0.10	0.250	1.200
SMD0805-035-16V	3	16	100	0.35	0.75	0.5	8.0	0.10	0.250	1.200
SMD0805-050	5	6	100	0.50	1.00	0.5	8.0	0.10	0.150	0.850
SMD0805-050-13.2V	5	13.2	100	0.50	1.00	0.5	8.0	0.10	0.150	0.850
SMD0805-050-16V	5	16	100	0.50	1.00	0.5	8.0	0.10	0.150	0.850
SMD0805-075	7	6	40	0.75	1.50	0.6	8.0	0.20	0.090	0.385
SMD0805-100	0	6	100	1.00	1.95	0.6	8.0	0.30	0.060	0.230
SMD0805-110	0	6	100	1.10	2.20	0.6	8.0	0.30	0.060	0.210
SMD0805-125	12	6	100	1.25	2.50	1.5	8.0	0.60	0.030	0.140



Package



Tape & Reel Quantity

005,010,020,025,035,050 : 5,000 pcs/reel

The others : 4,000 pcs/reel





SMD1206 Ployfuse Size 3.2*1.6 mm/0.12*0.06 inch  3216



Model	Marking	Vmax	Imax	Ihold	Itrip		Maximum Time To Trip		Resistance
						Pd Typ.
				@25°C	@25°C	Max.	Current	Time	Ri	R1
									min	max
		(Vdc)	(A)	(A)	(A)	(W)	(A)	(Sec)	(W)	(W)
nSMD005	αZ	60	100	0.05	0.15	0.4	0.25	1.50	3.600	50.000
nSMD010	αN	60	100	0.10	0.25	0.4	0.50	1.00	1.600	15.000
nSMD012	αN	60	100	0.12	0.29	0.4	0.50	1.00	1.600	15.000
nSMD020	αA	24	100	0.20	0.46	0.6	8.00	0.08	0.350	2.700
nSMD020-30V	αA	30	100	0.20	0.46	0.6	8.00	0.08	0.350	2.700
nSMD025	αA	16	100	0.25	0.50	0.6	8.00	0.08	0.350	2.500
nSMD025-24V	αA	24	100	0.25	0.50	0.6	8.00	0.08	0.350	2.500
nSMD025-30V	αA	30	100	0.25	0.50	0.6	8.00	0.08	0.350	2.500
nSMD035	αB	6	100	0.35	0.75	0.6	8.00	0.10	0.250	1.300
nSMD035-13.2V	αB	13.2	100	0.35	0.75	0.6	8.00	0.10	0.250	1.300
nSMD035-16V	αB	16	100	0.35	0.75	0.6	8.00	0.10	0.250	1.300
nSMD035-24V	αB	24	100	0.35	0.75	0.6	8.00	0.10	0.250	1.300
nSMD050	αF	6	100	0.50	1.00	0.6	8.00	0.10	0.150	0.700
nSMD050-13.2V	αF	13.2	100	0.50	1.00	0.6	8.00	0.10	0.150	0.700
nSMD050-16V	αF	16	100	0.50	1.00	0.6	8.00	0.10	0.150	0.700
nSMD050-24V	αF	24	100	0.50	1.00	0.6	8.00	0.10	0.150	0.700
nSMD075	αG	6	100	0.75	1.50	0.6	8.00	0.20	0.090	0.500
nSMD075-13.2V	αG	13.2	100	0.75	1.50	0.6	8.00	0.20	0.090	0.500
nSMD075-16V	αG	16	100	0.75	1.50	0.6	8.00	0.20	0.090	0.500
nSMD075-24V	αG	24	100	0.75	1.50	0.6	8.00	0.20	0.090	0.500
nSMD100	αH	6	100	1.00	1.80	0.6	8.00	0.30	0.055	0.270
nSMD100-13.2V	αH	13.2	100	1.00	1.80	0.6	8.00	0.30	0.055	0.270
nSMD100-16V	αH	16	100	1.00	1.80	0.6	8.00	0.30	0.055	0.270
nSMD110	αH	6	100	1.10	2.20	0.6	8.00	0.30	0.050	0.250
nSMD110-13.2V	αH	13.2	100	1.10	2.20	0.6	8.00	0.30	0.050	0.250
nSMD110-16V	αH	16	100	1.10	2.20	0.6	8.00	0.30	0.050	0.250
nSMD150	αI	6	100	1.50	3.00	0.8	8.00	0.30	0.040	0.130
nSMD150-13.2V	αI	13.2	100	1.50	3.00	0.8	8.00	0.30	0.040	0.130
nSMD150-16V	αI	16	100	1.50	3.00	0.8	8.00	0.30	0.040	0.130
nSMD200	αK	6	100	2.00	3.50	0.8	8.00	1.50	0.018	0.080
nSMD250	αL	6	100	2.50	5.00	1.2	8.00	2.00	0.015	0.070





Package



Tape & Reel Quantity

020,025,035,050,075,100,110 : 5,000 pcs/reel

020-30V,025-24V,025-30V : 5,000 pcs/reel

The others : 3,500 pcs/reel





SMD1210 3225 POLYSWITCH Size 3.2*2.5mm/0.12*0.10 inch



Model	Marking	Imax	Imax	Ihold	Pd trip	Max. Resistance Time To Trip		Resistance
	(Vdc)	(A)	@25°C	@25°C	Typ.	Current	Time	Rimin	R1max
			(A)	(A)	(W)	(A)	(Sec)	(Ω)	(Ω)
SMD1210-005	αA	30	100	0.05	0.15	0.6	0.25	1.50	2.800
SMD1210-005-60V	αA	60	100	0.05	0.15	0.6	0.25	1.50	2.800
SMD1210-010	αB	30	100	0.10	0.30	0.6	0.50	0.60	0.800
SMD1210-010-60V	αB	60	100	0.10	0.30	0.6	0.50	0.60	0.800
SMD1210-020	αC	30	100	0.20	0.40	0.6	8.0	0.02	0.400
SMD1210-020-60V	αC	60	100	0.20	0.40	0.6	8.0	0.02	0.400
SMD1210-025	αC	30	100	0.25	0.50	0.6	8.0	0.02	0.400
SMD1210-025-60V	αC	60	100	0.25	0.50	0.6	8.0	0.02	0.400
SMD1210-035	αD	6	100	0.35	0.75	0.6	8.0	0.20	0.200
SMD1210-035-13.2V	αD	13.2	100	0.35	0.75	0.6	8.0	0.20	0.200
SMD1210-035-16V	αD	16	100	0.35	0.75	0.6	8.0	0.20	0.200
SMD1210-035-24V	αD	24	100	0.35	0.75	0.6	8.0	0.20	0.200
SMD1210-050-6V	αF	6	100	0.50	1.00	0.6	8.0	0.10	0.180
SMD1210-050	αF	13.2	100	0.50	1.00	0.6	8.0	0.10	0.180
SMD1210-050-16V	αF	16	100	0.50	1.00	0.6	8.0	0.10	0.180
SMD1210-050-24V	αF	24	100	0.50	1.00	0.6	8.0	0.10	0.180
SMD1210-075	αG	6	100	0.75	1.50	0.6	8.0	0.10	0.070
SMD1210-075-13.2V	αG	13.2	100	0.75	1.50	0.6	8.0	0.10	0.070
SMD1210-075-16V	αG	16	100	0.75	1.50	0.6	8.0	0.10	0.070
SMD1210-075-24V	αG	24	100	0.75	1.50	0.6	8.0	0.10	0.070
SMD1210-100	αH	6	100	1.00	2.00	0.6	8.0	0.30	0.050
SMD1210-100-13.2V	αH	13.2	100	1.00	2.00	0.6	8.0	0.30	0.050
SMD1210-100-16V	αH	16	100	1.00	2.00	0.6	8.0	0.30	0.050
SMD1210-110	αH	6	100	1.10	2.20	0.6	8.0	0.30	0.050
SMD1210-110-13.2V	αH	13.2	100	1.10	2.20	0.6	8.0	0.30	0.050
SMD1210-110-16V	αH	16	100	1.10	2.20	0.6	8.0	0.30	0.050
SMD1210-150	αL	6	100	1.50	3.00	0.6	8.0	0.50	0.030
SMD1210-150-13.2V	αL	13.2	100	1.50	3.00	0.6	8.0	0.50	0.030
SMD1210-175	αN	6	100	1.75	3.50	0.8	8.0	0.60	0.020
SMD1210-175-13.2V	αN	13.2	100	1.75	3.50	0.8	8.0	0.60	0.020
SMD1210-200	αS	6	100	2.00	4.00	0.8	8.0	1.00	0.015



Package ---- SMD1210 Series 4,500 pcs/reel





SMD1812 Series 4532 SMD Resettable Fuse Size 4.5*3.2 mm/0.18*0.12 inch



Model	Vmax	Imax	Ihold	Itrip	Pd	Max Time Time To Trip		Resistance
			@25°C	@25°C	Typ.	Current	Time	Rimin	R1max
	(Vdc)	(A)	(A)	(A)	(W)	(A)	(Sec)	(W)	(W)
mSMD010	30	100	0.10	0.30	0.8	0.5	1.50	0.750	15.000
mSMD010-60V	60	100	0.10	0.30	0.8	0.5	1.50	0.750	15.000
mSMD014	60	100	0.14	0.34	0.8	1.5	0.15	0.650	6.000
mSMD020	30	100	0.20	0.40	0.8	8.0	0.02	0.350	5.000
mSMD020-60V	60	100	0.20	0.40	0.8	8.0	0.02	0.350	5.000
mSMD030	30	100	0.30	0.60	0.8	8.0	0.10	0.250	3.000
mSMD030-60V	60	100	0.30	0.60	0.8	8.0	0.10	0.250	3.000
mSMD050	15	100	0.50	1.00	0.8	8.0	0.15	0.150	1.000
mSMD050-33V	33	100	0.50	1.00	0.8	8.0	0.15	0.150	1.000
mSMD050-60V	60	100	0.50	1.00	0.8	8.0	0.15	0.150	1.000
mSMD075	13.2	100	0.75	1.50	0.8	8.0	0.20	0.090	0.450
mSMD075-16V	16	100	0.75	1.50	0.8	8.0	0.20	0.090	0.450
mSMD075-24V	24	100	0.75	1.50	0.8	8.0	0.20	0.090	0.450
mSMD075-33V	33	100	0.75	1.50	0.8	8.0	0.20	0.090	0.450
mSMD100	8	100	1.00	1.80	0.8	8.0	0.30	0.055	0.270
mSMD100-16V	16	100	1.00	1.80	0.8	8.0	0.30	0.055	0.270
mSMD100-24V	24	100	1.00	1.80	0.8	8.0	0.30	0.055	0.270
mSMD100-33V	33	100	1.00	1.80	0.8	8.0	0.30	0.055	0.270
mSMD110	8	100	1.10	2.20	0.8	8.0	0.30	0.050	0.250
mSMD110-16V	16	100	1.10	2.20	0.8	8.0	0.30	0.050	0.250
mSMD110-24V	24	100	1.10	2.20	0.8	8.0	0.30	0.050	0.250
mSMD110-33V	33	100	1.10	2.20	0.8	8.0	0.30	0.050	0.250
mSMD125	16	100	1.25	2.50	0.8	8.0	0.40	0.050	0.140
mSMD150	8	100	1.50	3.00	0.8	8.0	0.50	0.040	0.160
mSMD150-16V	16	100	1.50	3.00	0.8	8.0	0.50	0.040	0.160
mSMD150-24V	24	100	1.50	3.00	0.8	8.0	0.50	0.040	0.160
mSMD160	8	100	1.60	2.80	0.8	8.0	1.00	0.030	0.130
mSMD160-13.2V	13.2	100	1.60	2.80	0.8	8.0	1.00	0.030	0.130
mSMD160-16V	16	100	1.60	2.80	0.8	8.0	1.00	0.030	0.130
mSMD200	8	100	2.00	4.00	0.8	8.0	2.00	0.020	0.100
mSMD200-13.2V	13.2	100	2.00	4.00	0.8	8.0	2.00	0.020	0.100
mSMD200-16V	16	100	2.00	4.00	0.8	8.0	2.00	0.020	0.100
mSMD260	8	100	2.60	5.00	0.8	8.0	2.50	0.015	0.050
mSMD260-13.2V	13.2	100	2.60	5.00	0.8	8.0	2.50	0.015	0.050
mSMD300	8	100	3.00	5.00	0.8	8.0	4.00	0.012	0.040
mSMD300-13.2V	13.2	100	3.00	5.00	0.8	8.0	4.00	0.012	0.040
mSMD350	6	100	3.50	6.00	2.0	10.0	4.00	0.008	0.030
mSMD375	6	100	3.75	7.00	2.0	12.0	4.00	0.007	0.028
mSMD400	6	100	4.00	8.00	2.0	12.0	5.00	0.006	0.025



Package ----- mSMD Series 1,500 pcs/reel





SMD2018 PolySwitch Resettable PTCs Devices 5045 Size 5.0*4.5mm/0.20*0.18 inch



Model	Vmax	Imax	Ihold	Itrip	Pd	Max Time To Trip		Resistance
			@25°C	@25°C	Typ.	Current	Time	Rimin	R1max
	(Vdc)	(A)	(A)	(A)	(W)	(A)	(Sec)	(Ω)	(Ω)
SMD2018-030	60	100	0.30	0.60	0.9	1.5	3.00	0.500	2.300
SMD2018-050	60	100	0.55	1.20	1.0	2.5	3.00	0.200	1.000
SMD2018-100	15	100	1.10	2.20	1.1	8.0	0.40	0.060	0.360
SMD2018-100-24V	24	100	1.10	2.20	1.1	8.0	0.40	0.060	0.360
SMD2018-100-33V	33	100	1.10	2.20	1.1	8.0	0.40	0.060	0.360
SMD2018-150	15	100	1.50	3.00	1.1	8.0	0.80	0.050	0.170
SMD2018-200	10	100	2.00	4.00	1.1	8.0	2.40	0.030	0.100





Package



030, 050,100-24V, 100-33V : 1,500 pcs/reel

100, 150, 200 : 2,500 pcs/reel







SMD2920  PTC Resettable Fuses | Circuit Protection Size 7.5*5.5 mm 0.29*0.20 inch 7555



Model	Vmax	Imax	Ihold	Itrip	Pd	Max Time To Trip		Resistance
			@25°C	@25°C	Typ.	Current	Time	Rimin	R1max
	(Vdc)	(A)	(A)	(A)	(W)	(A)	(Sec)	(Ω)	(Ω)
SMD030L	60	100	0.30	0.60	1.5	1.5	3.0	0.600	4.800
SMD050L	60	100	0.50	1.00	1.5	2.5	4.0	0.180	1.400
SMD075L	33	100	0.75	1.50	1.5	8.0	0.3	0.100	1.000
SMD075L-60V	60	100	0.75	1.50	1.5	8.0	0.3	0.100	1.000
SMD100L	33	100	1.10	2.20	1.5	8.0	0.5	0.065	0.410
SMD125L	33	100	1.25	2.50	1.5	8.0	2.0	0.050	0.250
SMD150L	33	100	1.50	3.00	1.5	8.0	2.0	0.035	0.230
SMD185L	33	100	1.85	3.70	1.5	8.0	2.5	0.030	0.150
SMD200L	16	100	2.00	4.00	1.5	8.0	4.5	0.020	0.120
SMD200L-24V	24	100	2.00	4.00	1.5	8.0	4.5	0.020	0.120
SMD250L	16	100	2.50	5.00	1.5	8.0	16.0	0.020	0.085
SMD260L	6	100	2.60	5.20	1.5	8.0	10.0	0.014	0.075
SMD300L-6V	6	40	3.00	6.00	1.5	8.0	20.0	0.012	0.048
SMD300L	16	100	3.00	6.00	1.5	8.0	20.0	0.012	0.048





Package



200-24V : 1,500 pcs/reel

The others : 2,000 pcs/reel





About Alpha-Top (Sea & Land Alliance)



Employee : 400

Registered capital : NT$ 1,230,000,000

Company establishment date: June 21, 62
OTC (city) day: January 25, 1986



Sea & Land Electronic Corporation as Sea & Land Integrated Corp, the Electronic Materials Unit Division of Sea & land Corp. is a manufacturer in the production of PPTC (Polymeric Positive Temperature Coefficient) since 1997.

Our company, with the advantage of leading technology, all series of our products include the Radial Leaded Devices, Axial Leaded Devices, and Surface Mount Devices.

Each item of product meets lead free, ROHS and SONY's GP requirements. All product series obtained the certification of UL and TUV.

We provide customers an innovative circuit protection that ensure the safety and reliability of today's high density electronics systems.







Manufacturing







Our Advantages



1. Backed by the powerful Luhai Group
2. Immediate service and quick and sensitive response, strong R&D team
3. Complete product line specifications
4. Quality assurance: Raychem R&D was established when the Luhai Electronics business was established
The team consultant is stationed, so it has a quality comparable to Raychem
5. Price & Delivery: Move to Huizhou, Mainland China for production and expand production capacity to respond
The needs of our domestic and foreign customers are in terms of production speed. Delivery time,
The price is leading and comparable to Polytroincs. Futuzec, Raychem, Bourns

6. Certificates, UL,CUL,TUV





Customers



BAK

FIC

CCI

ACM

GS TECH

Protectron Electromech

Asus

Sole Energy





General Applications



Product	Model	Application
Radial leaded 16-600V 0.1A~37.5A (Dip)	R16 R30 R60 C250	Speaker crossovers, electric toys, electric motors, energy-saving lamps, electric heaters, power supplies, chargers, communication products, switches, broadband network equipment, set-top boxes, audio speakers, industrial computers
Surface Mount 0.5-2A (SMD)	SMD2920 2018 1812 1210. 1206. 0805 series	Motherboard, graphics card, add-on card, USB&1394 interface, digital portable device
Axial leaded 8V ~ 24 V 1.2A~2.1A (SMD)	MHD,HPD,VLD	Lithium battery, Ni-MH battery, battery pack
Ring device	18650 series Customized spec	Cylindrical battery
