12 Million Annual Production Capacity Film Type NTC Thermistor MF55 10KOHM 3435 25mm For Computer Printer
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | UCHI |
| Certification: | ISO,ROHS |
| Model Number: | MF55 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 12 Million per year |
|
Detail Information |
|||
| Type: | Film Type NTC Thermistor MF55 10KOHM 3435 25mm | Material Used: | Polyimide Film,Chip,Phosphor Copper Frame Etc. |
|---|---|---|---|
| Total Length: | 25mm | R25: | 5K~500K Ohm |
| Resistance Tolerance: | 1%,2%,3%,5% | B Value: | 3270~4750K |
| B Tolerance: | 1%,2% | Dissipation Coefficient: | ≥0.8mW/C In Still Air |
| Thermal Time Constant: | ≤5sec In Still Air | Operating Temperature Range: | -40~+125degree |
| Rated Power: | ≤50mW | Application: | Computer,Printer,House Hold Appliance |
| Excutive Standard: | Q/320115SHD14-2014 | Customized: | Available |
| High Light: | power ntc thermistor,ntc thermistor assembly |
||
Product Description
12 Million Annual Production Capacity Film Type NTC Thermistor MF55 10KOHM 3435 25mm For Computer Printer
PDF Specification Download Link : MF55 Film Type Temperature Measurement NTC Thermis...
General
Film Type Thermistor is a resistor that electric resistance is changed with ambient temperature and which is sensitive to heat. Among them, NTC (Negative temperature coefficient of resistance) thermistor has a characteristic that the resistance value reduces when the temperature increases. This is the device used as sensor that measures mainly the temperature around room temperature, which is applied to various fields such as home appliance, automotive, telecommunication, computer, medical instruments and industry sites etc.

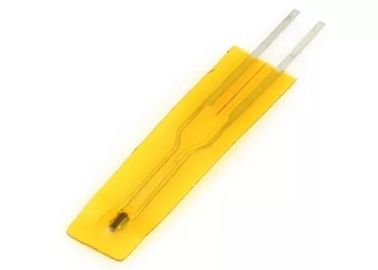

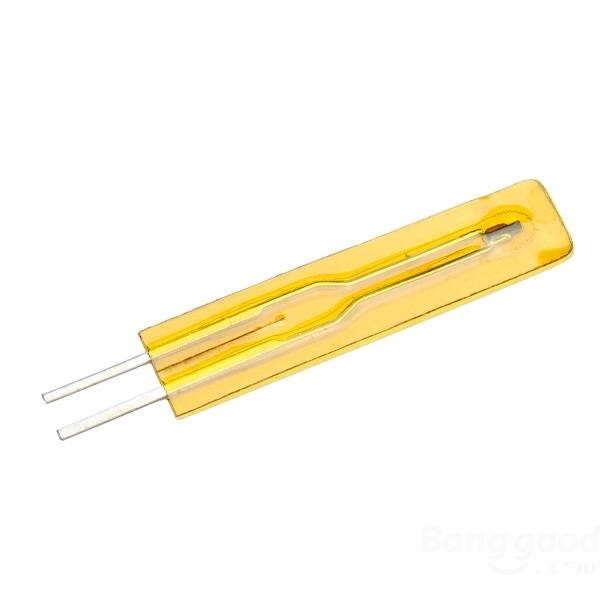

MF55 series is a film type thermistor, composed of a NTC chip soldered in a thin lead frame, then insulated with polymer film, for low profile application. Film type thermistor can measure the surface temperature more efficiently, or can be installed inside a tiny gap.
Features
- Fast response and high sensitivity
- High stability and reliability
- Superior electrical insulation
- High precision
- Safty secure
- Small size, light weight, solid structure is convenient for auto mounting.
Application
- Computer
- Printer
- House hold appliance
Dimension in mm
| Code | Material explation |
| A | Polyimede film |
| B | Chip |
| C | Phosphorcopper frame |
Main Parameters
- Resistance range R25 : 5 ~ 500 KOhm
- Resistance tolerance : ±1％,±2％,±3％,±5％,±10％
- B25/50 value : 3270 ~4750K
- B value tolerance : ±1％,±2％
- Dissipation coefficient: ≥0.8mW/℃ in still air
- Thermal time constant : ≤5sec in still air
- Operating temperature range : -40 ~+125℃
- Rated power : ≤50mW
How to order
MF55 103 F 3380 F
① ② ③ ④ ⑤
① Type : MF55 Film Type Temperature Measurement NTC Thermistor
② Rated zero power resistance: 103-10K Ohm
③ Resistance tolerance : F - ±1％, G - ±2％, H - ±3％, J - ±5％,
④ B value : namely 3380K,3950K
⑤ B value tolerance : F : ±1％, G : ±2％
