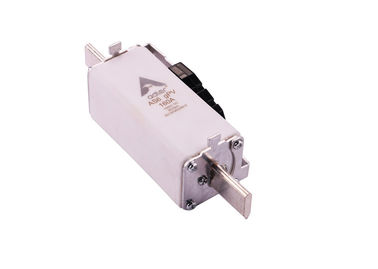

1000VDC 40~160A 20KA 25W Adler AS0 gPV NH0 Blade Fuses IEC / EN60269-6 Standard

Large Image :  1000VDC 40~160A 20KA 25W Adler AS0 gPV NH0 Blade Fuses IEC / EN60269-6 Standard

Product Details:

Place of Origin: Germany/China
Brand Name: ADLER
Certification: IEC TUV etc.
Model Number: AS0 gPV NH0

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Packaging Details: Bulk
Delivery Time: 4 WEEKS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5000,000PCS
Detailed Product Description
Product Name: AS0 GPV NH0 Blade Fuses Rated Voltage: 1000V DC, Class GPV
Rated Current: 40~160A Rated Breaking Capacity: 20KA
Max. Dissipation: 20W Standard: IEC/EN60269-6



IEC/EN60269-6 Standard 1000VDC 40~160A 20KA 25W Adler AS0 gPV NH0 Blade Fuses



NH0 Blade Fuses AS0_datasheet_20161109.pdf





Description



  • The AS0 series fuse links are made according to specifications for use with rated working voltage of 1000V DC and rated working currents of 40~160A for overload or short circuit protection.
  • The fuse body shape for the square tube, internal variable load made of pure silver belt surface conductor, encapsulated in the ceramic tube of high temperature resistant, high strength, and pack enough high silicon quartz sand as fillers, arcing medium role.
  • This series fuse to protect and isolate PV junction box and isolating switch.These fuse breaking failure PV array (reverse current, line array fault) produced by low overload current.





Feature



  1. Rated Voltage: 1000V DC, class gPV
  2. Rated Current: 40~160A
  3. Rated Breaking Capacity: 20 kA
  4. Max. Dissipation: 25W
  5. Standard: IEC/EN60269





ELECTRICAL SPECIFICATIONS



Part Number Rated Current I2T(A2s) Max.Dissipation(W)
Pre-Arc

Total@

Rated

Voltage

70% In 100% In
AS02400700 40A 105 760 16 25
AS02500700 50A 215 1550 16 25
AS02630700 63A 380 2750 16 25
AS02800700 80A 815 5900 16 25
AS03100700 100A 1550 11500 16 25
AS03125700 125A 3000 22000 16 25
AS03160700 160A 6250 45000 16 25





Dimension







TIME/ CURRENT (I-T) CHART (reference) & CURRENT LIMITING-CURRENT (reference)







MATCHING FUSE HOLDERS/ ACCESSORIES:

  Holders NH0 Series.
