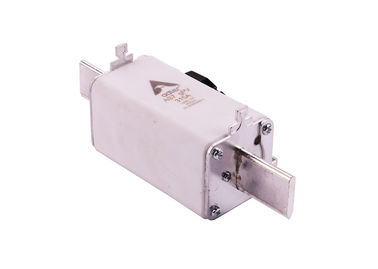

IEC60269 AS8 gPV NH3L Class gPV Cylindrical Fuse Links 1000VDC 65W 125~400A 30KA

Large Image :  IEC60269 AS8 gPV NH3L Class gPV Cylindrical Fuse Links 1000VDC 65W 125~400A 30KA

Product Details:

Place of Origin: Germany/China
Brand Name: ADLER
Certification: IEC etc.
Model Number: AS8 gPV NH3L

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Packaging Details: Bulk
Delivery Time: 4 WEEKS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5000,000PCS
Detailed Product Description
Product Name: Class GPV Cylindrical Fuse Links Rated Voltage: 1000V DC, Class GPV
Rated Current: 125~400A Rated Breaking Capacity: 30KA
Max. Dissipation: 65W Standard: IEC60269



IEC60269 AS8 gPV NH3L Class gPV Cylindrical Fuse Links 1000VDC 65W 125~400A 30KA



Cylindrical Fuse Links AS8_datasheet_20161109.pdf





Description



  • The AS8 series fuse links are made according to specifications for use with rated working voltage of 1000V DC and rated working currents of 125~400A for overload or short circuit protection.
  • The fuse body shape for the square tube, internal variable load made of pure silver belt surface conductor, encapsulated in the ceramic tube of high temperature resistant, high strength, and pack enough high silicon quartz sand as fillers, arcing medium role.
  • This series fuse to protect and isolate PV junction box and isolating switch.These fuse breaking failure PV array (reverse current, line array fault) produced by low overload current.





Feature



  1. Rated Voltage: 1000V DC, class gPV
  2. Rated Current: 125~400A
  3. Rated Breaking Capacity: 30 kA
  4. Max. Dissipation: 65W
  5. Standard: IEC60269





ELECTRICAL SPECIFICATIONS



Part Number Rated Current I2T(A2s) Max.Dissipation(W)
Pre-Arc

Total@

Rated

Voltage

70% In 100% In
AS83250700 250A 22000 95000 75 100
AS83315700 315A 27720 119700 75 100
AS83350700 350A 30800 133000 75 100
AS83450700 450A 39600 17100 75 100
AS83500700 500A 44000 190000 75 100
AS83630700 630A 55440 239400 75 100





Dimension







TIME/ CURRENT (I-T) CHART (reference) & CURRENT LIMITING-CURRENT (reference)







MATCHING FUSE HOLDERS/ ACCESSORIES:

  Holders NH3L/NH2XL Series.
