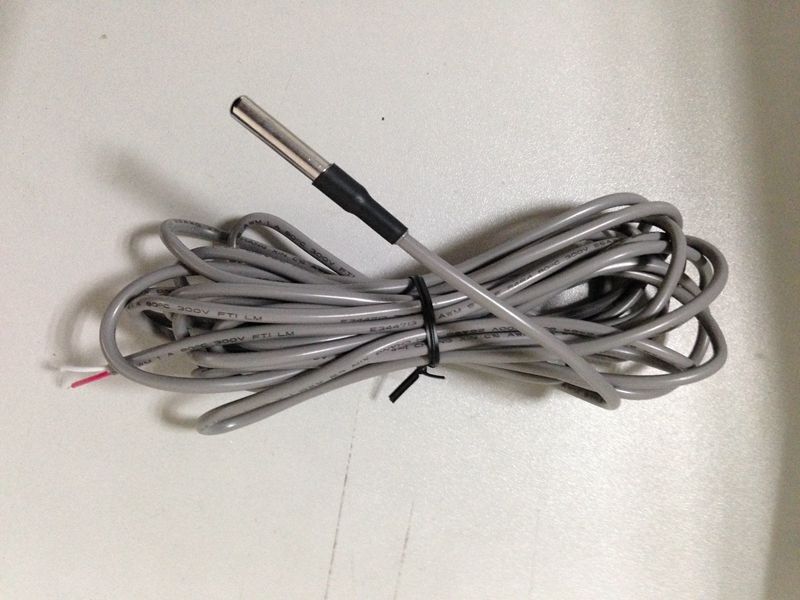

NTC Thermistor Sensor Assembles CIG For Temperature Measuring And Control

NTC Thermistor Sensor Assembles CIG For Temperature Measuring And Control

Product Details:

Place of Origin: Dongguan,Guangdong,China
Brand Name: UCHI
Certification: ISO,ROHS
Model Number: CIG 203F420L250#24BT

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Bulk
Delivery Time: 7 workdays
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 50000000pcs/month
Get Best Price Contact Now

Detail Information

High Light:

thermocouple temperature sensor

,

ntc probe temperature sensor

Product Description

NTC Thermistor Sensor Assembles CIG For Temperature Measuring And Control


Specifications

1. Electronics specifications
R25: 200K Ohm +/-1%
B 25/85 : 4200k+/-1%
Operating Temperature : -40~250degree
Dissipation constance : >= 5mW/C
Storage Temperature : -40~250degree
Thermal time constant :  in stirred water , 90% response          <=6 sec MAX

2. Overall dimensions
NTC Thermistor Sensor Assembles CIG For Temperature Measuring And Control 0


3. Environment Test

 ITEMCONDITIONSSPECSPEC
3-1High temperature storage125deg(AIR) 1000Hrs

△R25
△B25/85

+/-1%<3%
+/-1%<2%

3-2Low temperature storage-40deg(AIR)   1000Hrs

△R25
△B25/85

+/-1%<3%
+/-1%<2%

3-3High humidity storage40deg/95%/240Hrs

△R25
△B25/85

+/-1%<3%
+/-1%<2%

3-4Thermal shock-40deg~125deg/5 cycles

△R25
△B25/85

+/-1%<3%
+/-1%<2%



4. Inspection conditions

4-1 Sampling method : Apply to MIL-STD-05D
4-2 Level : Level 1 , AQL 1%
4-3 Check point and method

Check pointTest methodGrade
Appearance and dimensionRefer to 5-2Important
Electrical characteristicsRefer to 5-3Very important
Mechanical characteristicsRefer to 5-4Very important
Environment testRefer to 5-5Very important

* Follow the special specification if another check point required .
5. R-T Table
5-1 R-T CHART
NTC Thermistor Sensor Assembles CIG For Temperature Measuring And Control 1
NTC Thermistor Sensor Assembles CIG For Temperature Measuring And Control 2
For further info,pls contact us ! Thank you !
