Blue 7mm 07D471K Surge Suppressor Varistor 300VAC For Line-Ground

Blue 7mm 07D471K Surge Suppressor Varistor 300VAC For Line-Ground

Product Details:

Place of Origin: Dongguan,Guangdong,China
Brand Name: UCHI
Certification: UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL
Model Number: 07D471K

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Negotiable
Packaging Details: Bulk/Ammo/Reel
Delivery Time: 5-7 days
Payment Terms: T/T,Paypal,Western Union,Money gram
Supply Ability: 5000,000,000PCS Per Month
Get Best Price Contact Now

Detail Information

High Light:

silicon carbide varistor

,

clamping voltage varistor

,

surge suppressor varistor 300vac

Product Description

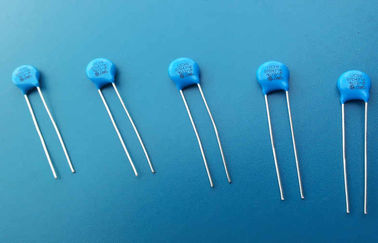

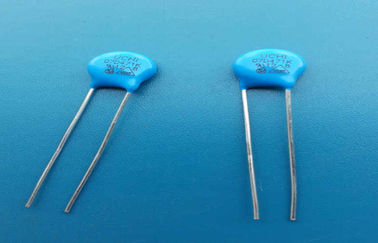

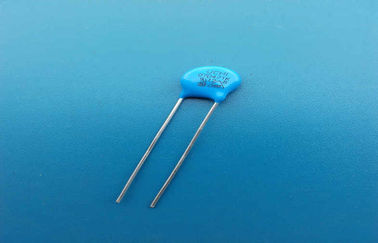

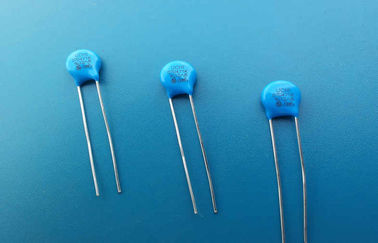

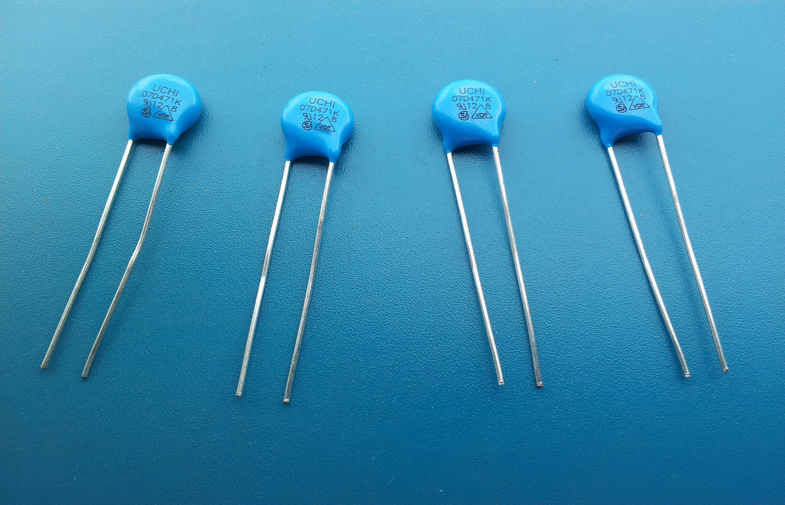

Blue 7mm 07D471K Surge Suppressor Varistor 300VAC For Line-Ground





Quick Detail:



   ITEM    VALUE
 Description     Metal Oxide Varistor 07D471K
 Max. Vm(ac)  300V
 Max. Vm(dc)  385V
 Energy (2ms)(J)    30
 Rated Watt.(W)  0.25W
 Max. Clamping V/A  775V
 Varistor Volt.(VlmA)  470Vdc
   Weight  1.2g/pc

• Wide voltage range selection - from 14 VRMS to 680 VRMS.This allows easy selection of the correct component for the specific application.

• High energy absorption capability with respect to size of component.

• Response time of less than 20 ns, clamping the transient the instant it occurs.

• Low stand-by power - virtually no current is used in the stand-by condition.

• Low capacitance values, making the varistors suitable for the protection of digital switching circuitry.

• High body insulation - an ochre coating provides protection up to 2500 V, preventing short circuits to

adjacent components or tracks.

• Available on tape with accurately defined dimensional tolerances, making the varistors ideal for automatic

insertion.

• Approved to UL 1449 edition 3 (file number: E332800) and manufactured using UL approved flame retardant materials.

• Completely non flammable, in accordance with IEC, even under severe loading conditions.

• Non porous lacquer making the varistors safe for use in humid or toxic environments. The lacquer is also resistant to cleaning solvents in accordance with IEC 60068-2-45.





Description:



Varistors provide reliable and economical protection against high voltage transients and surges which may be produced,for example, by lightning, switching or electrical noise on AC or DC power lines. They have the advantage over transient suppressor diodes in as much as they can absorb much higher transient energies and can suppress positive and negative transients.When a transient occurs, the varistor resistance changes from a very high stand-by value to a very low conducting value. The transient is thus absorbed and clamped to a safe level, protecting sensitive circuit components.Varistors are manufactured from a non-homogeneous material, giving a rectifying action at the contact points of two particles. Many series and parallel connections determine the voltage rating and the current capability of the varistor





Applications:



Varistors may be used in many applications, including:

• Computers

• Timers

• Amplifiers

• Oscilloscopes

• Medical analysis equipment

• Street lighting

• Tuners

• Televisions

• Controllers

• Industrial power plants

• Telecommunications

• Automotive

• Gas and petrol appliances

• Electronic home appliances

• Relays

• Broadcasting

• Traffic facilities

• Electromagnetic valves

• Railway distribution/vehicles

• Agriculture

• Power supplies

• Line ground (earth protection)

• Microwave ovens

• Toys, etc.





Specifications:



Part Number

Vac(V)

Vdc(V)

V1mA(A)

Ip(A)

Vc(V)

I(A)Standard

I(A)High Surge

(J)Standard

(J)High Surge

Rated power(W)

C@1KHz(pf)

07D180K(J)

11

14

18(15-21.6)

2.5

36

250

500

0.9

2.0

0.02

2800

07D220K(J)

14

18

22(19.5-26)

2.5

43

250

500

1.1

2.4

0.02

2300

07D270K(J)

17

22

27(24-31)

2.5

53

250

500

1.4

3.0

0.02

1800

07D330K(J)

20

26

33(29.5-36.5)

2.5

65

250

500

1.7

3.5

0.02

1500

07D390K(J)

25

31

39(35-43)

2.5

77

250

500

2.1

4.0

0.02

1300

07D470K(J)

30

38

47(42-52)

2.5

93

250

500

2.5

5.0

0.02

1100

07D560K(J)

35

45

56(50-62)

2.5

110

250

500

3.1

6.0

0.02

890

07D680K(J)

40

56

68(61-75)

2.5

135

250

500

3.6

7.0

0.02

740

07820K(J)

50

65

82(74-90)

10

135

1200

1750

5.5

10

0.25

600

07D101K(J)

60

85

100(90-110)

10

165

1200

1750

6.5

12

0.25

500

07D121K(J)

75

100

120(108-132)

10

200

1200

1750

7.8

13

0.25

420

07D151K(J)

95

125

150(135-165)

10

250

1200

1750

9.7

13

0.25

330

07D181K(J)

115

150

180(162-198)

10

300

1200

1750

11.7

16

0.25

280

07D201K(J)

130

170

200(180-220)

10

340

1200

1750

13

17

0.25

250

07D221K(J)

140

180

220(198-242)

10

360

1200

1750

14

19

0.25

23007D

07D241K(J)

150

200

240(216-264)

10

395

1200

1750

15

21

0.25

210

07D271K(J)

175

225

270(243-297)

10

455

1200

1750

18

24

0.25

185

07D301K(J)

190

250

300(270-330)

10

500

1200

1750

20

26

0.25

165

07D331K(J)

210

275

330(297-363)

10

550

1200

1750

23

28

0.25

150

07D361K(J)

230

300

360(324-396)

10

595

1200

1750

25

32

0.25

140

07D391K(J)

250

320

390(351-429)

10

650

1200

1750

25

35

0.25

130

07D431K(J)

275

350

430(387-473)

10

710

1200

1750

28

40

0.25

115

07D471K(J)

300

385

470(423-517)

10

775

1200

1750

30

42

0.25

105

07D511K(J)

320

415

510(459-561)

10

845

1200

1750

30

45

0.25

100

07D561K(J)

350

460

560(504-616)

10

925

1200

1750

30

49

0.25

90

07D621K(J)

385

505

620(558-682)

10

1025

1200

1750

33

55

0.25

80

07D681K(J)

420

560

680(612-748)

10

1120

1200

1750

33

60

0.25

75

07D751K(J)

460

615

750(675-825)

10

1240

1200

1750

67.2

65

0.25

70

07D781K(J)

485

640

780(702-858)

10

1290

1200

1750

67.2

65

0.25

70

07D821K(J)

510

670

820(738-902)

10

1355

1200

1750

67.2

70

0.25

60






Competitive Advantage:,



  1. Factory supply directly
  2. Completed certificates such as UL,VDE,SGS,etc and high quality available
  3.  Quick delivery
  4. Best after-sales services
  5. OEM & ODM available
