Name: 2410 Surface Mount Fuse Size: 6.1x2.5x2.5mm
Packaging: Surface Mount Listed: UL 248-14
Rated Current: 1A Rated Voltage: 250V
Melting Speed: Fast Acting Design: Wire Core SMD
High Light:

slow blow glass fuse

,

radial lead fuse

Product Description

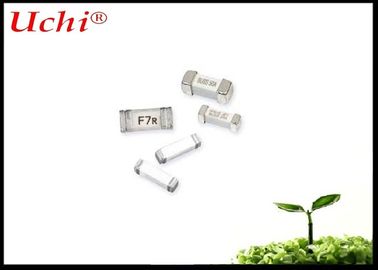

Wire Core SMD Design Fast Acting SinglFuse 2410 Surface Mount Fuses (6125 metric) F1A250V For Overcurrent Protection





Features



* Single blow fuse for overcurrent protection
* 6125 (EIA 2410) footprint
* Fast acting precision
* UL 248-14 listed
* RoHS compliant* and halogen free**
* Wire core SMD design
* Surface mount packaging for automated assembly





Approvals



Agency Ampere Range Agency File Number
UL 50mA ~ 7A E340427(JDYX2)
CUL 50mA ~ 7A E340427(JDYX8)
CQC 500mA/1A/2A CQC18012206754
ROHS 6125 Series SZC18111684512
REACH 6125 Series SZC18030584513-3





Size (mm)



Wire Core SMD Design 2410 Surface Mount Fuses 6125 Metric F1A250V For Overcurrent Protection 0





Cutoff Timeline



% of Ampere Rating(In) Blowing Time
100% * In 4 hours Min
200% * In 120 sec Max





Part numbering



Catalog Ampere Voltage Breaking Nominal Cold I2TMelting
No. Rating Rating Capacity Resistance(Ohms) Integral(A2.S)
SSF0250 250mA 300VAC 50A@300VAC 50A@250VAC 200A@125VAC 0.86 0.145
SSF0300 300mA 0.62 0.162
SSF0315 315mA 0.55 0.189
SSF0375 375mA 0.47 0.2
SSF0400 400mA 0.38 0.238
SSF0500 500mA 0.32 0.275
SSF0600 600mA 0.285 0.47
SSF0630 630mA 0.256 0.566
SSF0700 700mA 0.208 0.805
SSF0750 750mA 0.175 1.24
SSF0800 800mA 0.155 1.88
SSF1100 1A 0.148 3.5
SSF1125 1.25A 0.102 4.76
SSF1150 1.5A 0.085 6.305
SSF1200 2A 0.044 8.95
SSF1250 2.5A 0.043 16.025
SSF1300 3A 0.033 21.56
SSF1315 3.15A 0.029 22.75
SSF1350 3.5A 0.027 27.05
SSF1400 4A 0.025 31.808
SSF1500 5A 0.019 40.25
SSF1600 6A 0.018 67.245
SSF1630 6.3A 0.017 73.55
SSF1700 7A 0.015 76.28





Application



$ LCD / LED TVs

$ White goods

$ PC servers

$ LCD monitors

$ DC/DC converters

$ DC/AC inverters

$ Notebooks / ultrabooks

$ Telecom systems

$ Chargers





Reliability Test



NO. Item Content Reference standards
1 Product Marking Brand, Ampere Rating Marking standards
2 Operating Temperature -55°C to 125°C IEC60068-2-1/2
3 Solderability T=240°C±5°C , t=3sec±0.5sec, Coverage≥95% MIL-STD-202, Method 208
4 Resistance to Soldering Heat 10 sec at 260°C MIL-STD-202, Method 210, Test condition B
5 Insulation Resistance (after Opening) 10,000 ohms minimum MIL-STD-202, Method 302, Test Condition A
6 Thermal Shock 5 cycles, -65°C / +125°C, 15 minutes at each extreme MIL-STD-202, Method 107, Test Condition B
7 Mechanical Shock 100G’s peak for 6 milliseconds, 3cycles MIL-STD-202, Method 213, Test I
8 Vibration 0.03”amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs MIL-STD-202, Method 201
9 Moisture Resistance 10 cycles MIL-STD-202, Method 106
10 Salt Spray 5% salt solution, 48hrs MIL-STD-202, Method 101, Test Condition B
